What is the Tenshine TS-L6538?

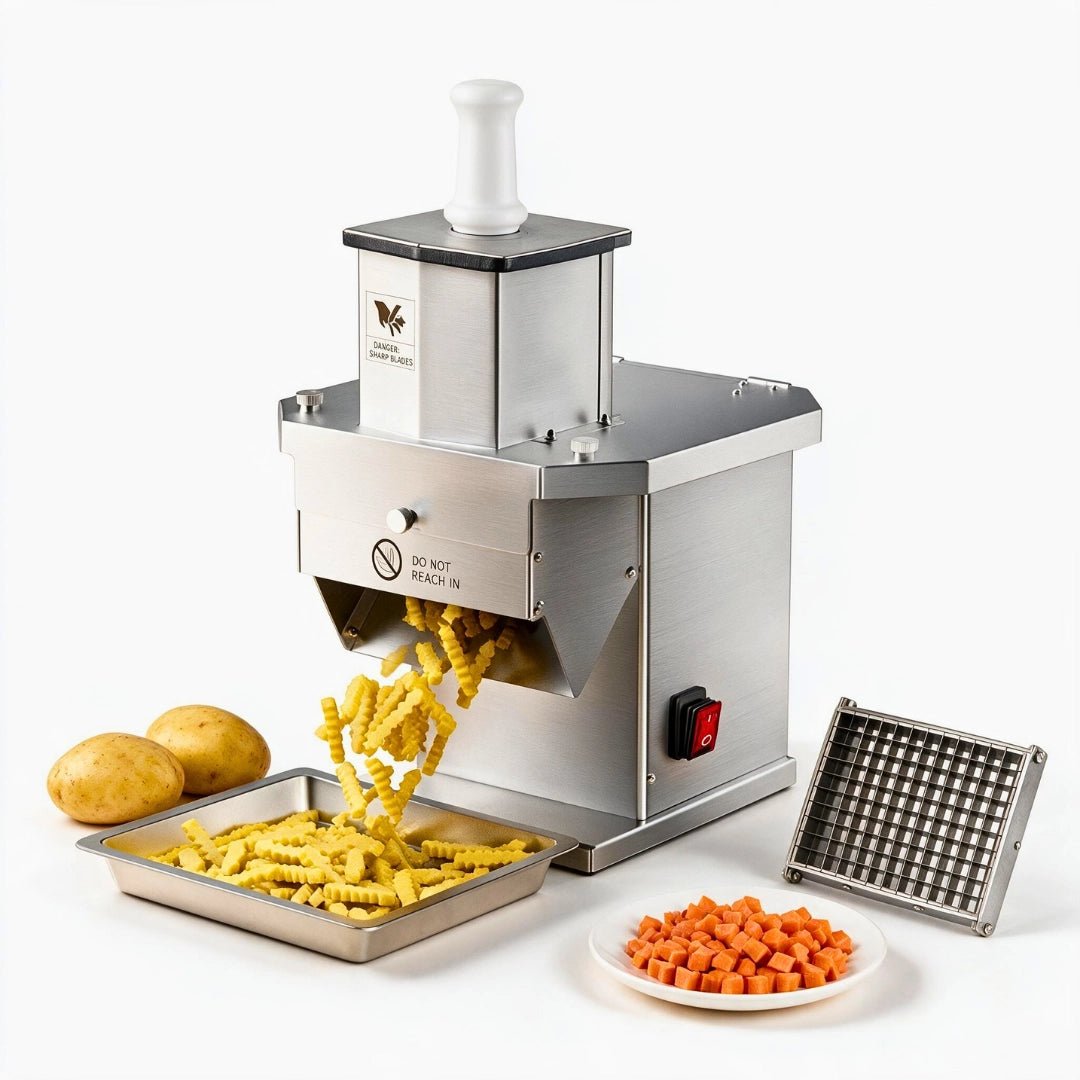

The Tenshine TS-L6538 is a heavy-duty commercial electric vegetable dicer, crinkle cut french fry cutter, and commercial onion chopper machine engineered for high-volume restaurants, burger joints, pizzerias, and commissary kitchens. Driven by a 200W (200 RPM) high-torque pure copper DC motor (available in 110V–120V US standard and 220V–240V configurations), it delivers a verified throughput of 606 lbs/hr (275 kg/hr) for crinkle fries and 474 lbs/hr (215 kg/hr) for uniform dicing. Equipped with an oversized 4.3" × 4.1" (110 × 105 mm) vertical feed chute for whole jumbo potatoes, food-grade 304 stainless steel contact zones, and 0.04" (1.0 mm) thickened 420 stainless steel modular blade grids (in 3/8" [10mm] crinkle, 1/2" [12mm] crinkle, and 5/16" [8×8mm] dicing sizes) with individually replaceable blade strips, it slashes daily kitchen prep labor by 80% and cuts long-term blade replacement costs by 75%.
Stop Wasting Paid Kitchen Labor on Manual Pre-Cutting and Fragile Lever Cutters.
In a busy QSR or commercial kitchen, prepping 50 lbs of fresh potatoes or onions with a wall-mounted manual french fry cutter takes over 45 minutes of exhausting physical labor—mostly spent halving jumbo potatoes just to fit a tiny chamber. Worse, when a single blade snaps on a traditional grid, you are forced to spend $150+ replacing the entire assembly.
The Tenshine TS-L6538 Commercial Electric Vegetable Dicer & Crinkle Cut French Fry Cutter eliminates prep bottlenecks:
- Zero Pre-Cutting Required: Drop whole, unpeeled or peeled jumbo potatoes straight into the 4.3" × 4.1" (110 × 105 mm) oversized vertical feed chute. Prep a 50 lb sack of crinkle fries in under 5 minutes.
- Slash Consumable Costs by 75%: Built with 0.04" (1.0 mm) thickened 420 martensitic stainless steel, our modular blade grids let you unbolt and swap a single damaged blade strip in minutes instead of discarding the whole frame.
- Crisp, Juice-Free Cuts: Unlike high-speed food processors that turn vegetables into mush, our 200 RPM gear-driven rotary slicer and slide-out grid shear cleanly through dense potatoes, sweet potatoes, carrots, bell peppers, and onions without bruising.

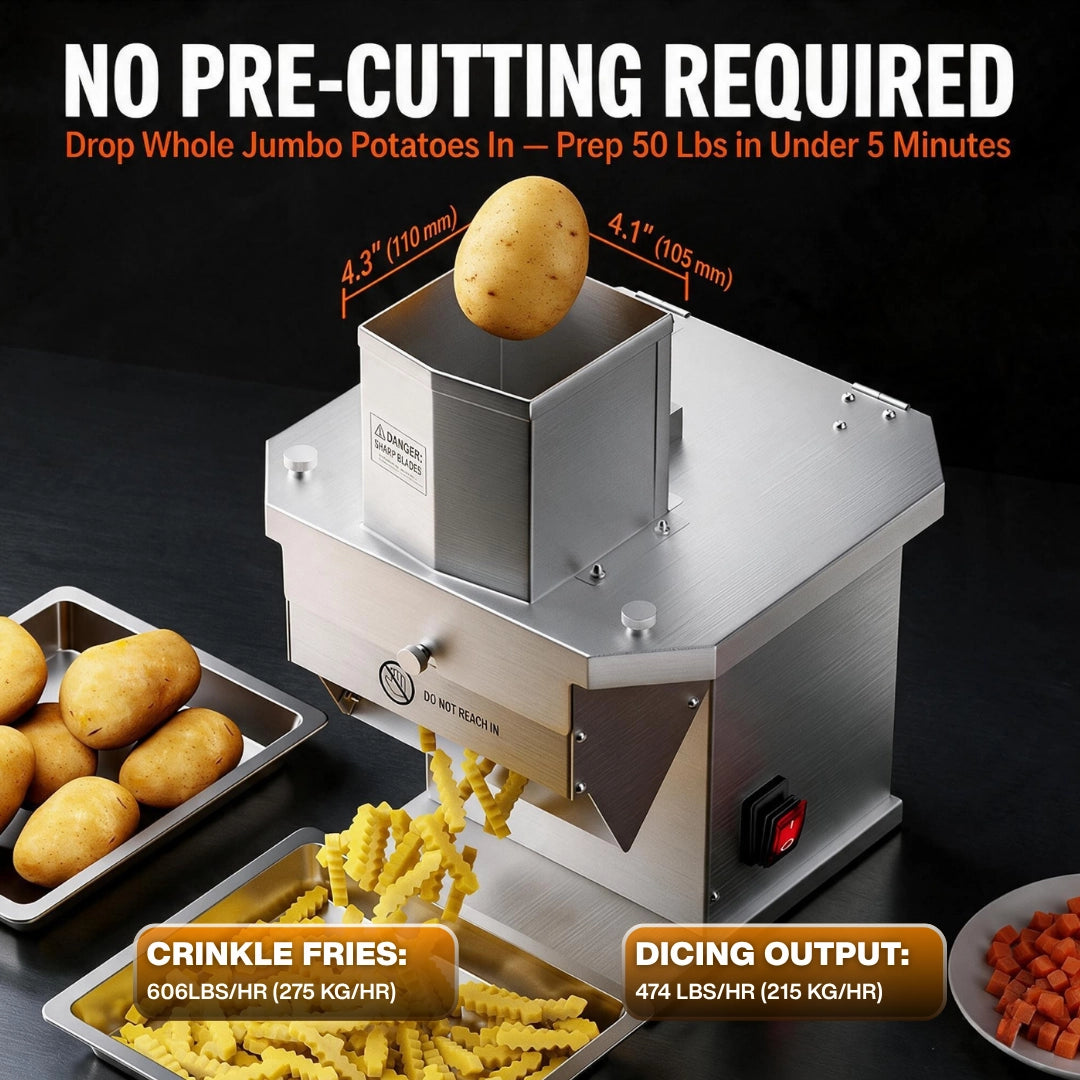

1. Oversized 4.3" × 4.1" Feed Chute & 606 lbs/hr High-Speed Output Built as a true commercial french fries cutting machine, the TS-L6538 features an extra-wide 4.3" × 4.1" (110 × 105 mm) 304 stainless steel feed cylinder with an internal adjustable baffle plate.
- Crinkle-Cut Fry Output: Up to 606 lbs/hr (275 kg/hr) using the 3/8" (10 mm) or 1/2" (12 mm) wave blade grids.
- Uniform Square Dicing Output: Up to 474 lbs/hr (215 kg/hr) using the 5/16" (8 × 8 mm) square dicing grid—making it the ultimate commercial onion chopper, pepper dicer, and potato cuber.
- Gravity-Assisted + Safety Pusher Feed: Heavy vegetables drop smoothly into the cutting chamber; use the included wide-baffle food-grade safety pusher to guide light or oversized produce evenly with zero hand contact.

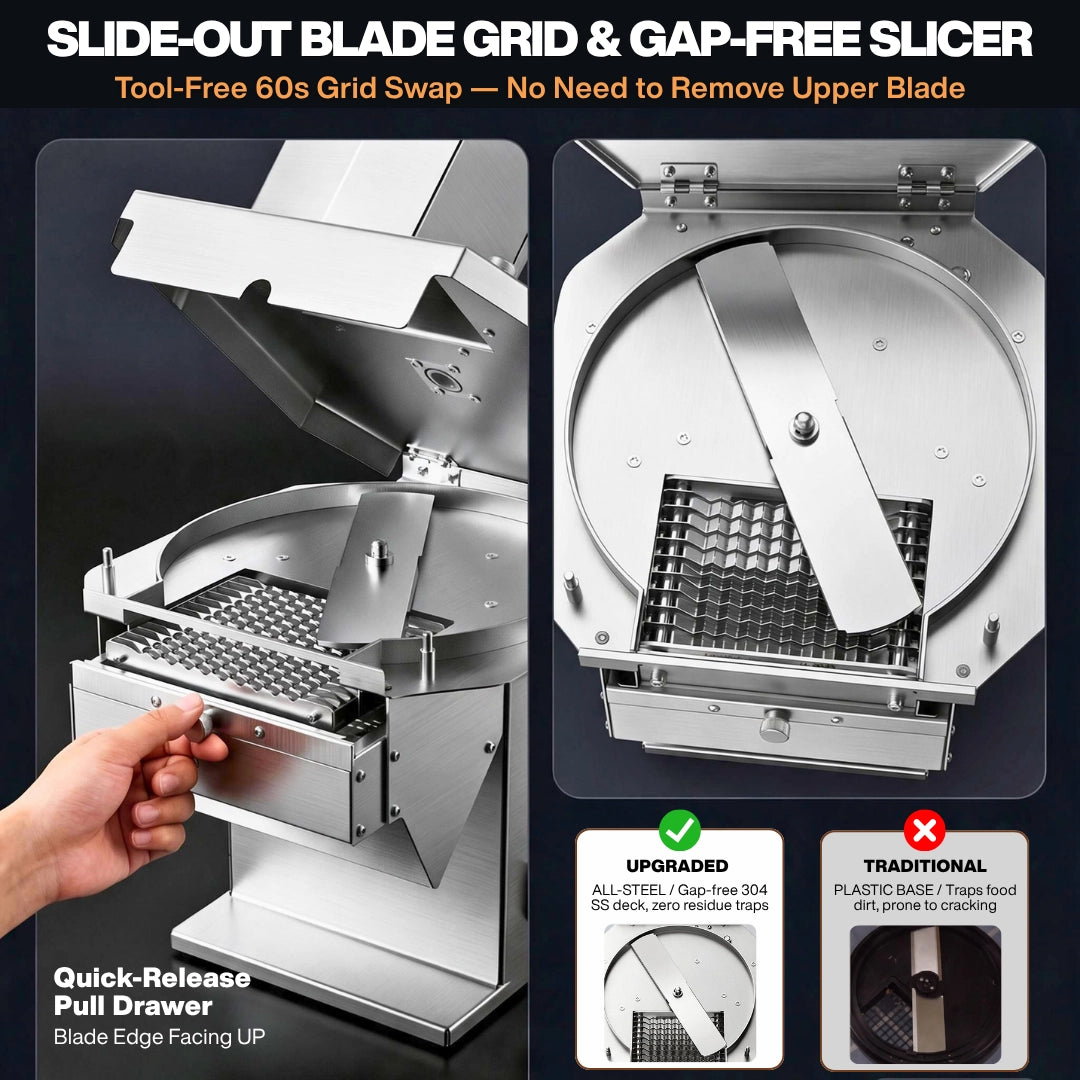

2. 60-Second Slide-Out Blade Drawer & Gap-Free 304 SS Rotary Slicer Switching between crinkle-cut fries and diced salsa veggies takes less than a minute:
- Loosen the two upper cover thumb nuts and flip open the hinged 304 stainless steel safety cover.
- Pull the front quick-release drawer knob to slide the lower blade grid straight out—no tools required, and no need to unbolt the upper rotary slicing blade.
- Slide in your next grid (ensure the sharp blade edge faces UP), push the drawer fully home, and lock the cover.
- Sanitary All-Steel Slicing Deck: Unlike cheap electric vegetable choppers that use cracked plastic blade bases that trap rotting food residue, our internal cutting deck and gap-free rotary slicer are forged from solid 304 stainless steel for effortless sink rinsing.

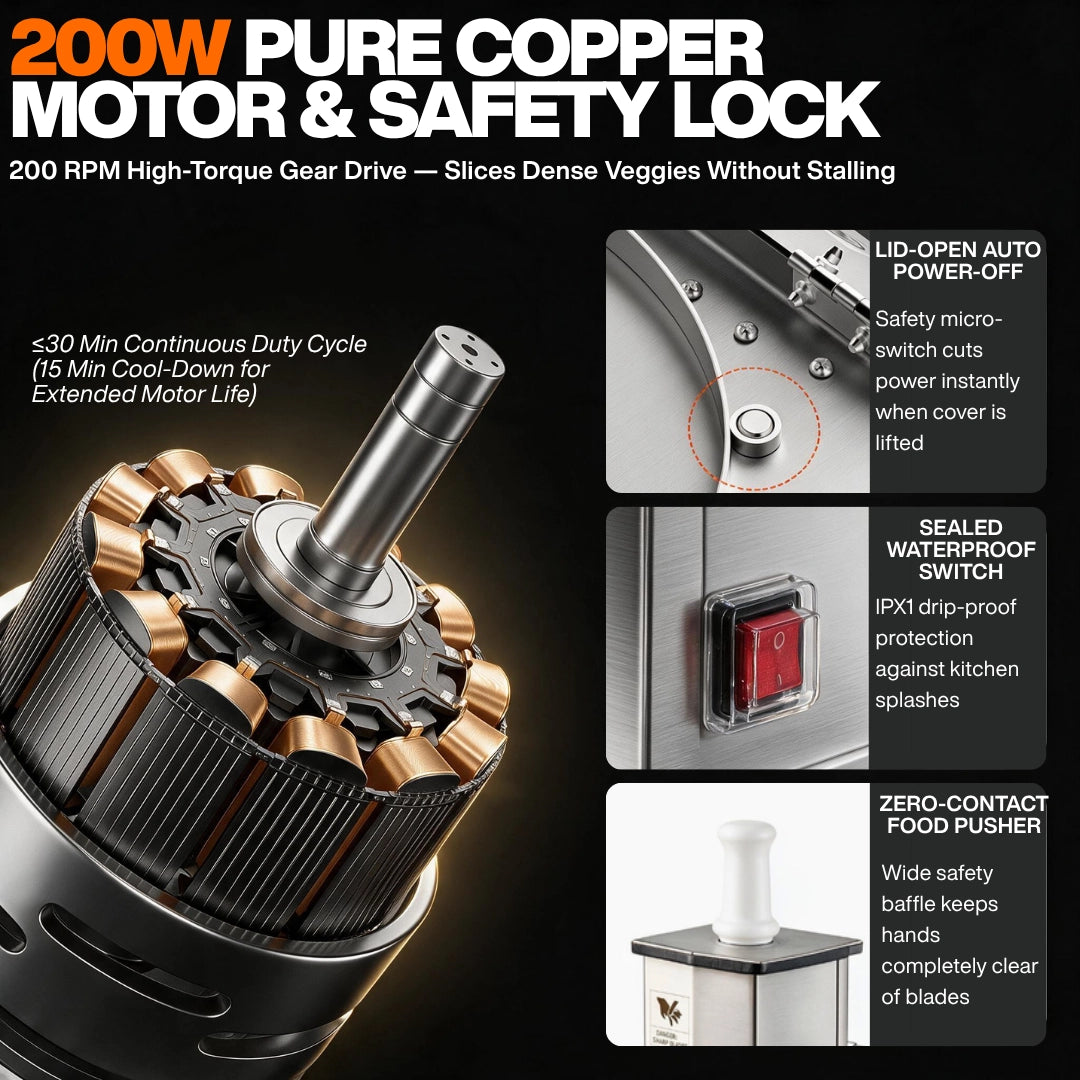

3. 200W High-Torque Pure Copper Motor & Triple Operator Safety
- 200 RPM High-Torque Gear Drive: Powered by a heavy-duty 200W pure copper DC motor, delivering relentless torque to power through dense root vegetables without stalling.
- Lid-Open Auto Power-Off: An integrated safety micro-switch instantly cuts electrical power the moment the upper cover is unlatched or lifted. Furthermore, if the slide-out blade drawer is not pushed completely in, the physical interlock prevents the lid from closing.
- IPX1 Sealed Rocker Switch: Side-mounted power switch is encased in a transparent waterproof silicone boot to prevent kitchen splash shorts.
Why Upgrade to the Tenshine TS-L6538? (Side-by-Side Comparison)
- Hourly Prep Throughput:
Manual Wall/Lever Fry Cutter: ~80–120 lbs/hr (causes severe operator arm fatigue).
Generic Electric Chopper: ~200–300 lbs/hr (prone to stalling on dense root veggies).
✅ Tenshine TS-L6538: 606 lbs/hr (275 kg/hr) for Crinkle Fries | 474 lbs/hr (215 kg/hr) for Uniform Dicing.
- Whole Potato Feeding (Pre-Cutting Labor):
Manual Wall/Lever Fry Cutter: ❌ Must manually cut jumbo potatoes in half first.
Generic Electric Chopper: ❌ Narrow 2.5" chute requires extensive pre-slicing.
✅ Tenshine TS-L6538: Zero Pre-Cutting Required — drop whole jumbo potatoes straight into the 4.3" × 4.1" (110 × 105 mm) giant vertical chute.
- Blade Grid Maintenance & Consumable Cost:
Manual & Generic Cutters: ❌ Welded or riveted frame — if one blade bends or snaps, you must spend $120–$150+ to replace the entire grid assembly.
✅ Tenshine TS-L6538: Modular 0.04" (1.0 mm) 420 Stainless Steel Grid — simply unbolt and replace a single damaged blade strip, slashing long-term consumable costs by 75%.
- Blade Grid Swap Speed:
Manual & Generic Cutters: ❌ Requires screwdrivers, wrenches, or removing the top rotary knife.
✅ Tenshine TS-L6538: 60-Second Tool-Free Slide-Out Drawer — lift the hinged safety cover and pull the front knob to slide grids out without removing the upper slicing blade.
- Internal Slicing Deck Sanitation:
Generic Electric Chopper: ❌ Traditional plastic blade base cracks easily and traps rotting food residue in deep crevices.
✅ Tenshine TS-L6538: Upgraded All-Steel, Gap-Free 304 Stainless Steel Deck — zero residue traps, built for decades of effortless sink rinsing.
- Electrical Compatibility:
Manual Cutter: Manual force only.
✅ Tenshine TS-L6538: Available in both 110V–120V / 60Hz (US Standard Plug) and 220V–240V / 50–60Hz commercial configurations.

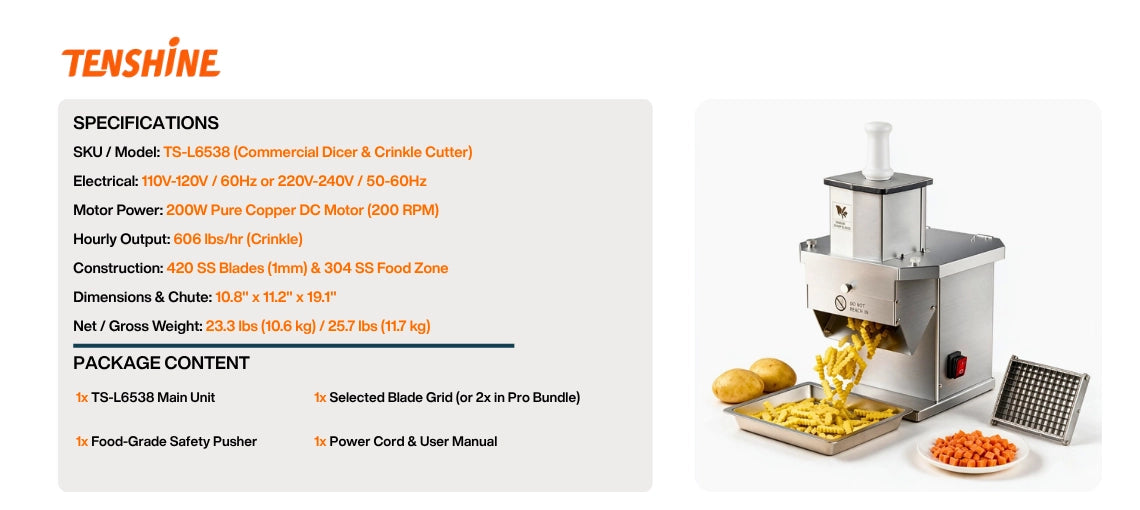

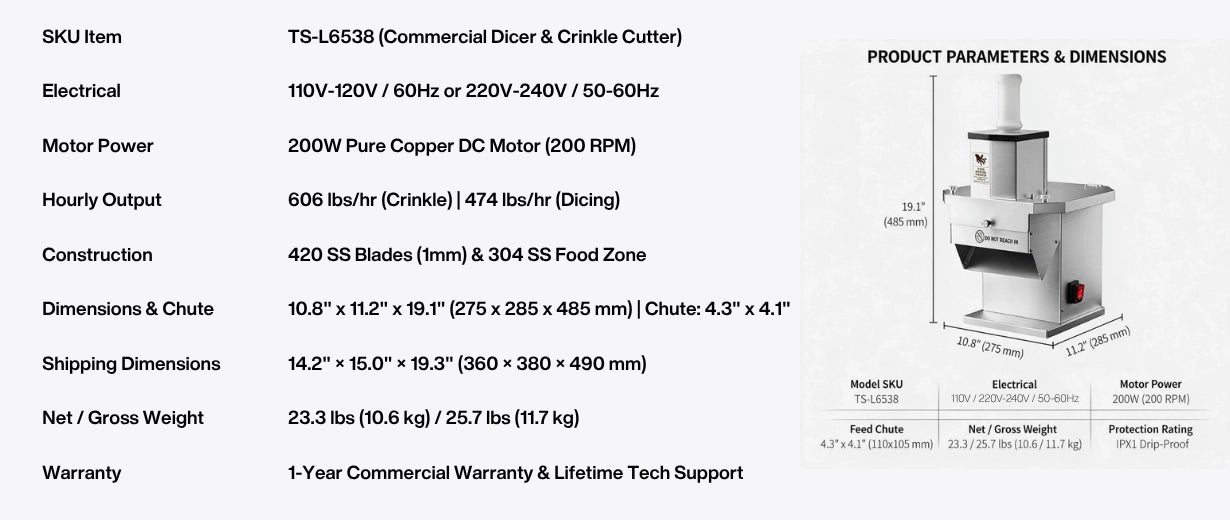

Technical Specifications & Dimensions
- Brand & Model SKU: Tenshine TS-L6538 (Commercial Electric Vegetable Dicer & Crinkle Cut French Fry Cutter)
- Electrical Options: 110V–120V / 60Hz (US Standard) OR 220V–240V / 50–60Hz (1-Phase)
- Motor Power & Drive Speed: 200W Pure Copper DC Motor | 200 RPM High-Torque Gear Drive
- Recommended Duty Cycle: ≤ 30 Minutes Continuous Operation (followed by a 15-minute cool-down break to extend motor lifespan)
- Verified Hourly Output: 606 lbs/hr (275 kg/hr) for Crinkle-Cut Fries | 474 lbs/hr (215 kg/hr) for Square Dicing
- Feed Chute Dimensions: 4.3" × 4.1" (110 × 105 mm) Oversized Vertical Feed Cylinder
- Blade Grid Configurations:
a.3/8" (10 mm) Crinkle-Cut Fry Wave Grid: Included as standard with the main unit.
b.5/16" (8 × 8 mm) Square Vegetable Dicing Grid: Available via Dual-Menu Pro Bundle or Master Prep Combo add-on.
c.1/2" (12 mm) Thick Crinkle-Cut Fry Wave Grid: Available via Dual-Crinkle Bundle or Master Prep Combo add-on.

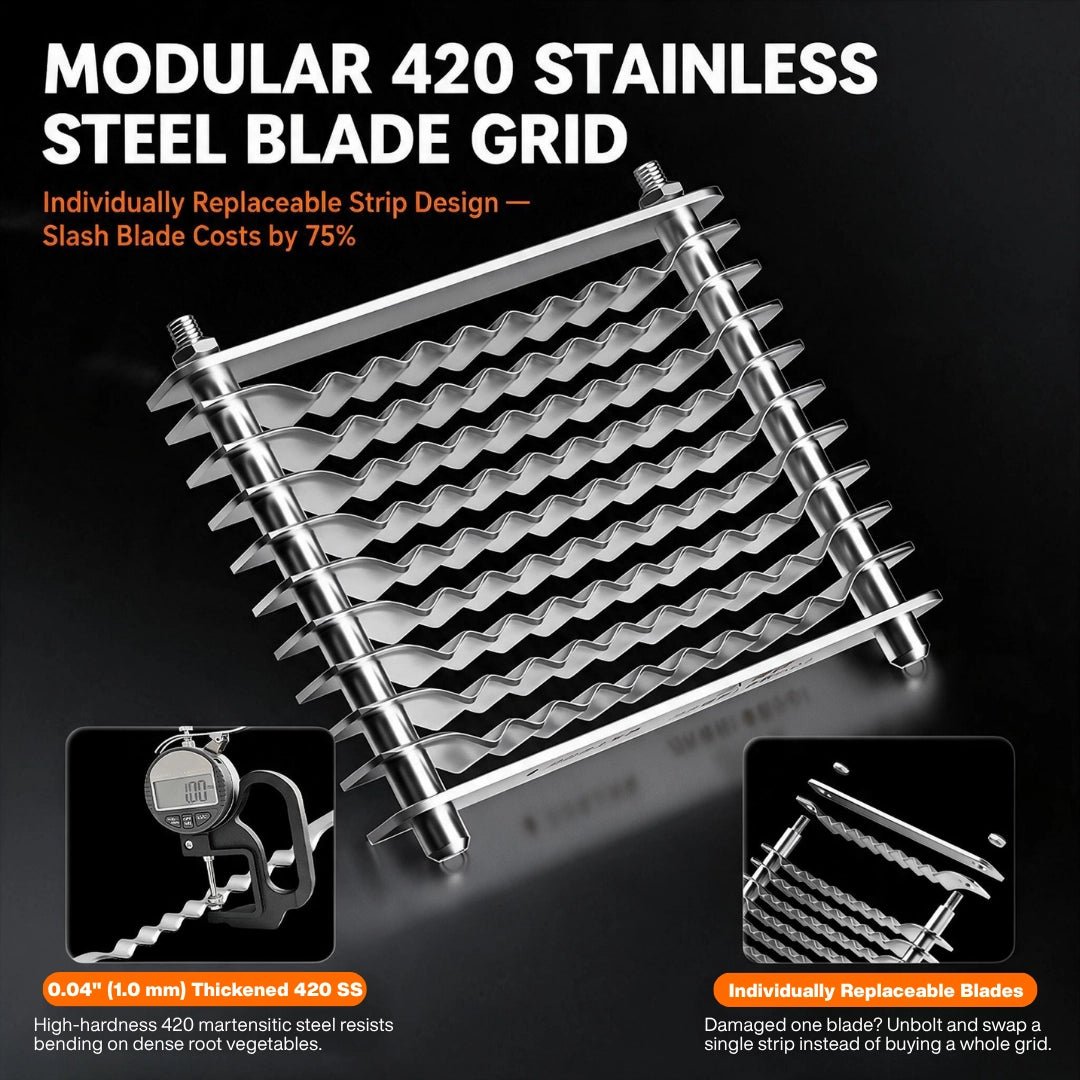

- Blade Material & Thickness: 0.04" (1.0 mm) Thickened 420 Martensitic Stainless Steel (Individually replaceable strips)

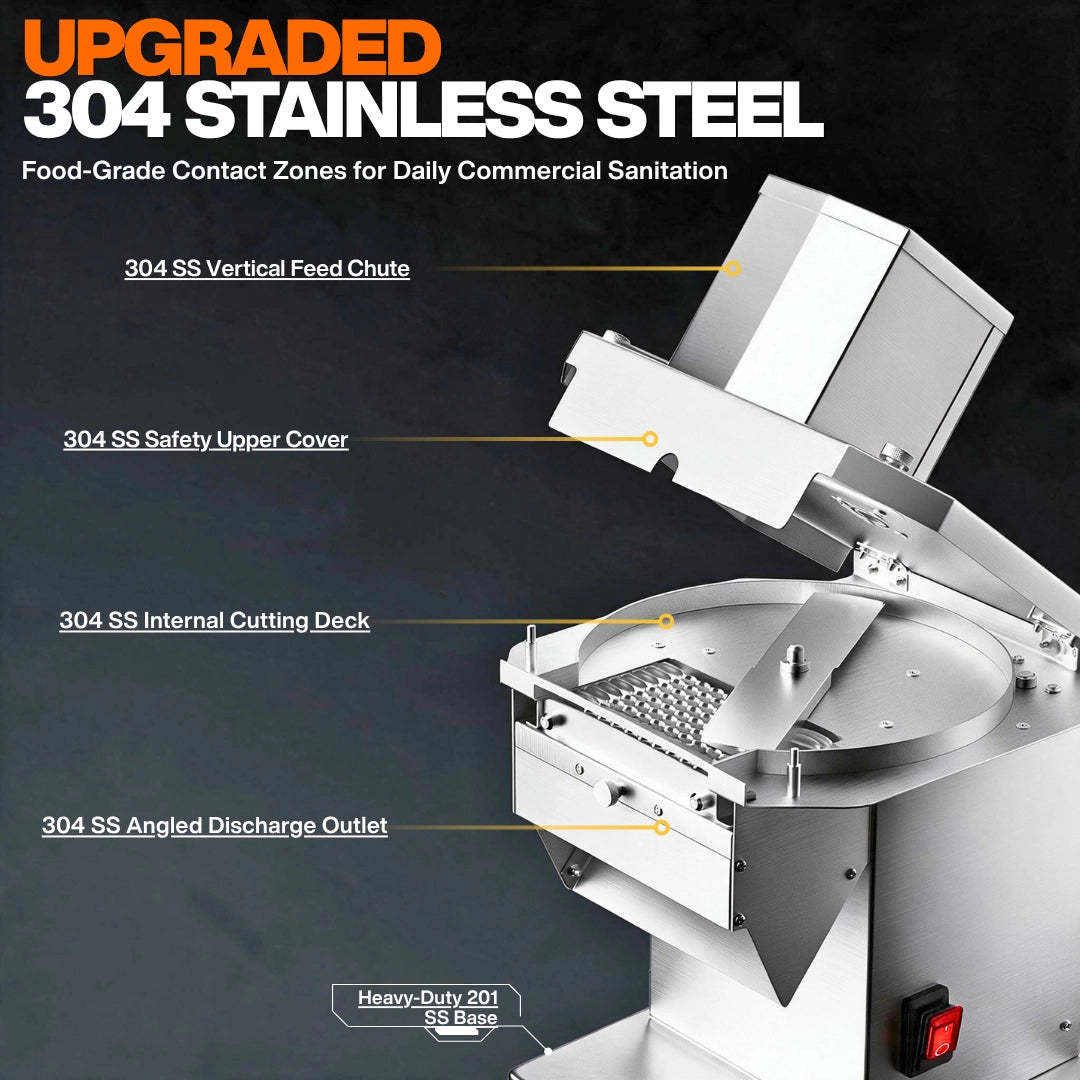

- Food Contact Zones Material: Upgraded Food-Grade 304 Stainless Steel (Vertical feed chute, safety upper cover, internal cutting deck, and angled discharge outlet)
- Main Housing Base: Heavy-Duty Brushed 201 Stainless Steel
- Safety & Protection Features: IPX1 Drip-Proof Rating | Lid-Open Auto Power-Off Micro-Switch | Sealed Waterproof Rocker Switch | Zero-Contact Food Pusher

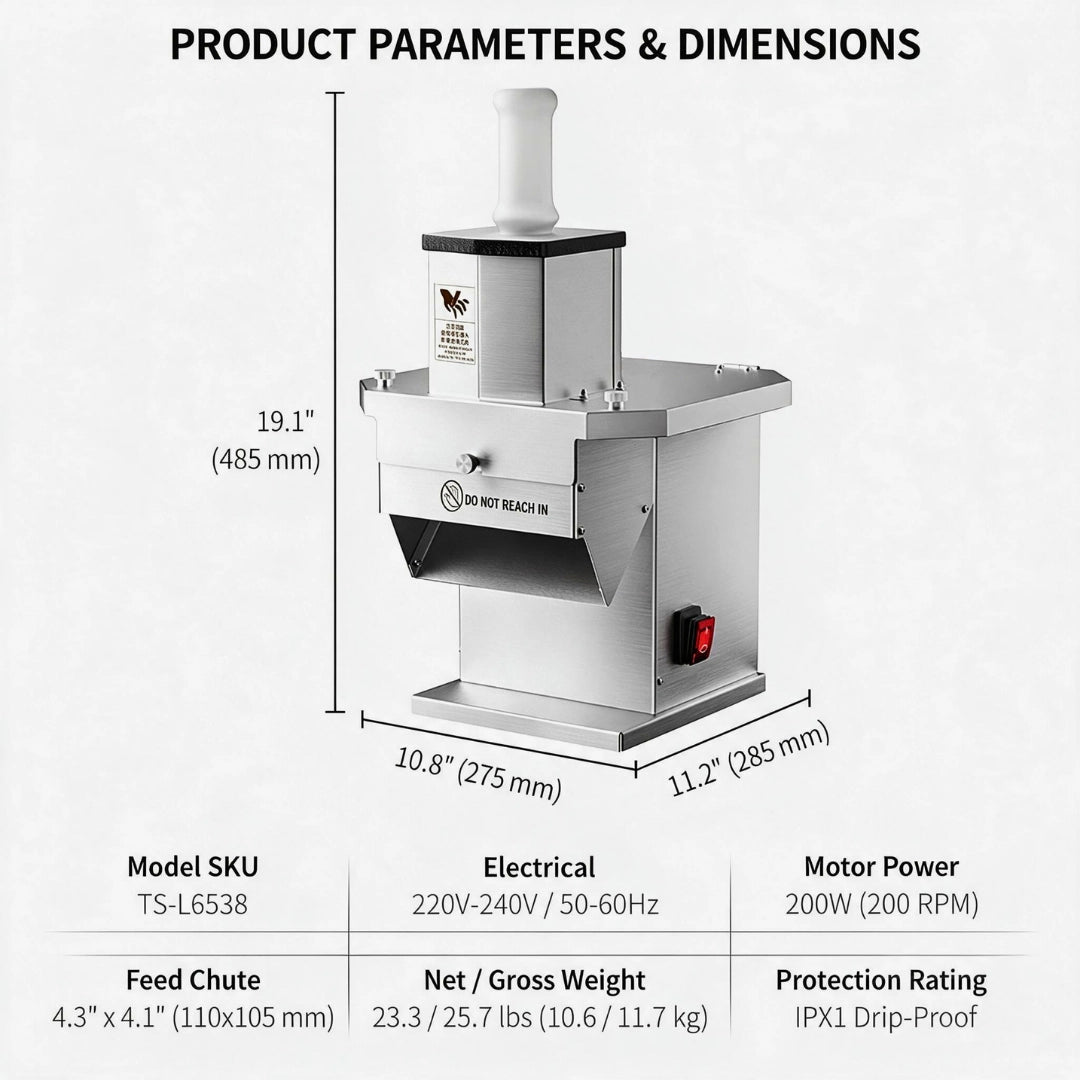

- Overall Unit Dimensions (W × D × H): 10.8" × 11.2" × 19.1" (275 × 285 × 485 mm)
- Shipping Box Dimensions (L × W × H): 14.2" × 15.0" × 19.3" (360 × 380 × 490 mm)
- Net / Gross Weight: 23.3 lbs (10.6 kg) Net | 25.7 lbs (11.7 kg) Gross
- Warranty & Shipping: 1-Year Commercial Warranty, Lifetime Technical Support & 100% Free DDP Shipping for US Orders (All Duties & Taxes Included).

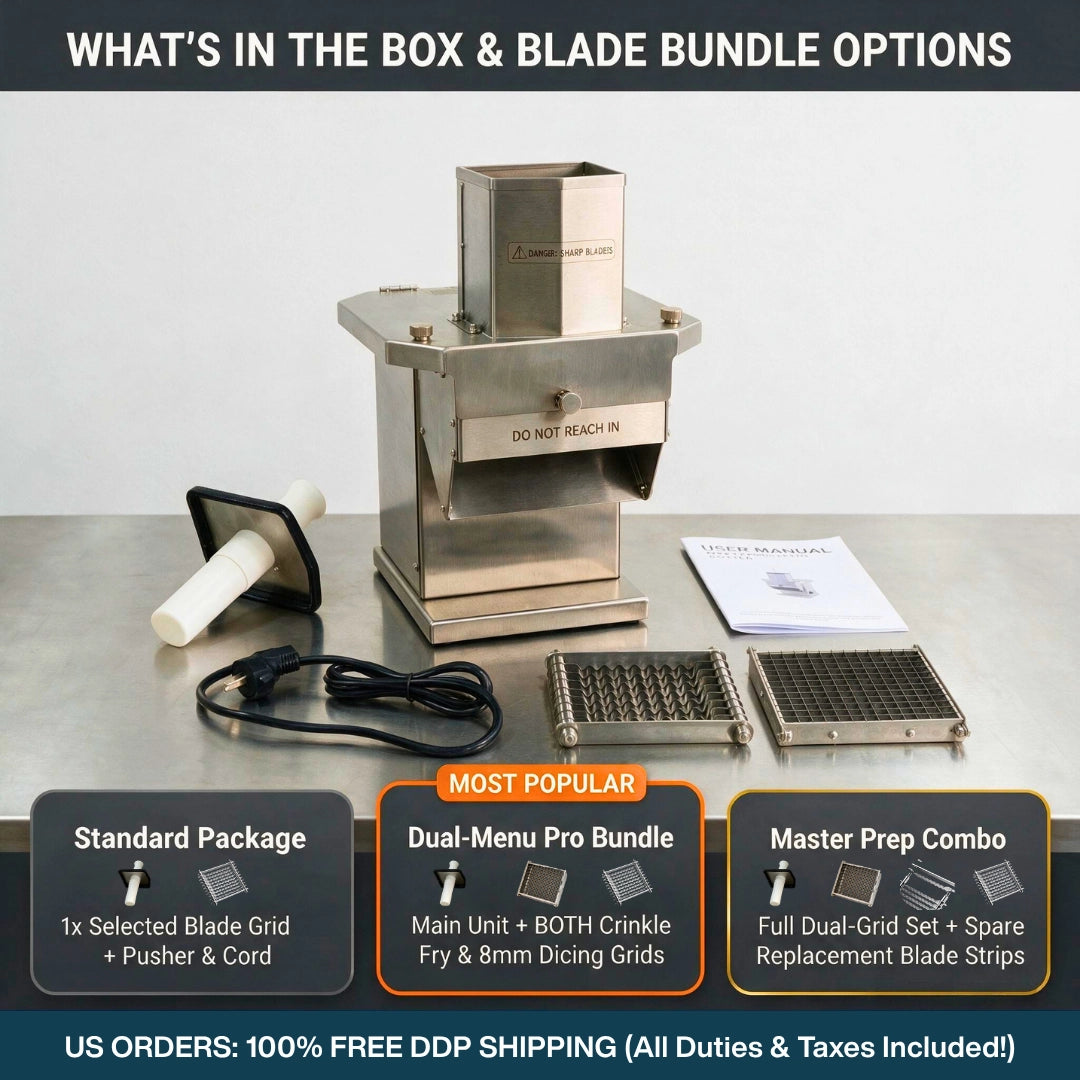

What's in the Box (Package Contents)
- 1× Tenshine TS-L6538 Commercial Electric Vegetable Dicer & Crinkle Cutter Main Unit
- 1× Pre-Installed 3/8" (10 mm) Crinkle-Cut Fry Blade Grid (Standard Package)
- Optional Add-On Blade Grids (Based on Selected Bundle):
Dual-Menu Pro Bundle: Adds 1× 5/16" (8 × 8 mm) Square Dicing Grid (2 Grids Total)
Dual-Crinkle Bundle: Adds 1× 1/2" (12 mm) Thick Crinkle Fry Grid (2 Grids Total)
Master Prep Combo: Adds 1× 1/2" (12 mm) Crinkle Grid + 1× 5/16" (8 × 8 mm) Dicing Grid + Spare Replacement Blade Strips (All 3 Grids Total)
- 1× Wide-Baffle Food-Grade Safety Pusher
- 1× Heavy-Duty Power Cord & English User Manual
Operational & Sanitation Guidelines
- ✅ Approved Produce: Ideal for firm and medium-firm vegetables and fruits, including white potatoes, russet potatoes, sweet potatoes, carrots, daikon radishes, cucumbers, onions, and bell peppers.
- 🚫 Strictly Prohibited Items (Prevent Blade & Motor Damage): Do NOT use this machine to cut frozen foods, raw or cooked meat, bones, hard fruit pits/shells, nuts, sugarcane, or overripe, mushy tomatoes.
- 🧽 Cleaning & Dishwasher Warning: Always unplug the power cord before cleaning or handling blades. Slide out the blade grid and rinse it directly under running tap water with a mild neutral detergent. Do NOT put blade grids in a commercial dishwasher and avoid harsh alkaline detergents, which can dull and corrode 420 martensitic steel. Wipe the main 201 SS base with a damp cloth—never spray the main motor housing with a high-pressure water hose or submerge it in water.
- ⚙️ First-Use Break-In Note: Before initial use, wash the blade grid, feed chute, cutting deck, and outlet. After the very first run, a small amount of protective bearing lubricant may appear near the drive shaft; this is normal during factory break-in—simply wipe it clean.
Frequently Asked Questions (FAQ)
Q1: Can I feed whole jumbo potatoes into this commercial french fry cutter without cutting them first?
A: Yes. The Tenshine TS-L6538 features an oversized 4.3" × 4.1" (110 × 105 mm) vertical feed chute that easily accommodates whole, unpeeled or peeled large potatoes, onions, and bell peppers without manual quartering.
Q2: Does it run on standard US 110V–120V restaurant outlets?
A: Yes. We offer both a 110V–120V / 60Hz configuration for standard North American kitchen outlets and a 220V–240V / 50–60Hz option. Simply select your required voltage variant before adding to cart.
Q3: What if a single blade bends or breaks? Do I have to buy a whole new dicing grid?
A: No. Unlike welded competitor grids, our 0.04" (1.0 mm) thickened 420 stainless steel blade grids use a modular bolt-together frame. You can unbolt the side rods and replace a single damaged blade strip in minutes, cutting consumable maintenance costs by up to 75%.
Q4: How long can the machine run continuously, and are the blade grids dishwasher safe?
A: To protect the high-torque 200W pure copper motor, the recommended continuous duty cycle is up to 30 minutes, followed by a 15-minute cool-down break (since it preps 50 lbs of potatoes in under 5 minutes, a 30-minute window processes up to 300 lbs!). The slide-out blade grids are easily rinsed under a sink faucet, but should NOT be washed in a commercial dishwasher or with harsh alkaline chemicals to preserve blade sharpness.
