Auto-Lift Commercial Deep Fryer – Heavy-Duty Electric Double Vat with Programmable Basket Lift (TS-EFH213)

💥 Redefine Your High-Volume Output

Need a programmable commercial deep fryer with filtration system? Eliminate human error and never overcook a batch again. The Tenshine TS-EFH213 Auto-Lift Commercial Electric Fryer brings ultimate automation to your busy kitchen. Featuring an automatic basket lift system and a built-in oil filtration pump, this heavy-duty workhorse guarantees 100% standardized output while drastically reducing your labor and oil costs.

🎯 At a Glance: Core Capabilities

• Best for: High-volume fast food franchises, ghost kitchens, and restaurants dealing with high staff turnover that require foolproof, push-button operation.

• Versatility: Equipped with a dual-vat configuration and an automated rising-lowering system that automatically pulls food from the hot oil the second the timer expires.

• Power Output: A robust 14.3kW 3-phase electrical system provides the rapid heat recovery needed to power through the busiest lunch rushes.


🚀 Core Performance & Profitability

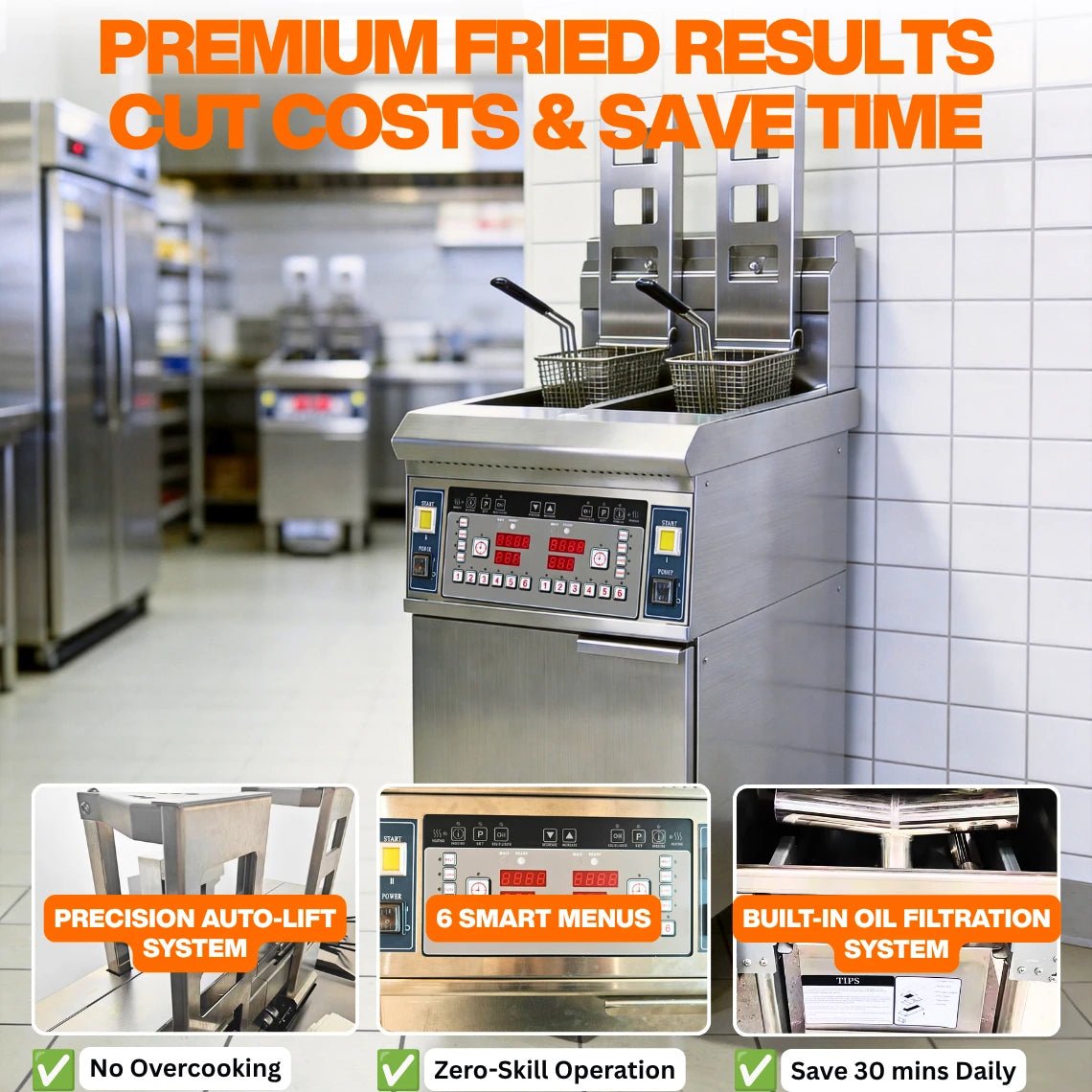

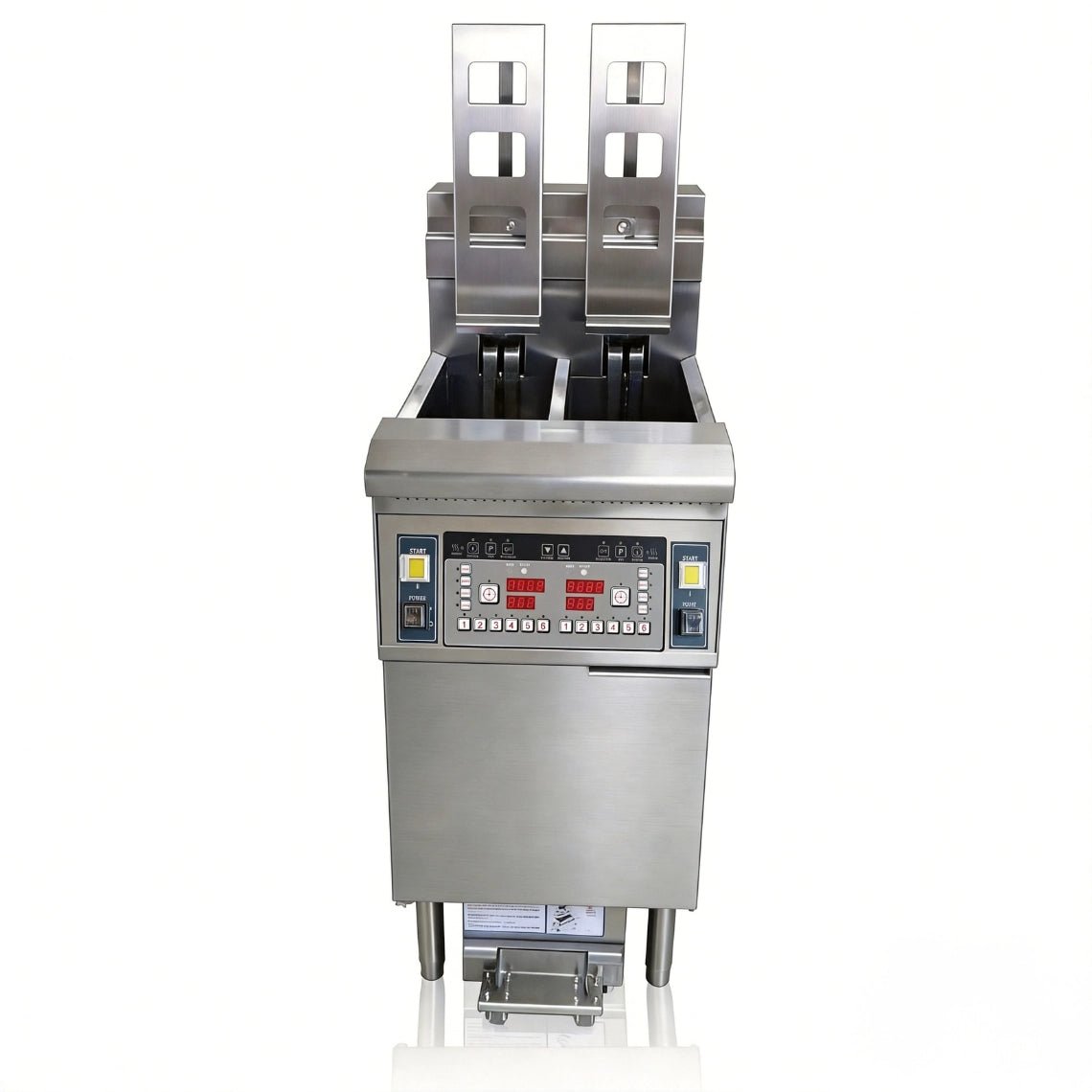

• Precision Auto-Lift System: Features a highly reliable automatic rising-lowering mechanism. Once the pre-set 0-59 minute timer hits zero, the baskets automatically lift out of the oil, ensuring perfectly golden results every single time without requiring a chef to stand watch.

• Dual-Vat Flexibility: Contains two independent fry pots, each holding 11.6 Liters (3.06 Gallons) of oil. Fry fish in one vat and fries in the other with zero flavor transfer.

• Heavy-Duty Build: Weighing in at a solid 115kg (253.5 lbs) and designed with a highly efficient 430mm (16.9 in) footprint to house the heavy-duty lift motors without wasting your valuable kitchen space, this machine is built to last in the most demanding B2B environments.


🛡️ Smart Operation & Labor Savings

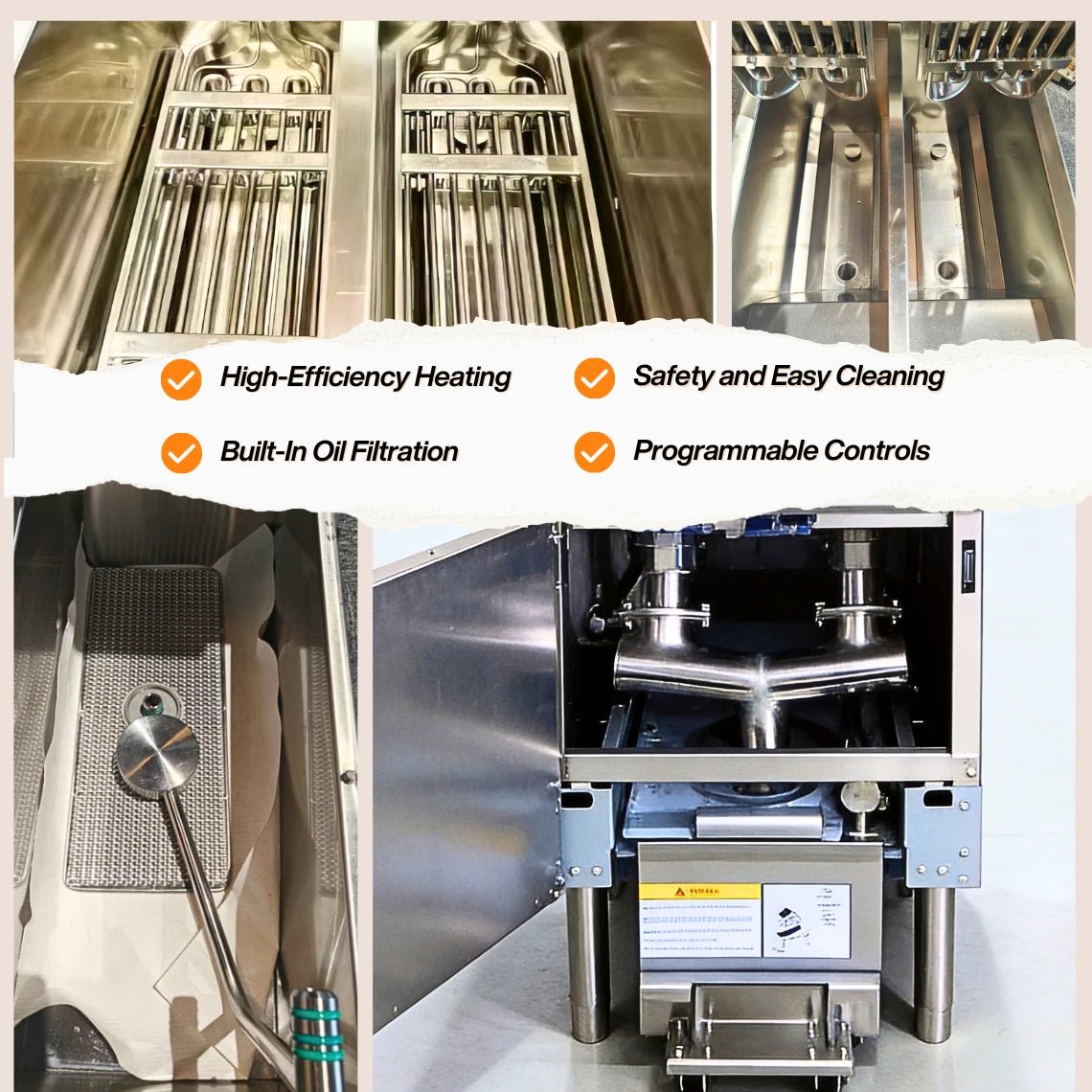

• Integrated Oil Filtration: Designed as a self-contained system with a built-in oil filter pump and bottom drain valve. Operators can safely cycle and clean the oil daily, extending oil life and saving thousands of dollars annually.

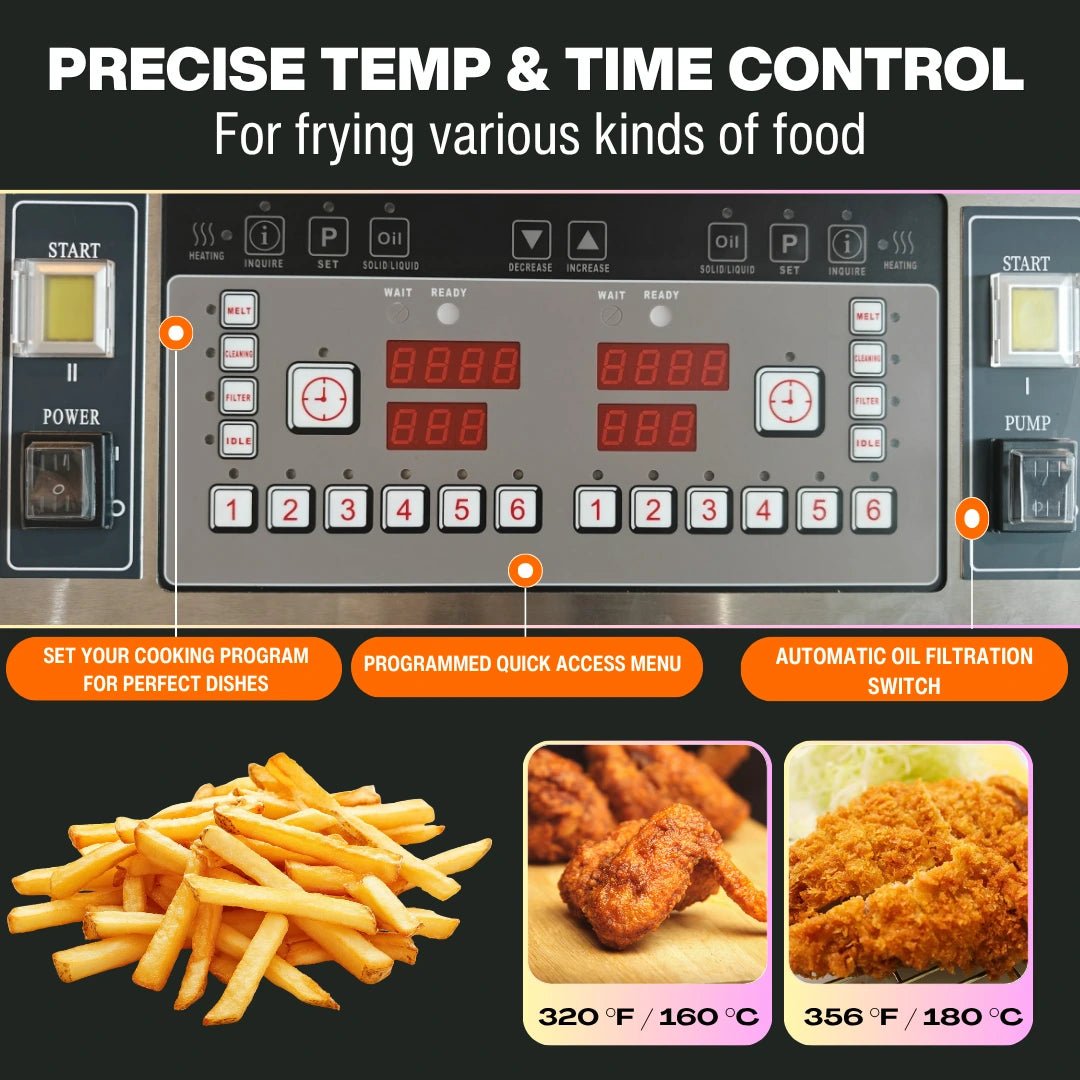

• Programmable Logic Controller (PLC): The microcomputer panel stores up to 6 distinct cooking profiles. Simply press a numbered button, and the PLC controls the temperature, timing, and basket lift automatically.

• Smart Melt Cycle: The dedicated "Solid/Liquid Oil Key" activates a gentle, pulsing heat cycle to melt solid shortening block by block, preventing scorching and protecting the heating elements.

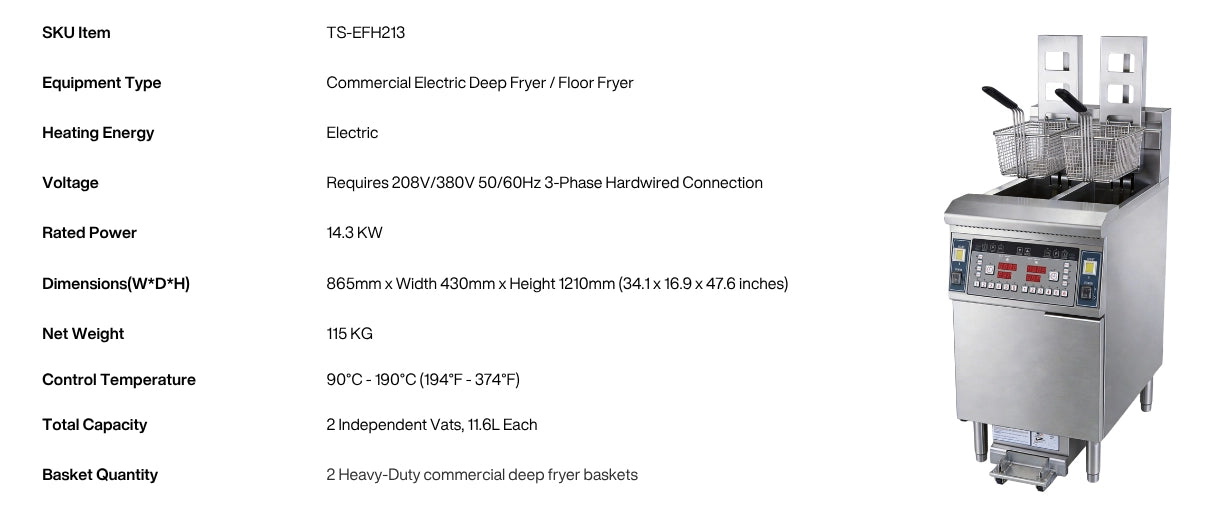

📊 Technical Specifications (Quick Reference)

• SKU Item: TS-EFH213

• Core Feature: Automatic rising-lowering basket system

• Power Supply: 208V-240V or 380V-415V (50/60Hz), 3-Phase Hardwired

• Rated Input Power: 14.3kW

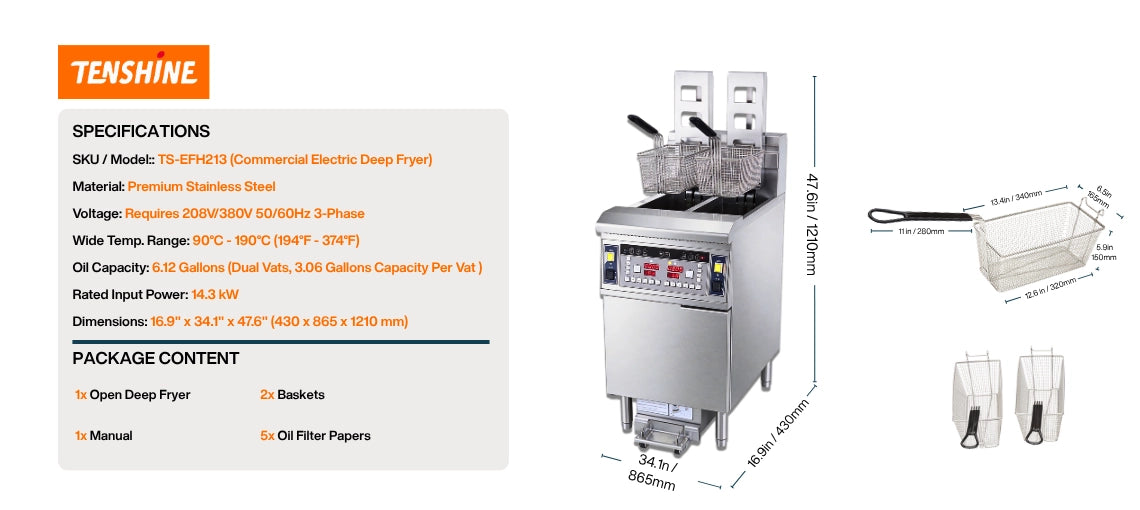

• Physical Dimensions: Length 865mm x Width 430mm x Height 1210mm (34.1 x 16.9 x 47.6 inches)

• Net Weight: 115kg (253.5 lbs)

• Oil Capacity: 2 independent pots, 11.6 Liters (3.06 Gallons) per pot

•
  Loading Capacity: Max 1.6kg (3.53 lbs) of food per pot per batch

• Operating Temperature Range: 90°C to 190°C (194°F to 374°F)


⚠️ IMPORTANT: Choosing the Right Voltage

This is a heavy-duty commercial machine that requires a hardwired 3-Phase electrical connection. It DOES NOT plug into a standard residential wall outlet. Please verify your commercial kitchen's power supply before ordering. Select the appropriate voltage variant (208V/240V US Standard or 380V/415V Global Standard) and consult a licensed commercial electrician prior to installation.

📦 What's Included?

• 1 x TS-EFH213 Auto-Lift Commercial Double Deep Fryer

• 2 x Heavy-Duty Auto-Lift Fry Baskets

• Built-in Oil Pump System with Filter Plate and Pressure Plate

• Comprehensive Warranty & Dedicated B2B Support


❓ Frequently Asked Questions (Q&A)

Q: How does the auto-lift programmable deep fryer work?

A: The TS-EFH213 features an integrated PLC timer system. When you select a pre-set cooking program (from the 6 available slots), the basket lowers into the oil. The moment the exact cooking time elapses, the automatic rising-lowering motor immediately lifts the basket out, preventing overcooking even if the operator is busy elsewhere.

Q: How to filter a commercial deep fryer when using an auto-lift model?

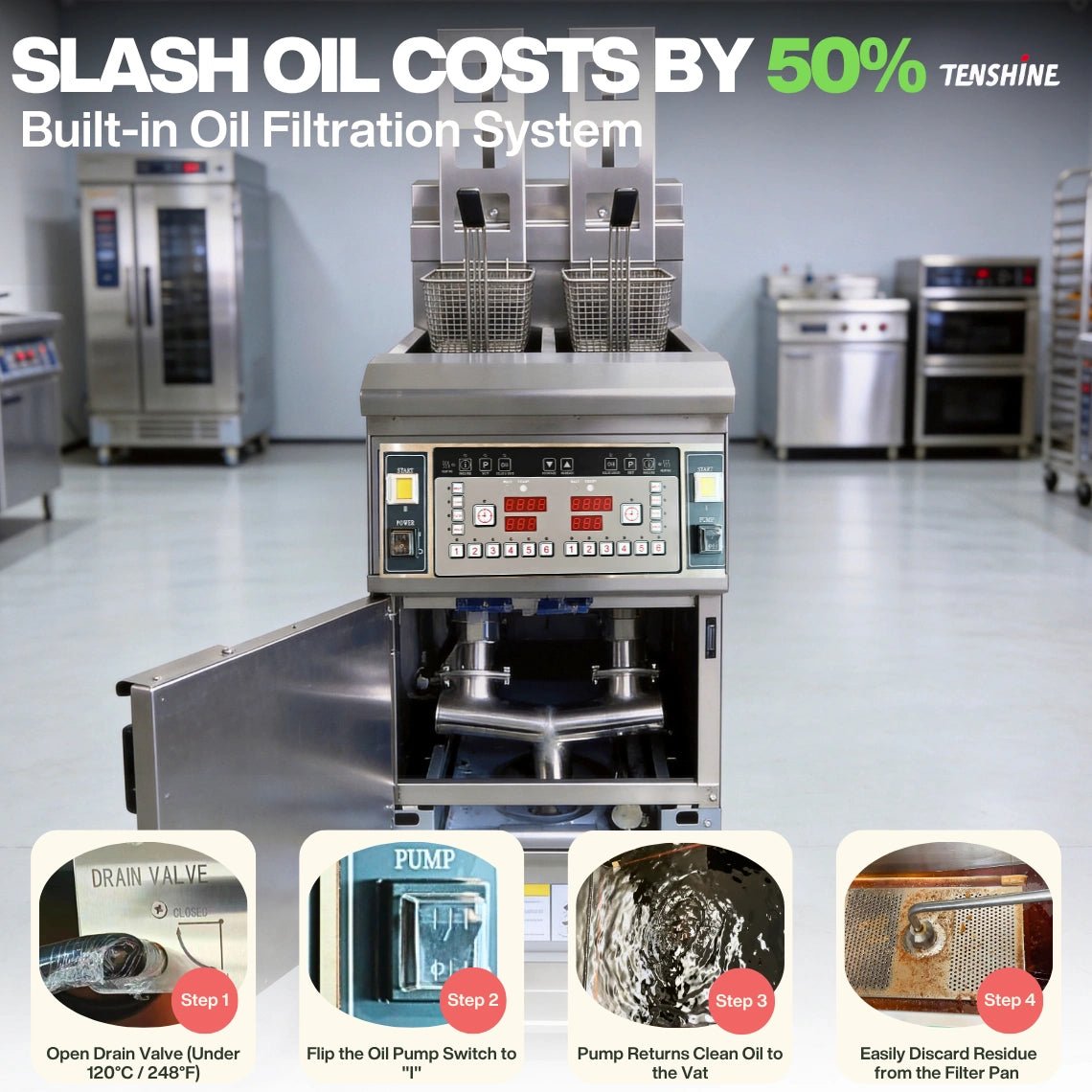

A: The TS-EFH213 makes it effortless. It is equipped with an integrated oil filter pump located at the bottom. By placing filter paper inside the filter tank and activating the pump switch, the machine safely circulates and purifies the hot oil, significantly extending its usability without manual pouring.

Q: Can I use solid shortening instead of liquid oil?

A: Absolutely. The control panel includes a specific solid/liquid oil setting. In solid oil mode, the unit applies a controlled, staggered heating pattern (5 seconds on, 20 seconds off) to melt the shortening gradually without burning it or damaging the heating coils.
