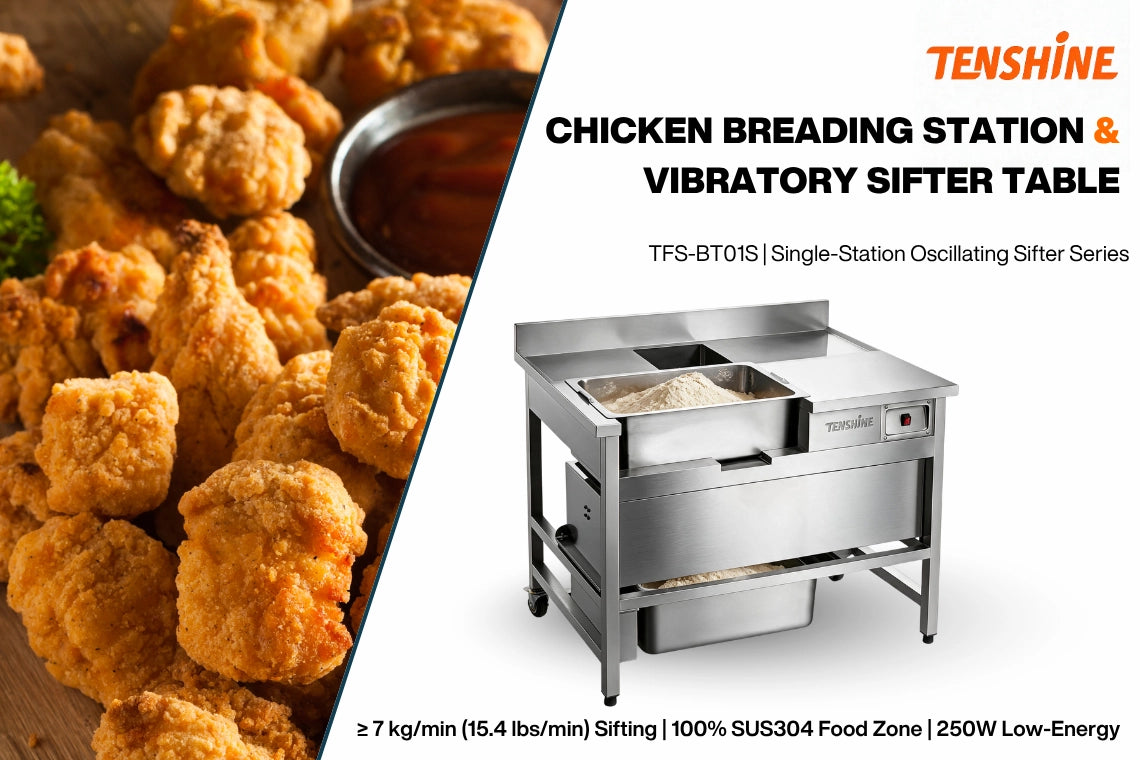

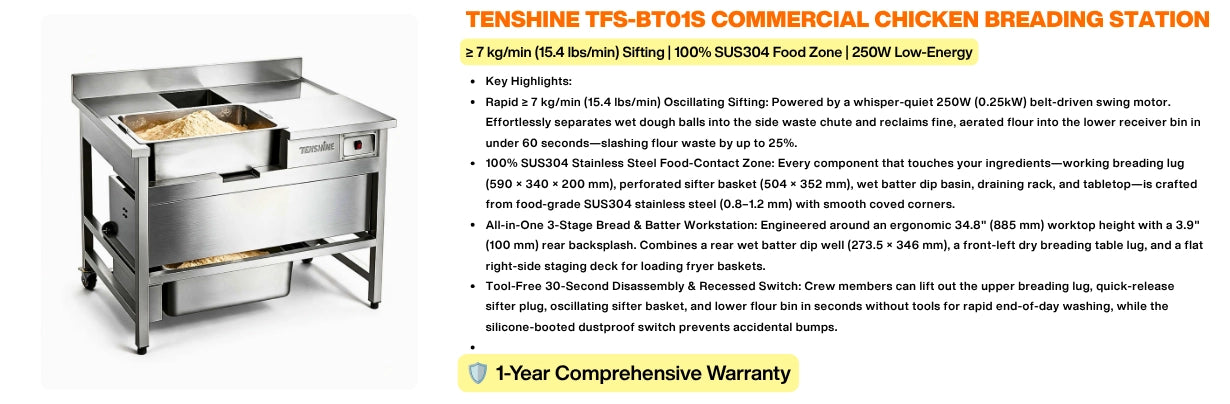

The Tenshine TFS-BT01S is a heavy-duty commercial chicken breading station and motorized oscillating breading table engineered for high-throughput fried chicken kitchens. Built with a 100% SUS304 stainless steel food-contact zone and an automatic vibratory sifter basket (≥ 7 kg / 15.4 lbs per minute), this all-in-one bread and batter station reclaims clean, aerated flour in seconds—stopping ingredient waste and speeding up peak-hour prep lines.
🎯 At a Glance: Core Capabilities
- Best For: High-volume Fried Chicken Restaurants, QSR Prep Lines, Poultry Processing Kitchens, and Busy Commercial Operations demanding an all-stainless steel food zone.
- Power Source: 250W (0.25kW) Continuous-Duty Electric (110V/60Hz or 220V/50Hz Single-Phase).
- Core Advantage: A full-size 48.0" × 32.1" (1220 × 815 mm) chicken breading station featuring a motorized oscillating SUS304 commercial flour sifter that separates wet lumps in under 60 seconds with zero consumable wear parts.
🚀 Core Performance & Profitability
The TFS-BT01S automatic breading machine is engineered to pay for itself by optimizing your standard breading procedure and reducing daily ingredient overhead:
- Save Up to 25% on Breading Costs: Manual sifting is slow, tiring, and wasteful. Simply press the one-touch switch, and the high-frequency oscillating industrial flour sifter basket automatically separates wet "dough balls" into a dedicated side waste chute while reclaiming fine, aerated flour into the lower receiver bin—ready for your next batch.

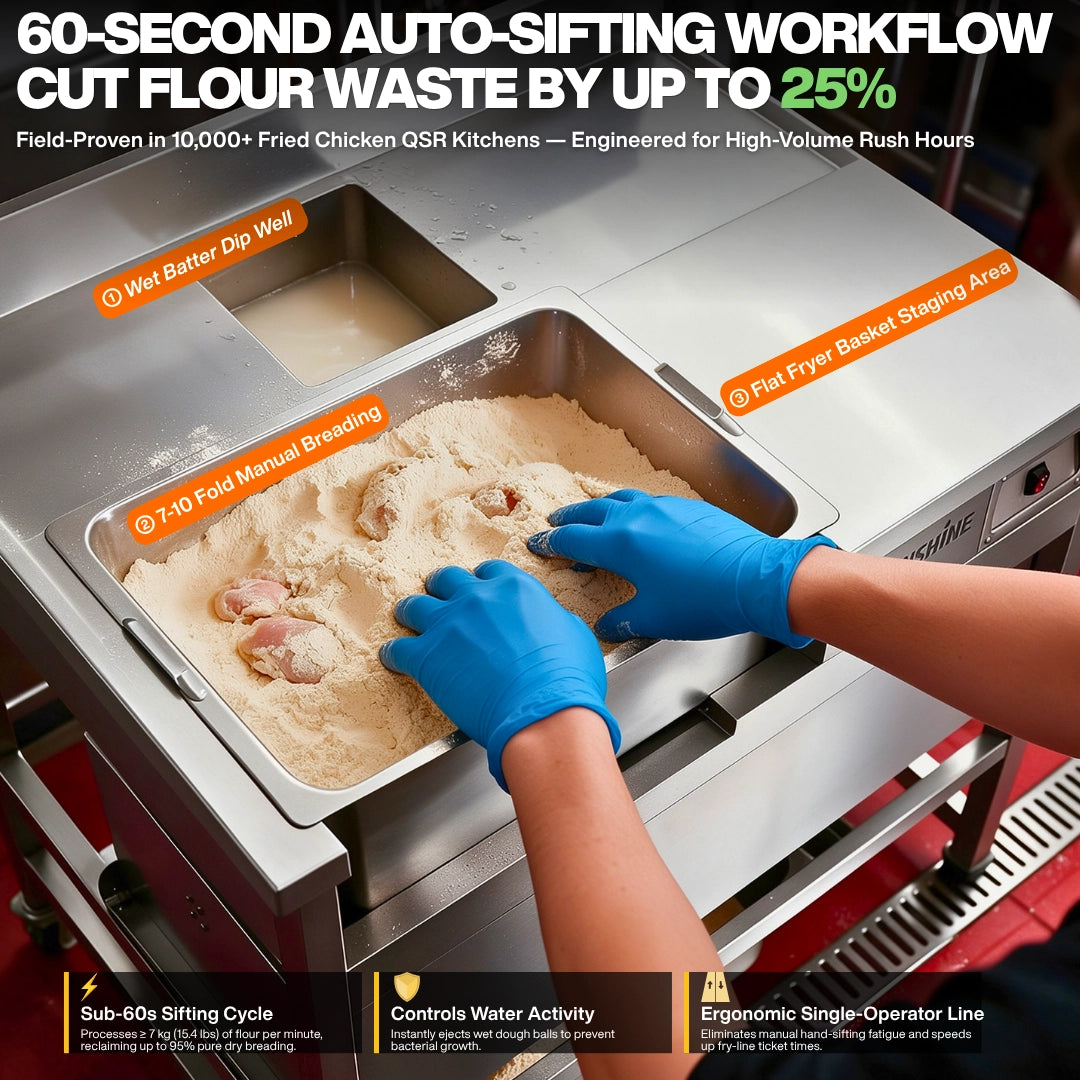

- Integrated 3-Zone Bread and Batter Station: Engineered around an ergonomic 34.8" (885 mm) worktop height with a 3.9" (100 mm) rear splash guard. It combines a rear wet batter station dip basin (273.5 × 346 mm) and removable draining rack (526.9 × 346 mm), a front-left deep-drawn dry breading table lug (590 × 340 × 200 mm), and a flat right-side worktop for staging fryer baskets.
- Superior Coating Consistency: Freshly sifted, lump-free flour adheres evenly to battered poultry. By sifting between batches, this chicken breading equipment ensures uniform crispy scales and consistent frying results every time.
🛡️ Smart Operation & Labor Savings
- One-Touch "Whisper-Quiet" Sifting: Powered by a precision belt-driven 0.25kW swing motor (Model: MA11060FX08-0.25KW), this commercial breading station runs smoothly and quietly without adding noise pollution to your kitchen.
- Recessed Dust-Shielded Switch: Equipped with a flush-mounted, silicone-booted red rocker switch that blocks airborne flour dust ingress and prevents accidental bumps during rush hours.

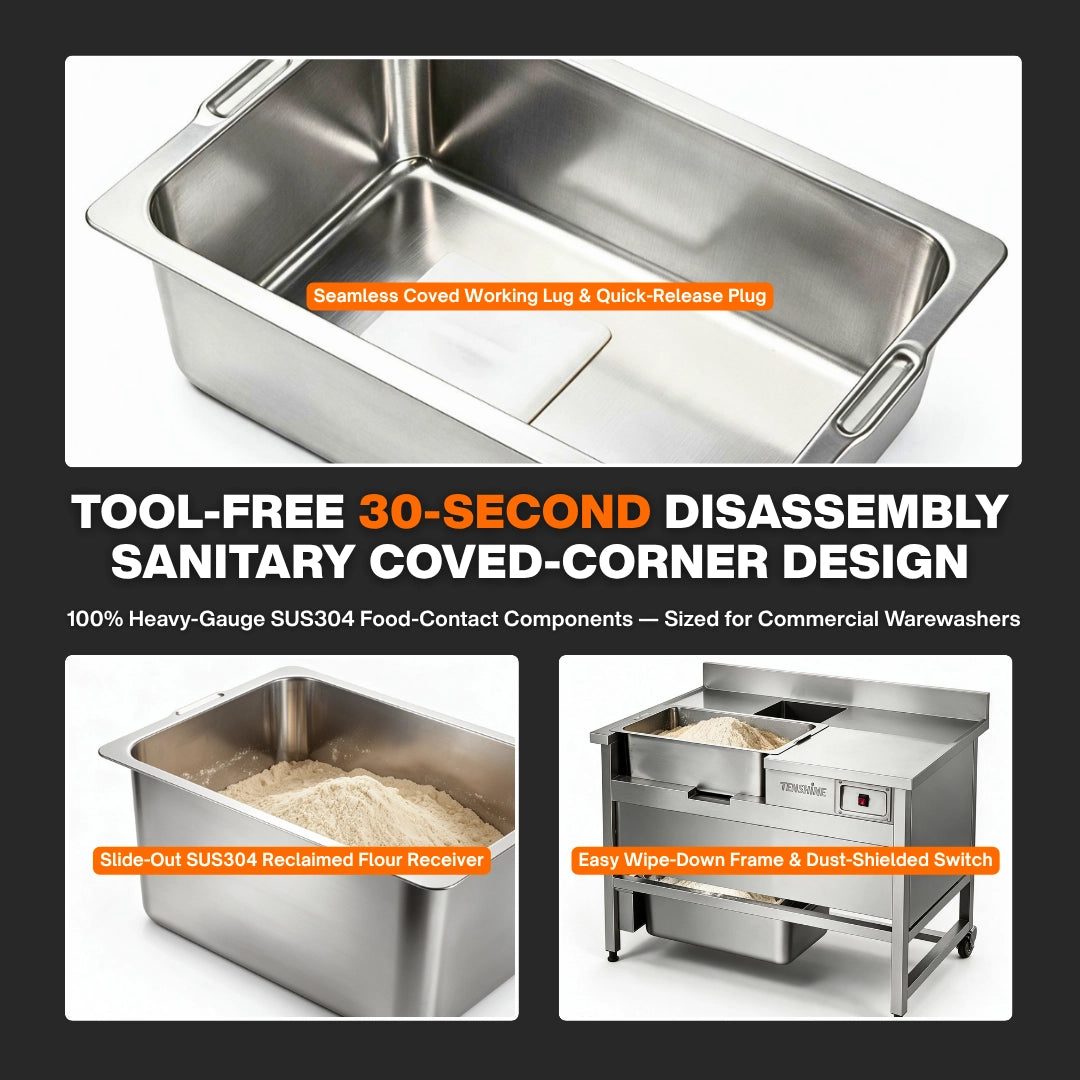

- Tool-Free 30-Second Disassembly for Daily Sanitation: The upper working breading pan, quick-release sifter plug, perforated SUS304 sifter basket (504 × 352 mm), draining rack, and slide-out lower flour container all lift out in seconds without tools for rapid end-of-day washing.
🏆 Why Tenshine Breading Stations Outlast the Competition?
We don't just build standard prep tables; we engineer heavy-duty QSR breading equipment designed for continuous daily operation:

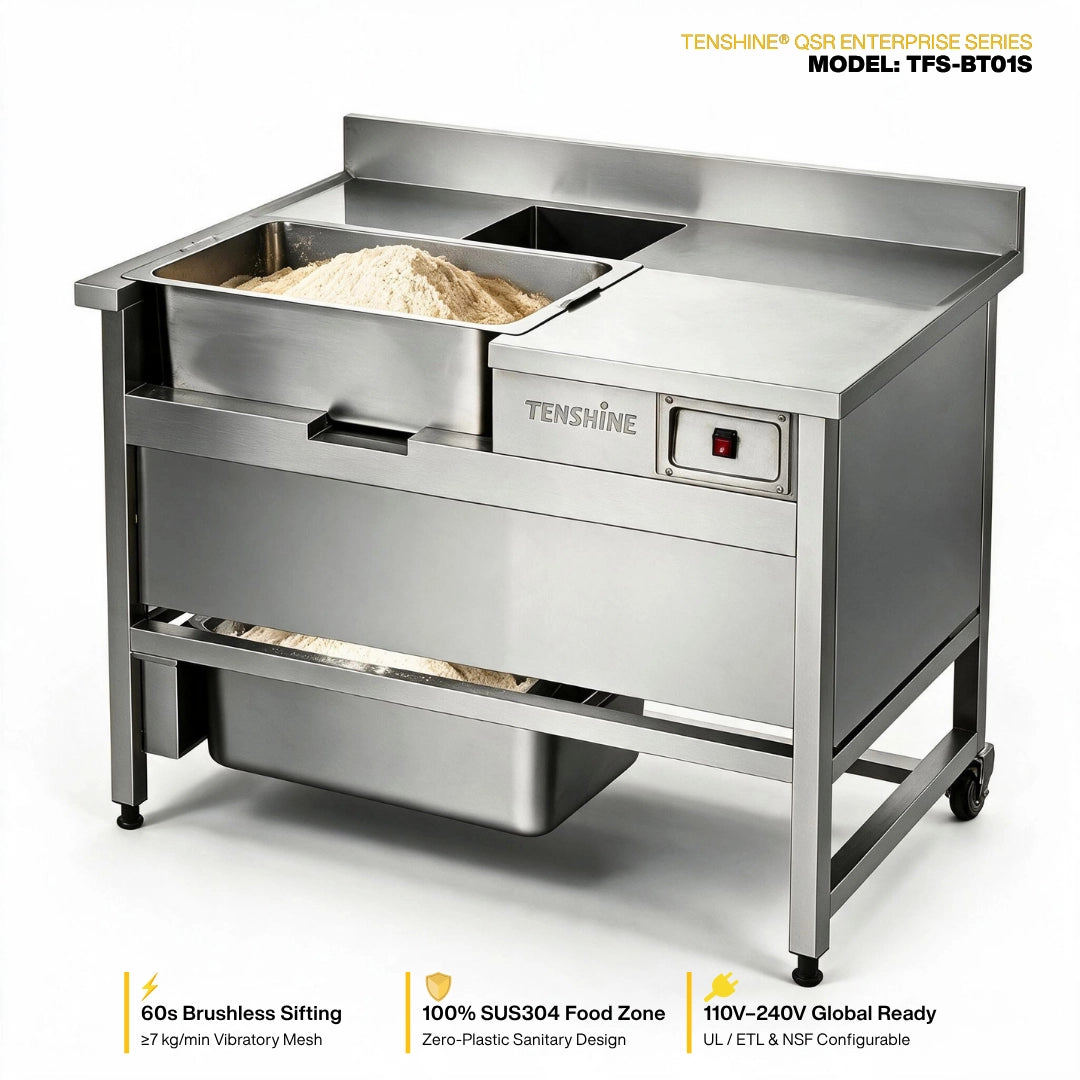

- Verified SUS304 Stainless Steel Food Zone (0.8–1.2 mm): Every component that contacts your food—including the tabletop, rear backsplash, working breading lug, wet dip basin, and oscillating sifter basket—is crafted from food-grade SUS304 stainless steel (0.8–1.2 mm thickness) with smooth coved corners for effortless hygiene and rust resistance.

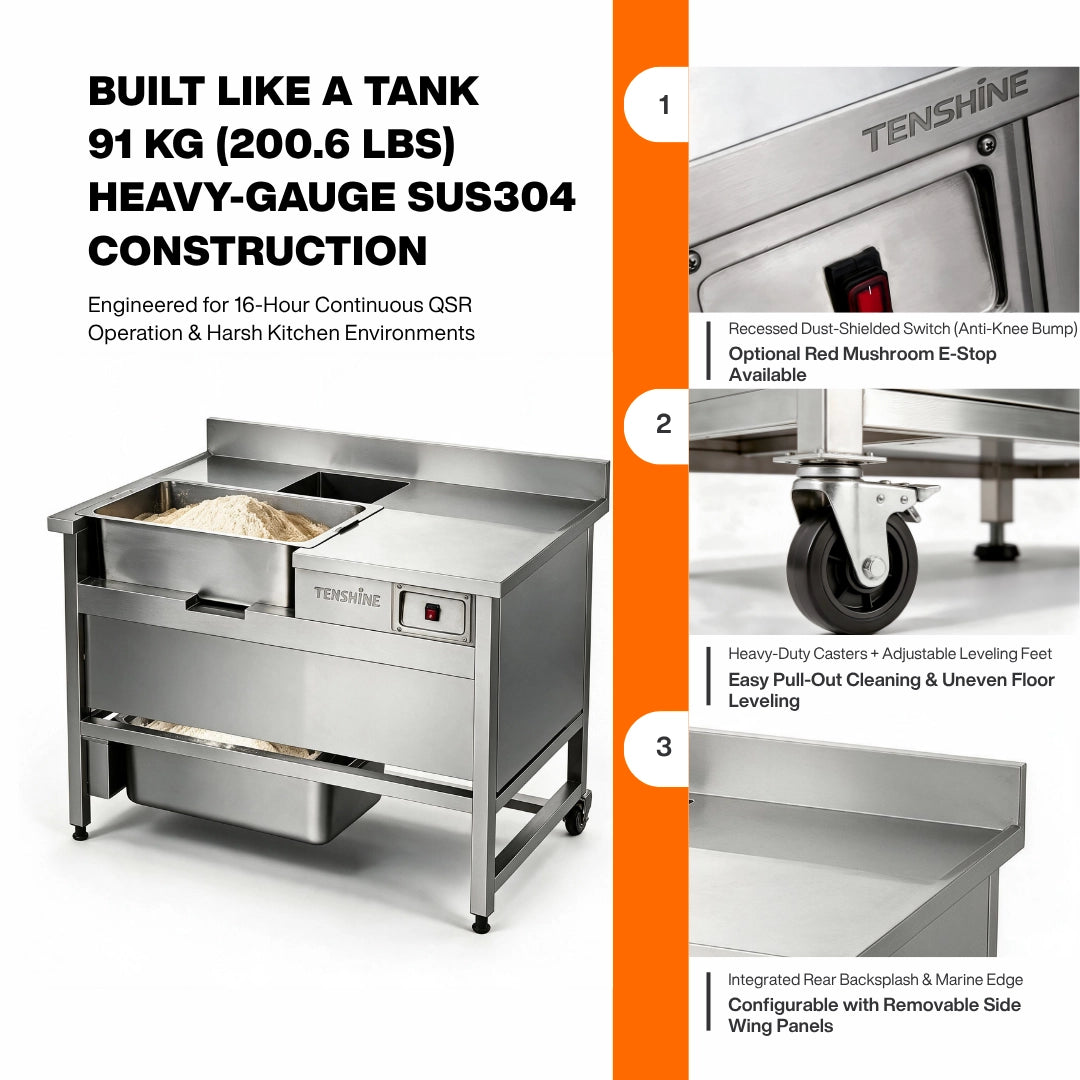

- 91 kg (200.6 lbs) Heavy-Gauge Structural Frame (0.8–2.0 mm): The lower support structure is reinforced with thickened SUS430 stainless steel (0.8–2.0 mm thickness), providing rock-solid stability that eliminates shaking or warping during vigorous hand-breading.

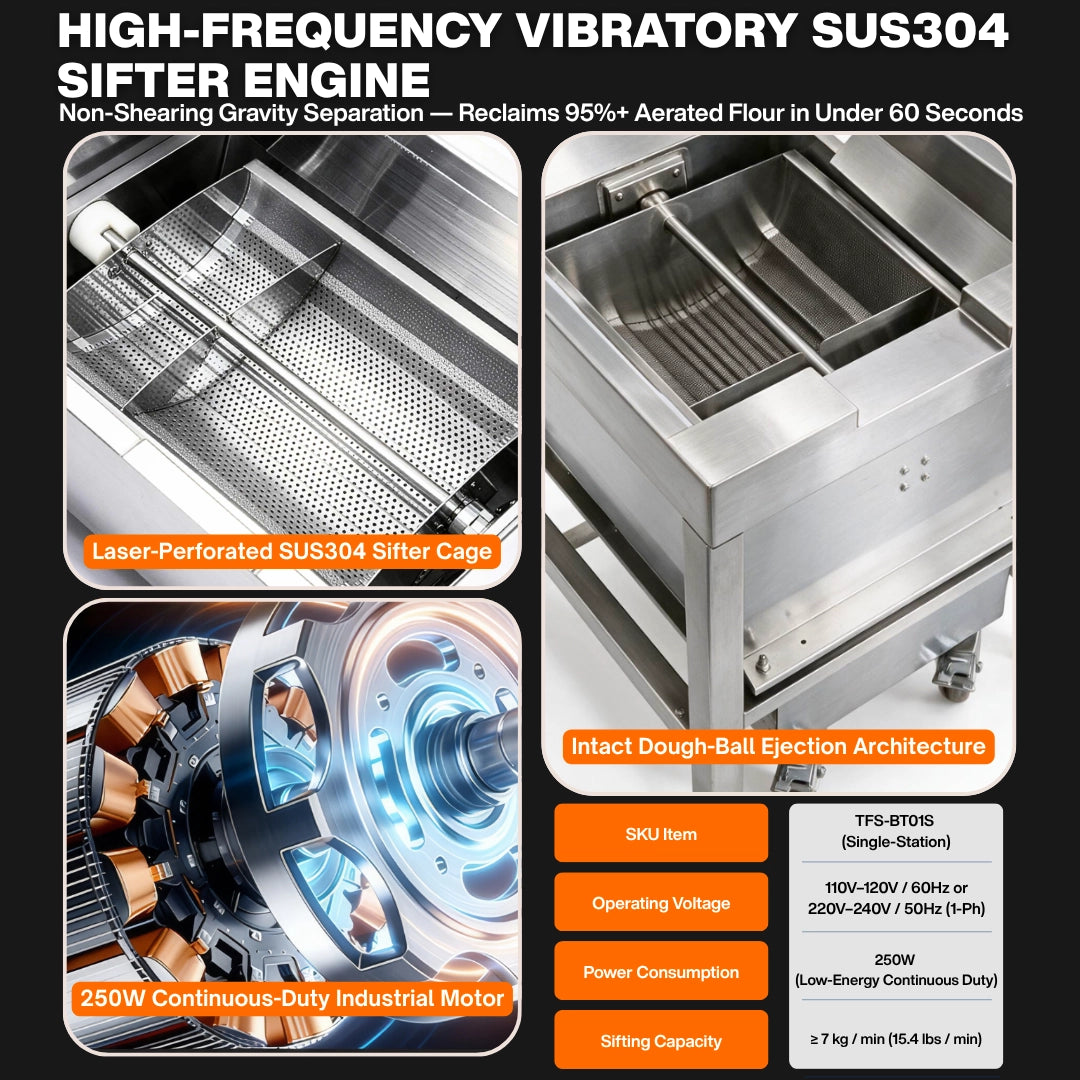

- Precision Belt-Driven Oscillating Transmission: Engineered with a synchronized horizontal pulley and bushing drive system that keeps the 504 × 352 mm perforated stainless sifter basket perfectly level, ensuring jam-free sifting and long motor service life.
- Hybrid Mobility & Floor Leveling: Equipped with front adjustable stainless steel bullet feet (to level the workstation on uneven kitchen floors and reduce vibration noise) paired with rear heavy-duty swivel casters for easy pull-out cleaning.

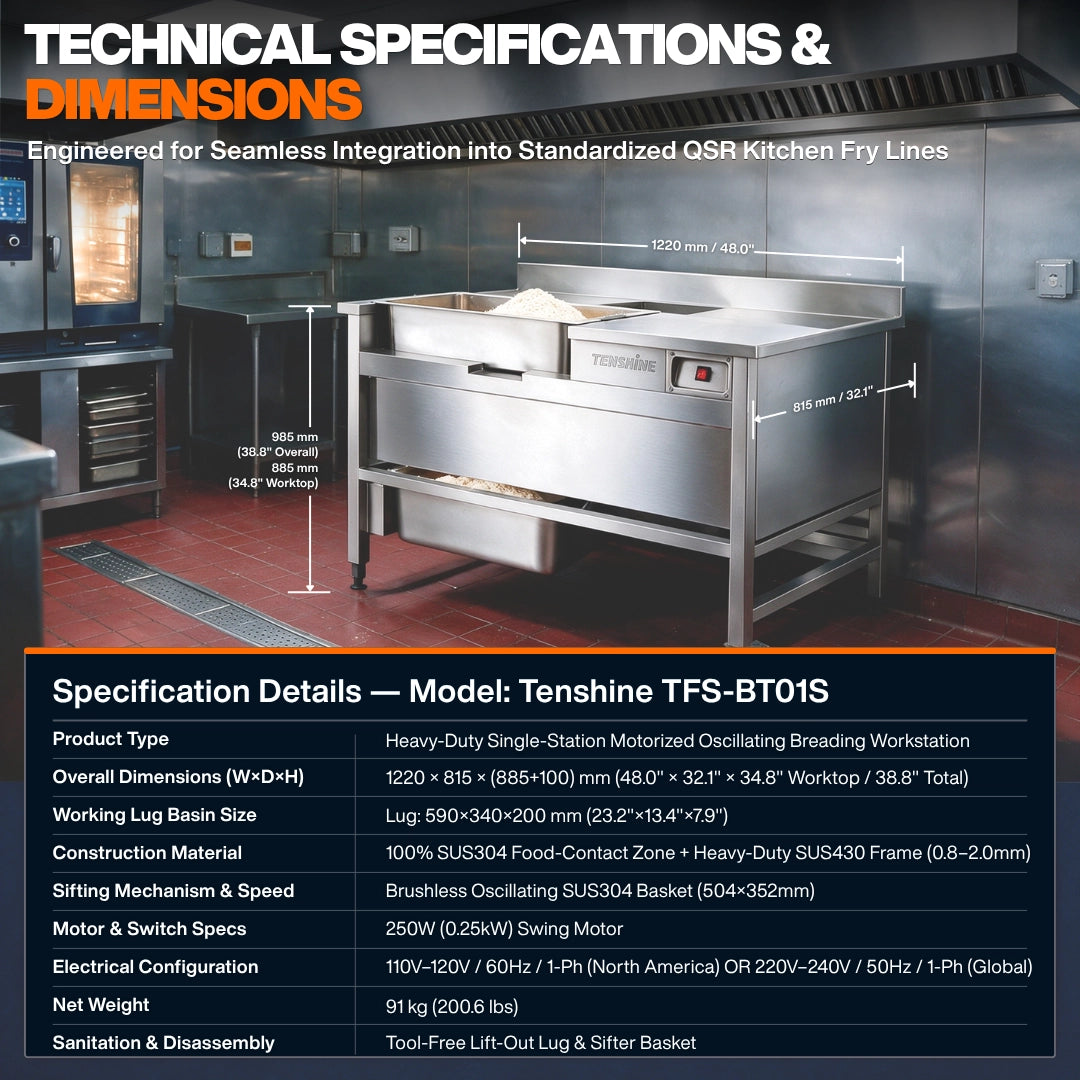

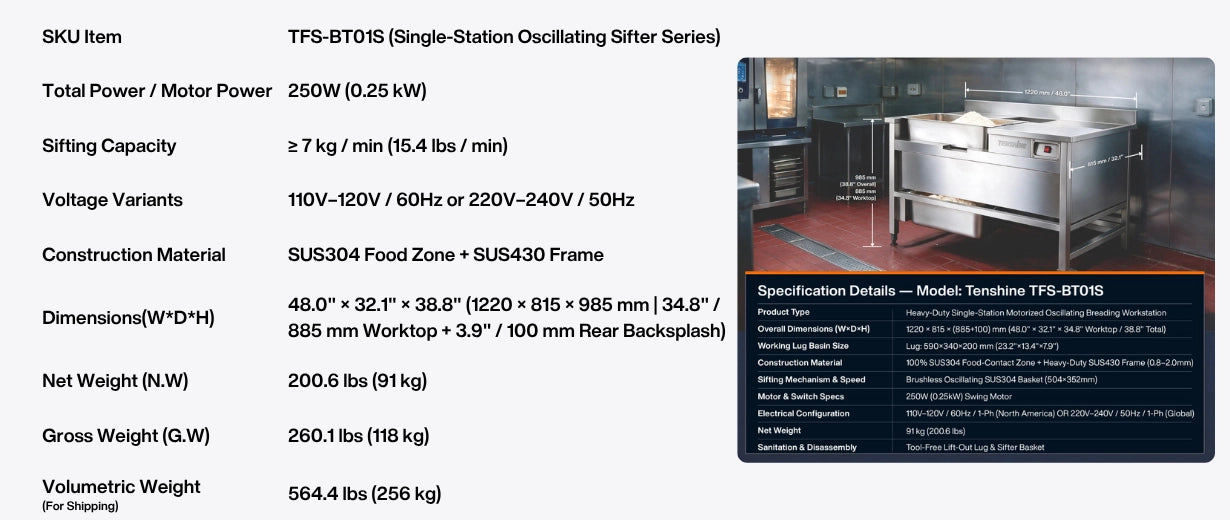

📊 Technical Specifications (Quick Reference)
- SKU Item: Tenshine TFS-BT01S (Single-Station Oscillating Sifter Series)
- Voltage Variants: 110V–120V / 60Hz (US/CA) or 220V–240V / 50Hz (EU/Global) Single-Phase
- Total Power / Motor Power: 250W (0.25 kW)
- Sifting Capacity: ≥ 7 kg / min (15.4 lbs / min)
- Product Dimensions (W×D×H): 48.0" × 32.1" × 38.8" (1220 × 815 × 985 mm | 34.8" / 885 mm Worktop + 3.9" / 100 mm Rear Backsplash)
- Working Breading Lug Size: 23.2" × 13.4" × 7.9" (590 × 340 × 200 mm — Deep-Drawn SUS304)
- Wet Batter Dip Basin Size: 10.8" × 13.6" (273.5 × 346 mm)
- Removable Draining Rack Size: 20.7" × 13.6" (526.9 × 346 mm)
- Oscillating Sifter Basket Size: 19.8" × 13.9" (504 × 352 mm Perforated SUS304)
- Shipping Dimensions (Wooden Crate): 51.2" × 35.2" × 43.3" (1300 × 895 × 1100 mm)
- Net Weight (N.W): 200.6 lbs (91 kg)
- Gross Weight (G.W): 260.1 lbs (118 kg)
- Volumetric Weight (For Shipping): 564.4 lbs (256 kg)
- Material Construction: SUS304 Stainless Steel Food-Contact Zone (0.8–1.2 mm) + Reinforced SUS430 Frame (0.8–2.0 mm)
⚠️ IMPORTANT: Installation & Cleaning Safety Notice
- Electrical Setup: Must be connected to a grounded power supply matching the rated voltage (within ±10% voltage tolerance) via a dedicated two-pole leakage circuit breaker. Operate in ambient temperatures of 0°C–35°C (32°F–95°F) and relative humidity below 85%.
- Dry Breading Only: The automatic sifter mechanism is designed for dry breading and seasoned flour mixtures only. Do not pour liquid batter or water directly into the sifter chute.
- Daily Cleaning Protocol: Before cleaning, turn off the machine and disconnect the main power supply. Remove the SUS304 breading lugs, sifter plug, and sifter basket to wash with warm water and mild detergent. Wipe down the exterior stainless steel body with a clean damp towel—strictly DO NOT spray or flush water directly onto the electrical control switch panel or wiring compartment to prevent short circuits.

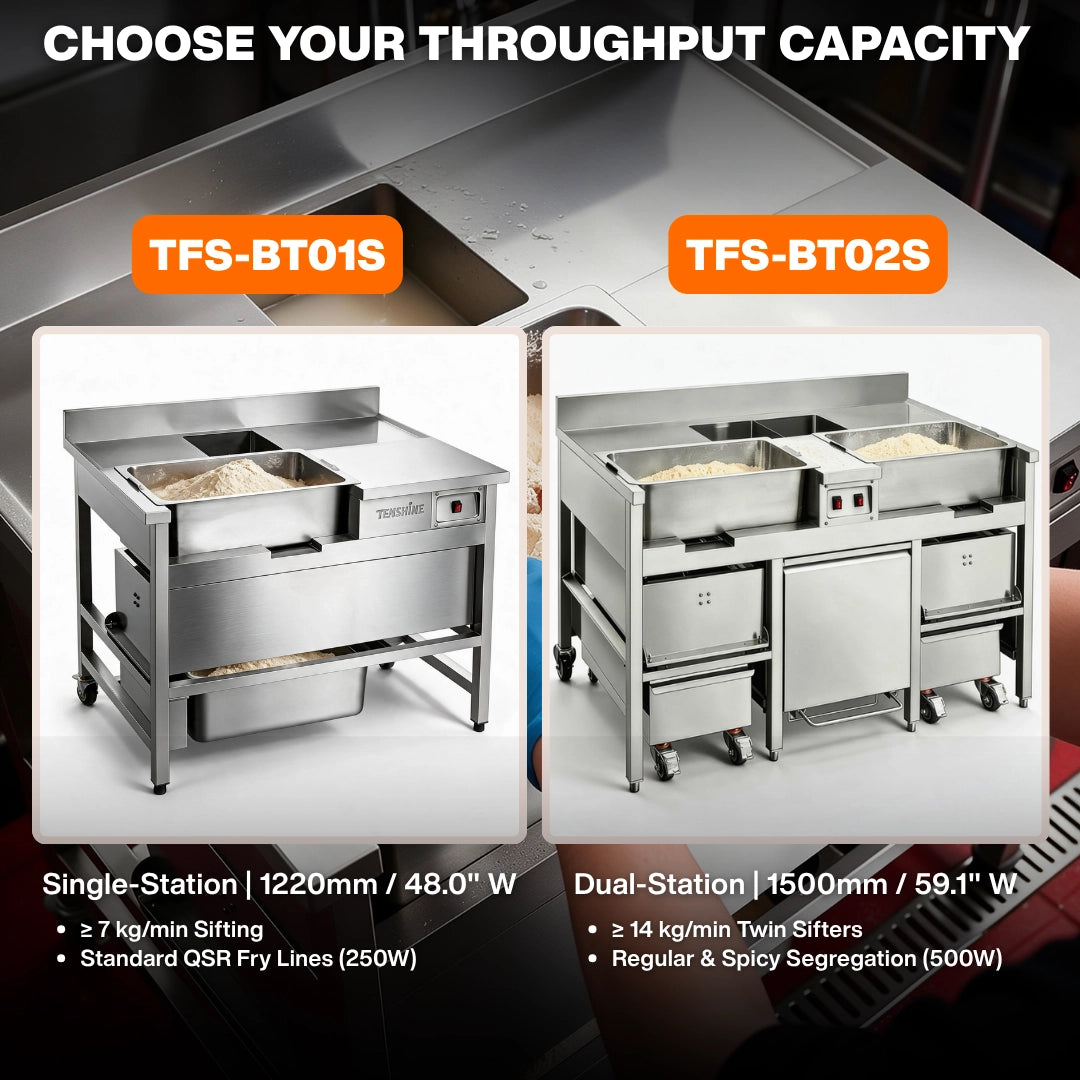

🆚 Which Tenshine Commercial Breading Station Fits Your Kitchen?
🔶 [Tenshine TFS-BT01S] (This Model): The QSR Enterprise Single-Station Flagship
- Footprint: 48.0" × 32.1" (1220 × 815 mm All-Stainless Worksurface)
- Sifter Engine: 250W Brushless Oscillating SUS304 Basket (≥ 7 kg/min)
- Best For: High-Volume QSR Single Fry Lines & Strict Zero-Plastic Sanitation Mandates
🔸 [Tenshine BT-2P] ➔ [Click Here to Explore]: The Ultra-Slim Space Saver
- Footprint: 45.4" × 17.7" (1152 × 450 mm Ultra-Slim Profile)
- Sifter Engine: 180W Whisper-Quiet Active Rotary Brush
- Best For: Food Trucks, Ghost Kitchens & Tight Prep Lines
🔹 [Tenshine BT-1E] ➔ [Click Here to Explore]: The Standard Commercial Workhorse
- Footprint: 45.3" × 30.0" (1150 × 760 mm Full-Size Worktop)
- Sifter Engine: 180W Spiral Rotary Brush with Quick-Release Discharge
- Best For: Independent Fried Chicken Shops & Seafood Restaurants
📦 What's Included?
- 1x Tenshine TFS-BT01S Main Breading Workstation (1220 × 815 × 985 mm)
- 1x Deep-Drawn SUS304 Upper Working Breading Lug (590 × 340 × 200 mm) + Quick-Release Sifter Plug
- 1x Slide-Out SUS304 Lower Reclaimed Flour Receiver Bin + Side Dough-Ball Catcher
- 1x Removable Perforated SUS304 Oscillating Sifter Basket (504 × 352 mm)
- 1x Integrated SUS304 Wet Batter Dip Basin (273.5 × 346 mm) + Removable Batter Draining Rack (526.9 × 346 mm)
- 1x User Operation & Maintenance Manual
❓ Frequently Asked Questions (Q&A)
Q: How often should I run the automatic flour sifter?
A: For maximum flour savings and consistent coating scales, we recommend running a 45-to-60-second sifting cycle every 3 to 5 batches of chicken, or whenever wet dough balls accumulate in the working breading pan.
Q: How do I clean the TFS-BT01S breading station at the end of the day?
A: First, turn off the power switch and disconnect the main power supply. Lift out the upper SUS304 breading lug, sifter plug, oscillating sifter basket, draining rack, and lower flour receiver—all of which remove without tools and can be washed with warm water and mild detergent or placed in a commercial dishwasher. Wipe the exterior frame with a damp sanitizing towel, taking care never to flush water directly onto the electrical switch panel.
Q: How do I choose between the TFS-BT01S (Oscillating Basket) and the BT-2P / BT-1E (Rotary Brush)?
A: Our BT-2P and BT-1E rotary brush models are lightweight, plug-and-play stations ideal for food trucks and compact shops. The TFS-BT01S is a heavy-duty 91 kg (200.6 lbs) workstation built for high-volume QSR kitchens that prefer a 100% SUS304 stainless steel food-contact zone (deep-drawn stainless steel lugs instead of poly bins) and a brushless oscillating sifter basket (≥ 7 kg/min) with zero brush wear parts.
