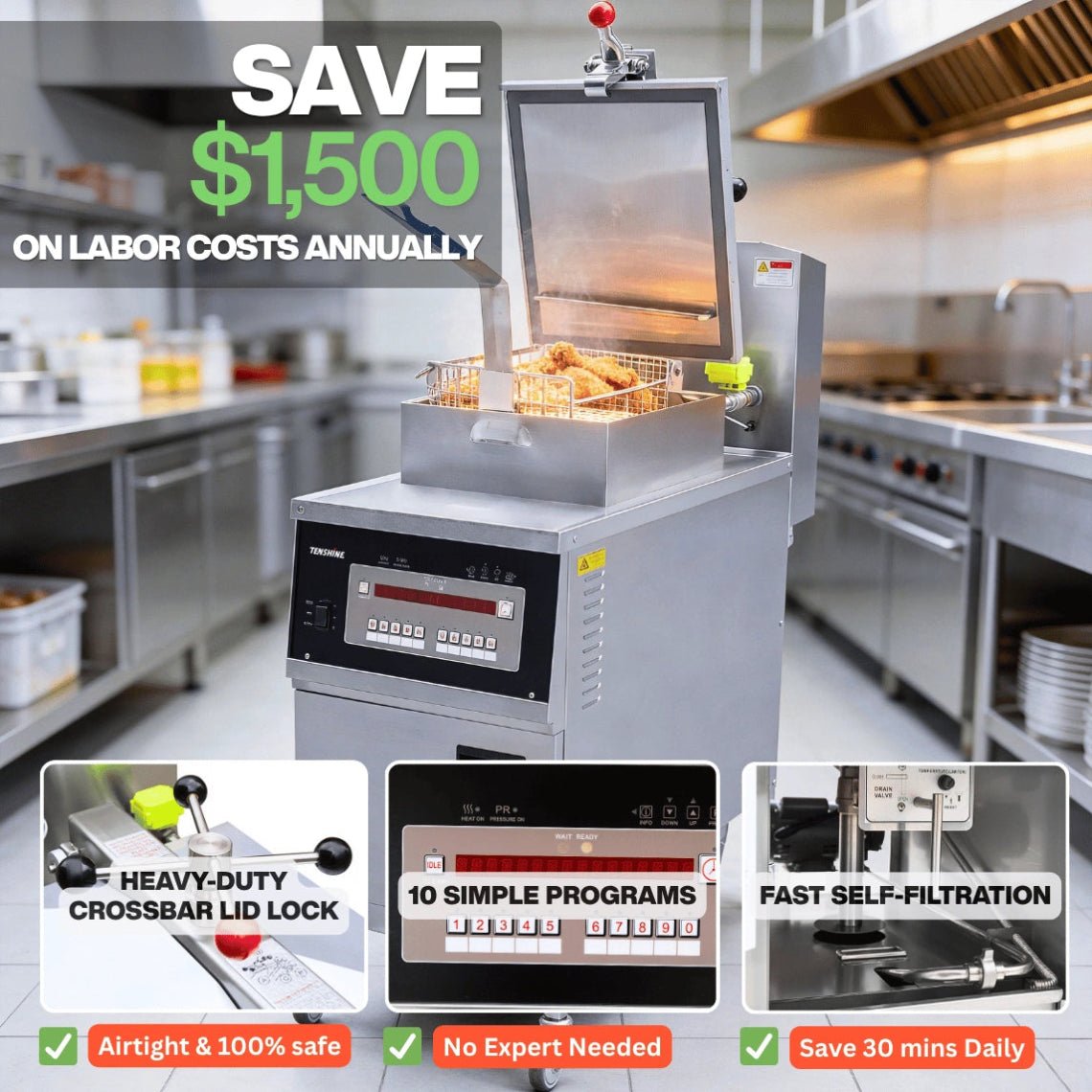

🔥 HIGH-OUTPUT GAS HEATING (ZERO 3-PHASE POWER REQUIRED!):
Advanced cross-burner gas tubes (Liquid Propane LPG or Natural Gas NG) deliver rapid thermal recovery while consuming just ~1.06 lbs/hr (0.48 kg/h)—requiring only a standard 110V (US) or 220V single-phase outlet (0.75 kW) to run the computer board and filter pump!
💧 BUILT-IN OIL FILTRATION PUMP WITH AUTO-VALVE ACTUATION:
Integrated 0.75 kW filtration pump and automatic return valve purify 55 lbs (6.3 gallons / 24L) of shortening in under 5 minutes—extending cooking oil life by up to 50%.
🖥️ 10-KEY SMART COMPUTER PANEL (WITH IDLE & CLEAN MODES):
Features 10 programmable menu keys (Keys 1–0), WAIT/READY indicators, one-touch IDLE standby mode, and automated solenoid steam depressurization at 12 PSI (0.085 MPa).
📐 ULTRA-NARROW 17.7" STOREFRONT FOOTPRINT:
Cooks 4 to 6 whole cut chickens (up to 55 lbs/hr) in a heavy-duty 304 stainless steel floor cabinet that squeezes into tight 18-inch cookline spaces!

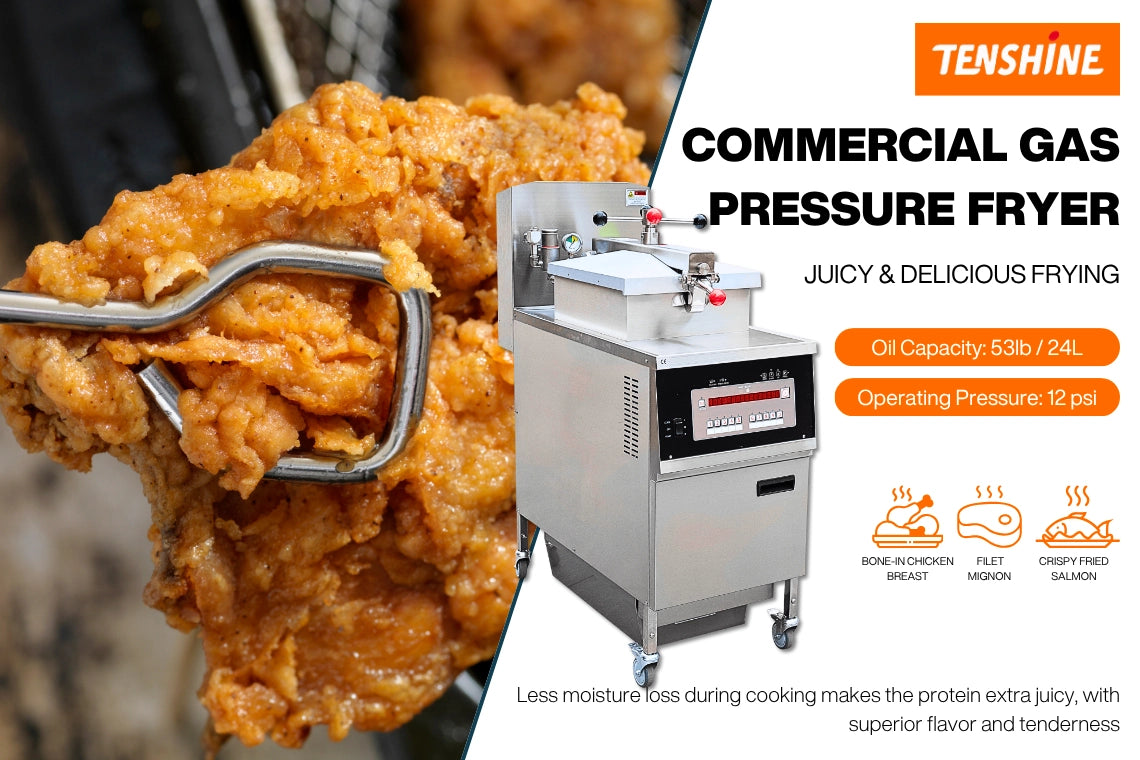

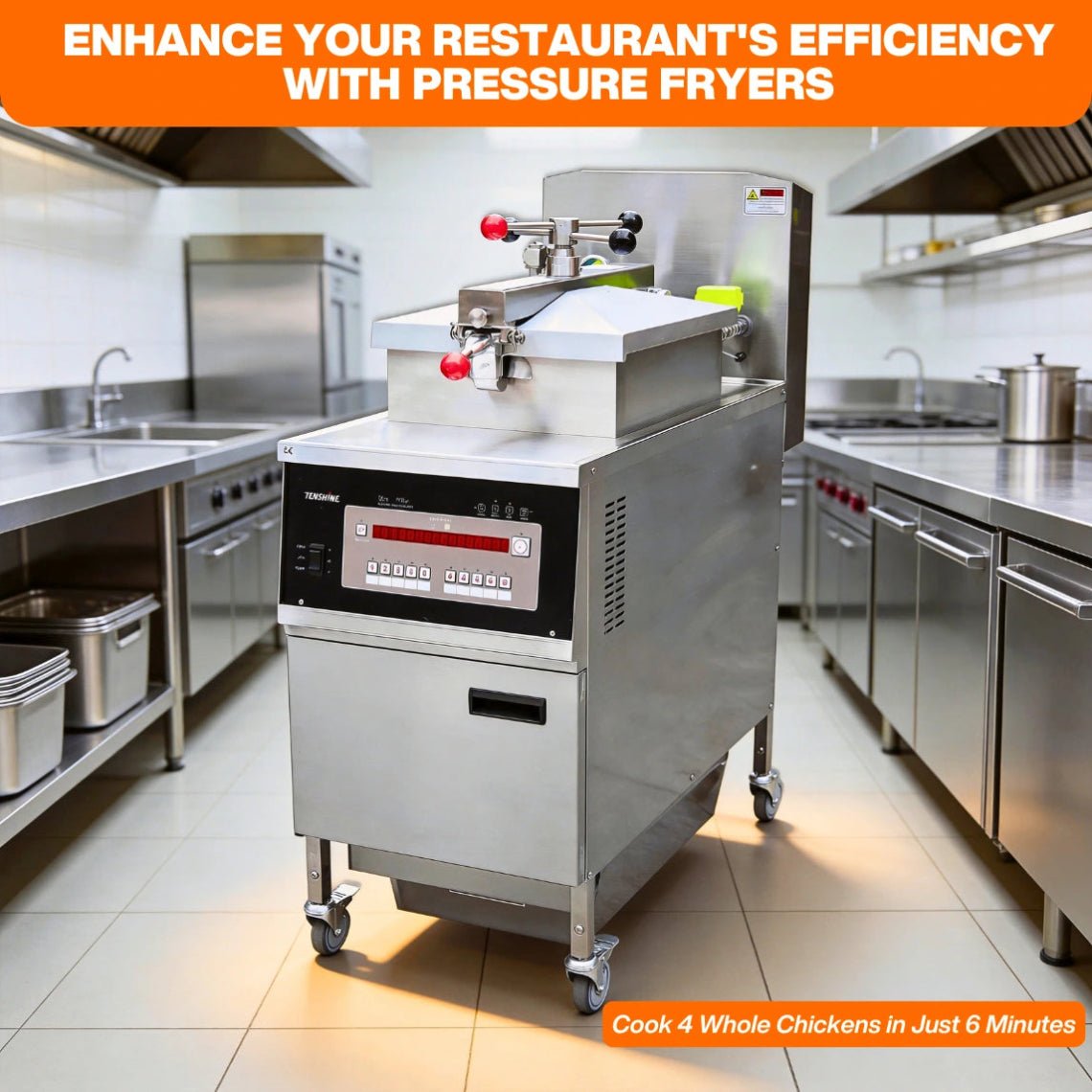

The Ultimate 4-to-6 Head Commercial Gas Pressure Fryer with Built-In Filtration Deliver authentic, moisture-locked Southern-style fried chicken without paying tens of thousands of dollars for 3-phase electrical panel upgrades. The Tenshine TS-GP800 Commercial Gas Pressure Fryer is purpose-built for brick-and-mortar QSR franchises, grocery deli counters, convenience stores, and older restaurant buildings with limited electrical amperage. Combining high-efficiency gas cross-burners (LPG or Natural Gas) with a sealed 12 PSI (0.085 MPa) pressurized cooking vessel and an integrated push-button oil filtration pump, it cooks bone-in chicken up to 30% faster while cutting monthly shortening expenses in half.

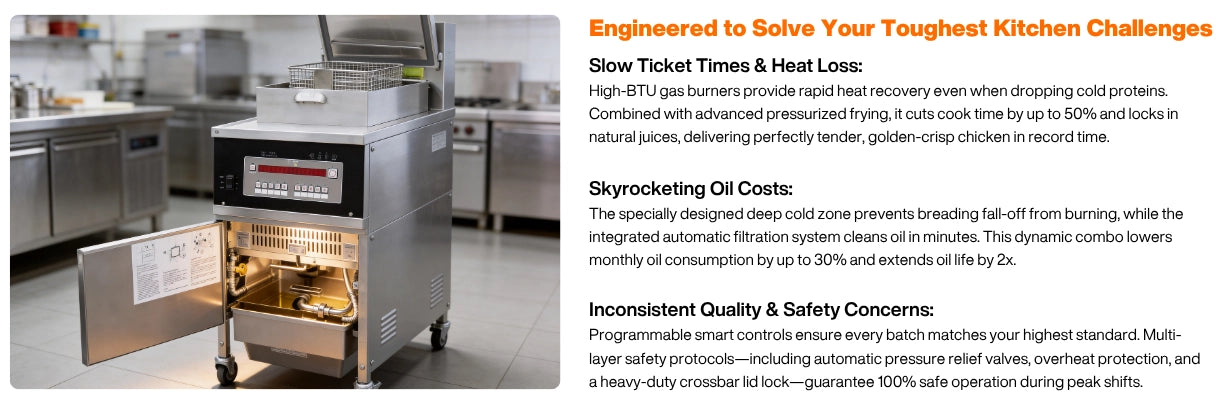

🚀 Key Engineering Features & BOH Operational Benefits
- High-Efficiency Cross-Burner Gas Matrix + Low-Draw 110V / 220V Controls Never let electrical infrastructure limit your fried chicken volume. The TS-GP800 uses a high-firepower cross-burner gas system regulated at 2.8 kPa (11.2" W.C.) for instant temperature recovery when frozen poultry is loaded. Meanwhile, the digital computer controller, automatic electronic ignition, solenoid exhaust valve, and 0.75 kW oil pump plug into a standard single-phase wall circuit—available in North American 110V–120V/60Hz or International 220V–240V/50-60Hz configurations!

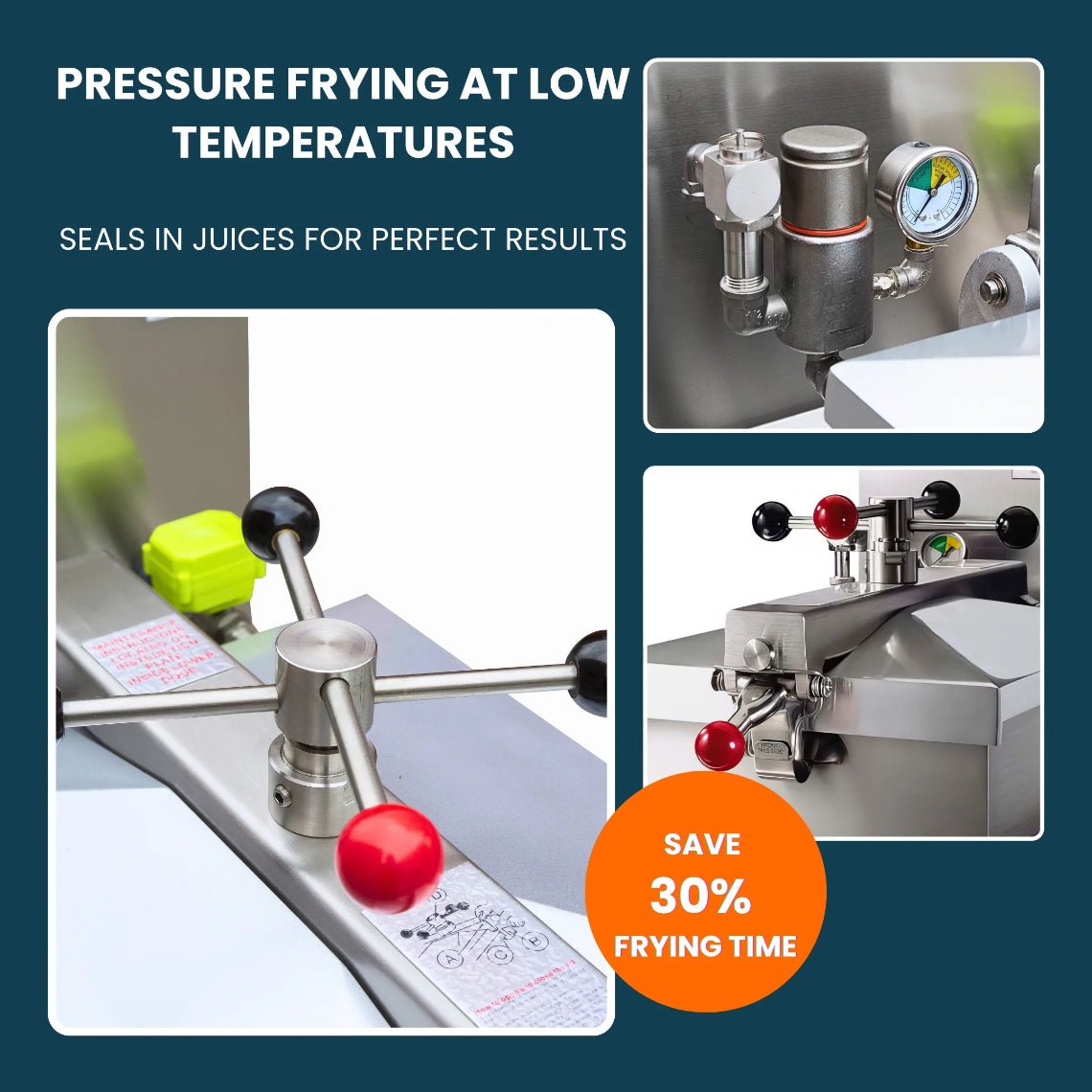

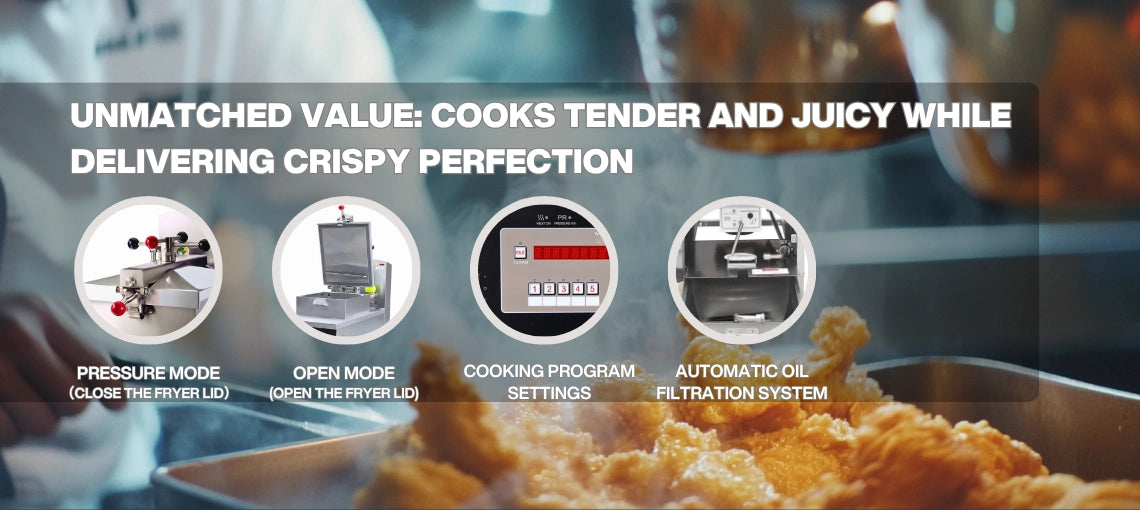

- 12 PSI (0.085 MPa) Sealed Pressure Frying & Red-Ball Spindle Lock Operating under a regulated 10.2–12.0 PSI (0.07–0.085 MPa green zone) working pressure, the TS-GP800 raises the boiling point of natural meat moisture—locking juices deep inside the bone while preventing grease from soaking into the breading. The cast-aluminum lid clamps securely via a heavy-duty crossbeam hook and clockwise screw spindle (with visual red-ball alignment). When the timer hits 00:00, the electronic solenoid valve opens automatically to vent steam back to 0 PSI.

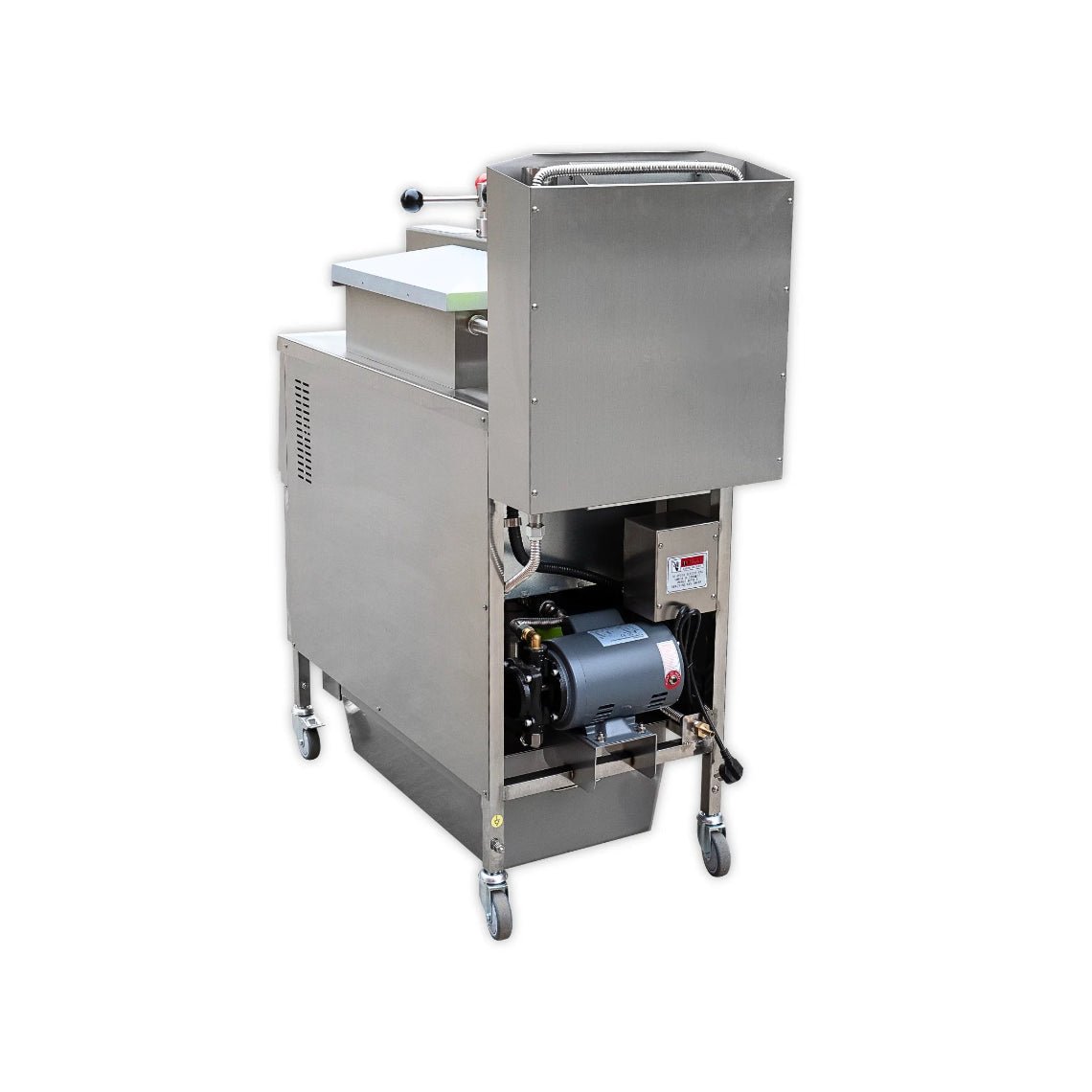

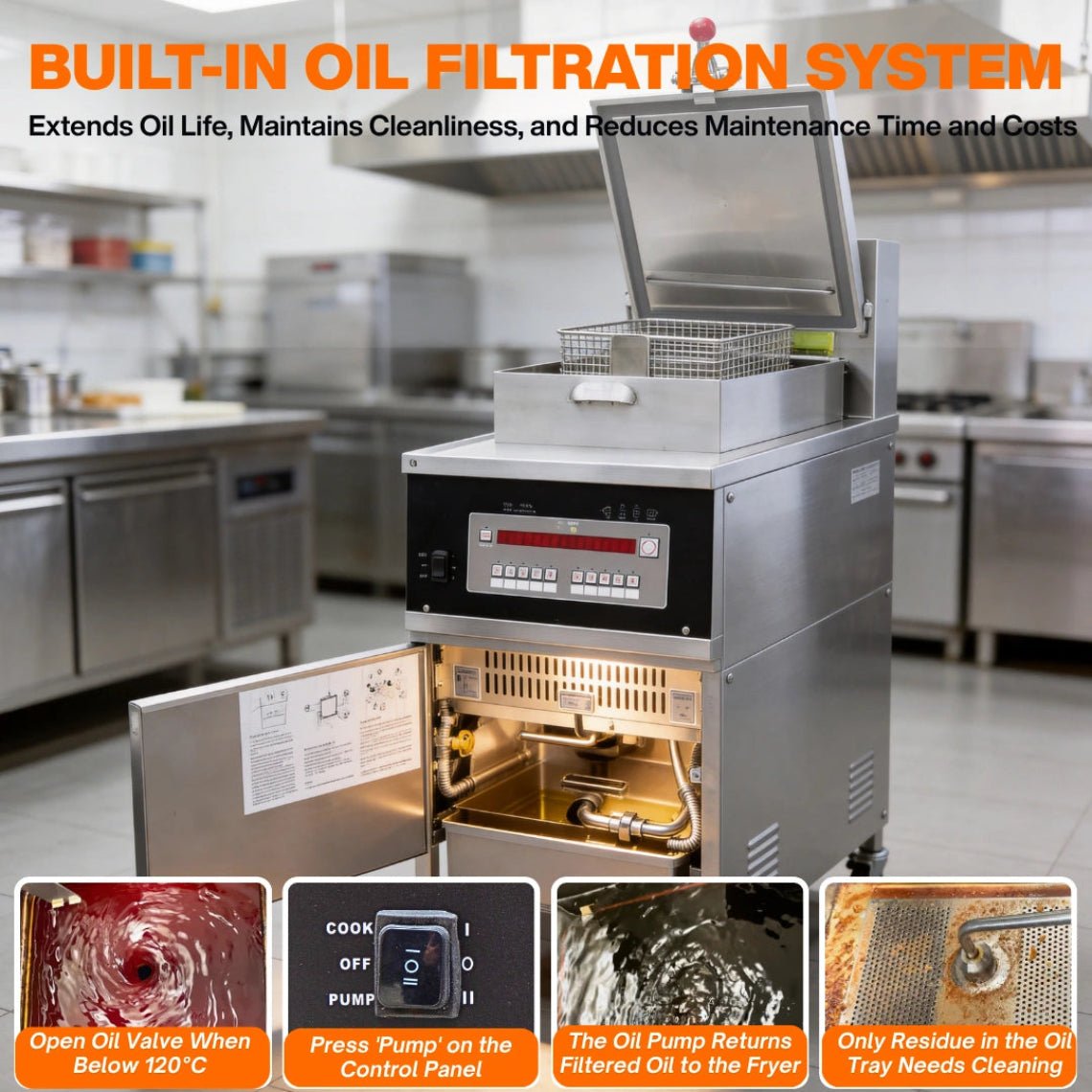

- Built-In 5-Minute Oil Filtration Pump (With Automatic Filter Valve) Stop carrying dangerous pots of hot grease across slippery floors. Once oil cools below 248°F (120°C), open the front drain valve to empty shortening into the lower stainless steel filter tank, close the drain valve, and flip the switch to "PUMP". The internal filter return valve opens automatically as the 0.75 kW pump circulates oil through heavy-duty filter envelopes—returning crystal-clear shortening to the vat in under 5 minutes and closing the valve automatically when turned off.

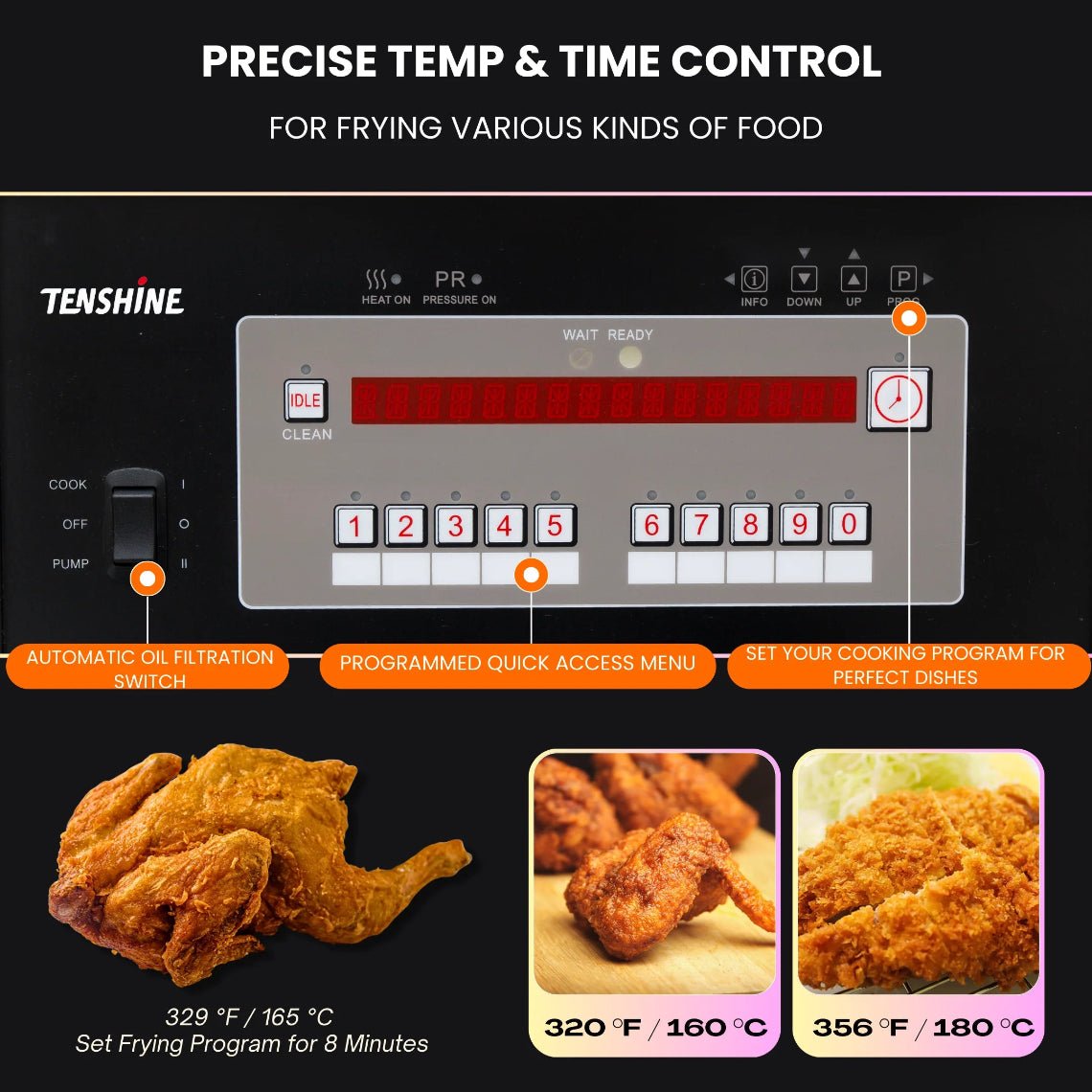

- 10-Channel Smart Computer Panel (IDLE Standby & CLEAN Boil-Out) Standardize recipe execution across every shift:
- 10 Programmable Recipe Keys (Keys 1–0): Store custom time, temperature, and pressure profiles for bone-in chicken, wings, tenders, and potato wedges.
- WAIT / READY & PR Indicators: Visual LED lights confirm when oil has reached target frying temperature (READY) and when the chamber is pressurized (PR).
- IDLE & CLEAN Modes: Press the IDLE/CLEAN button during slow afternoon hours to drop oil temperature and save gas, or use CLEAN mode during oil melt/boil-out maintenance.
- Multi-Layer Gas & Mechanical Safety Interlocks
- Automatic Electronic Ignition & Flame Supervision: Maintains reliable standby and main burner ignition; automatically cuts gas flow if the flame is ever interrupted.
- Dual Pressure Relief Valves: Automatic deadweight overflow valve maintains 10.2–12.0 PSI working pressure, backed by an emergency spring safety relief valve.
- 482°F (250°C) Manual-Reset High-Limit Thermostat: Automatically cuts heating power if oil temperature ever exceeds 482°F (250°C).

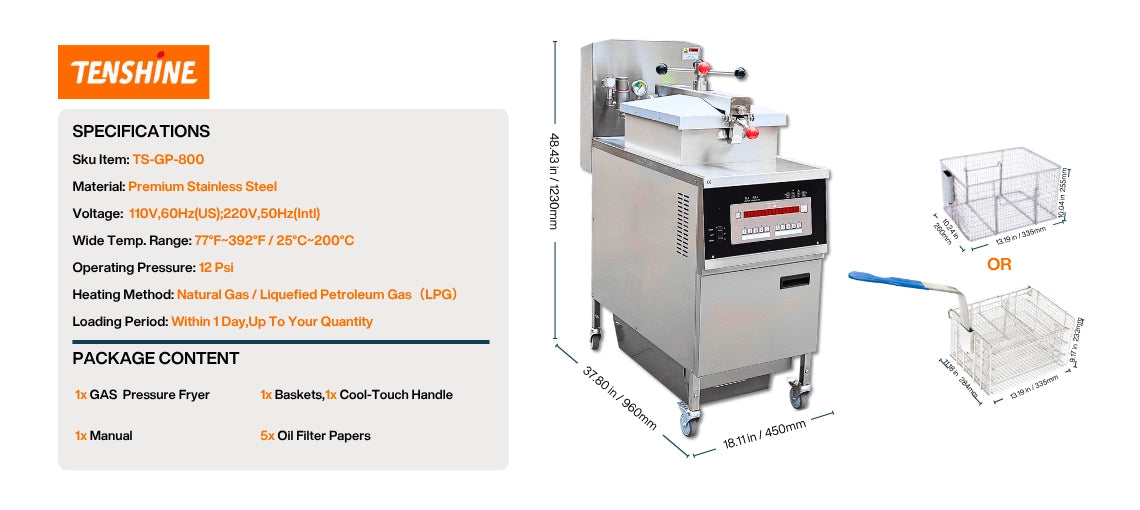

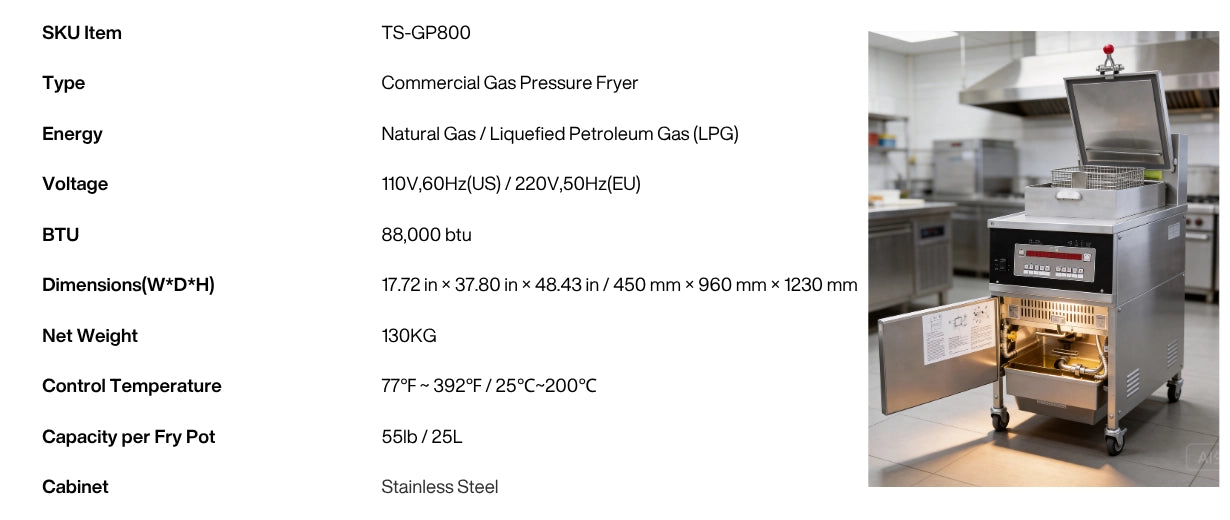

⚙️ Technical Specifications (Industrial Standard)
- Model / SKU: Tenshine TS-GP800 (4-to-6 Head Commercial Gas Pressure Fryer with Built-In Pump)
- Batch & Hourly Chicken Capacity: 4 to 6 Whole Chickens per 10-Min Batch; Up to 55 Lbs/Hr (25 kg/hr)

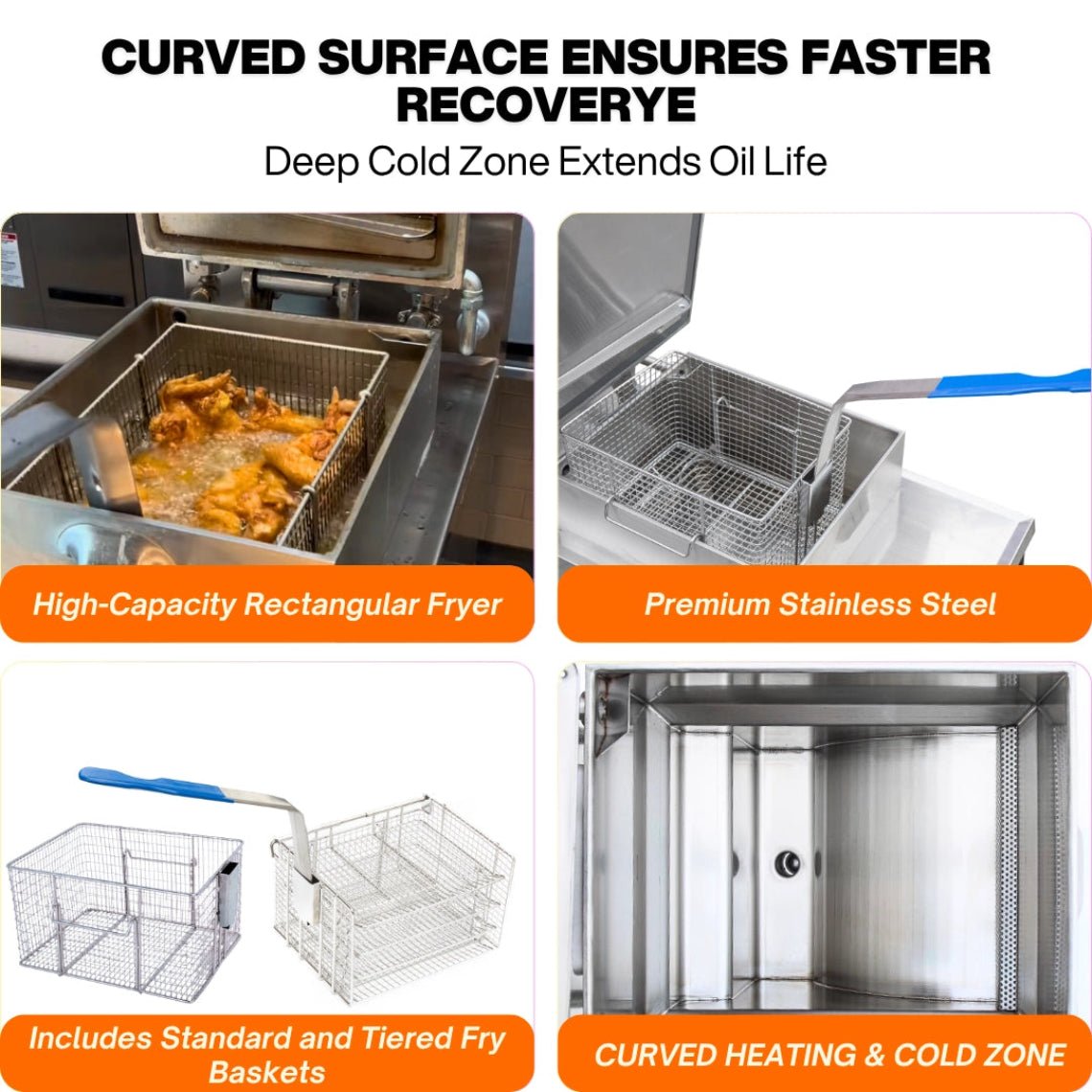

- Oil Vat Capacity: 55 Lbs / 6.3–6.6 Gallons (24–25 Liters — Heavy-Gauge 304 Stainless Steel Vat; fill 0.4" / 10 mm above heat tubes)
- Rated Working Pressure: 12.0 PSI / 0.085 MPa (Operating Green Zone: 10.2–12.0 PSI / 0.07–0.085 MPa) with Automated Solenoid Exhaust
- Gas Type & Consumption (Select Variant):
Liquid Propane Gas (LPG) or Natural Gas (NG)
Rated Gas Pressure: 2.8 kPa (11.2" W.C. — Includes Low-Pressure Regulator Valve)
Economical Gas Consumption: Approx. 1.06 lbs/hr (0.48 kg/h)
- Electrical Control Options (0.75 kW Single-Phase — Select Variant):
North America Standard: 110V–120V / 60Hz / Single-Phase
International & Storefront Standard: 220V–240V / 50-60Hz / Single-Phase
- Digital Controller: 10-Channel Computer Panel (Keys 1–0, 0–99.99 Min Timer, WAIT/READY LEDs, IDLE & CLEAN Modes)
- Temperature Control Range: Ambient (68°F / 20°C) to 392°F (200°C); 482°F (250°C) Manual-Reset High-Limit Limiter
- Built-In Oil Filtration: 0.75 kW Electric Filtration Pump, Automatic Return Valve & Lower Stainless Steel Filter Tank
- Ultra-Narrow Overall Dimensions (D x W x H): 37.8" x 17.7" x 48.4" (960 x 450 x 1230 mm)
- Net Weight: 330.7 lbs (150 kg) on Heavy-Duty Locking Swivel Casters
📦 Configuration & Bundle Options (Select Variant Above)
- Gas & Voltage Selection: Choose your exact kitchen combination—Liquid Propane (LPG) or Natural Gas (NG) paired with either North American 110V/60Hz or International 220V/50Hz control power.

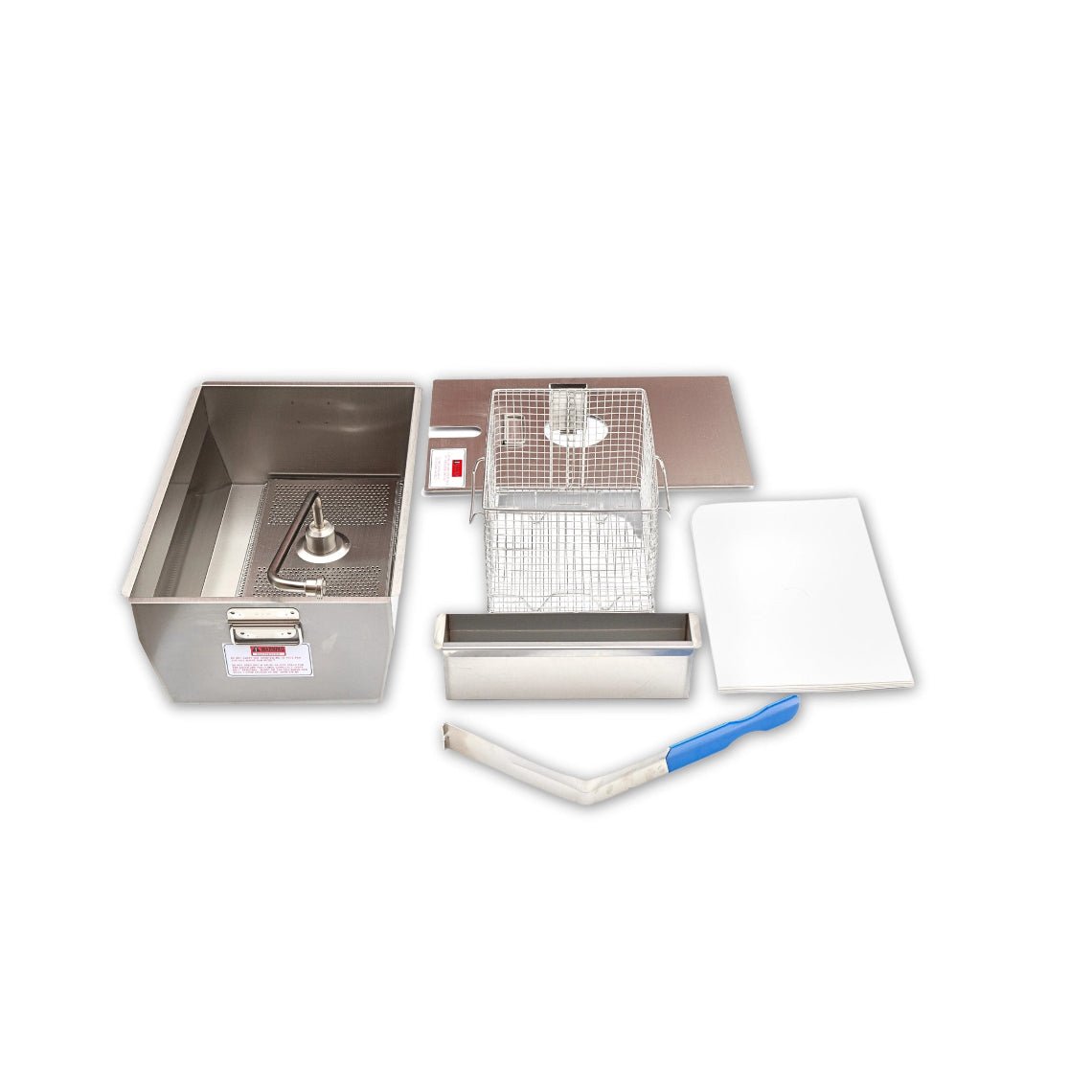

- Standard Package vs. QSR Pro Bundle: The Standard Package includes the complete TS-GP800 gas pressure fryer, stainless steel frying basket + handle, built-in filtration tank/pump assembly, starter filter bags, and low-pressure gas regulator. Upgrading to the QSR Pro Bundle adds an extended multi-month supply of heavy-duty filter envelopes, a spare high-temp lid sealing gasket, and vat cleaning brushes for zero-downtime franchise operations.
❓ Frequently Asked Questions (B2B QSR Buyer’s Guide)
Q1: Does the TS-GP800 work with North American 110V outlets as well as 220V?
A: Yes! Because gas burners provide all the thermal heating power, the electrical connection only powers the digital computer board, electronic igniter, solenoid exhaust valve, and 0.75 kW oil filtration pump. Simply select the "LPG + 110V/60Hz (North America Standard)" or "Natural Gas (NG) + 110V/60Hz (North America Standard)" variant above to plug directly into a standard US/Canadian 110V–120V commercial receptacle, or choose the 220V/50Hz option for international grids.
Q2: How do I operate the built-in oil filtration system safely?
A: After shutting off the main switch, allow the shortening to cool below 248°F (120°C). Open the front drain valve to empty the oil into the lower stainless steel tank fitted with a filter paper envelope, brush any crumbs from the vat, and close the drain valve. Press the main function switch down to "PUMP"—the internal filter return valve opens automatically and pumps purified shortening back into the pot in under 5 minutes. Switch back to "0" when finished.
Q3: What is the difference between the TS-GP800, the TS-GP25, and the TS-EP800?
A: All three models share our compact ~18"-wide 4-to-6 head floor footprint:
- TS-GP800 (This Model): Gas-heated (LPG/NG) with a 10-channel computer panel, automatic solenoid steam exhaust, and a built-in 0.75 kW oil filtration pump.
- TS-GP25 Manual Gas Pressure Fryer: Our budget-friendly gas model with manual controls and gravity oil draining (no internal filter pump) for mobile trailers and startups.

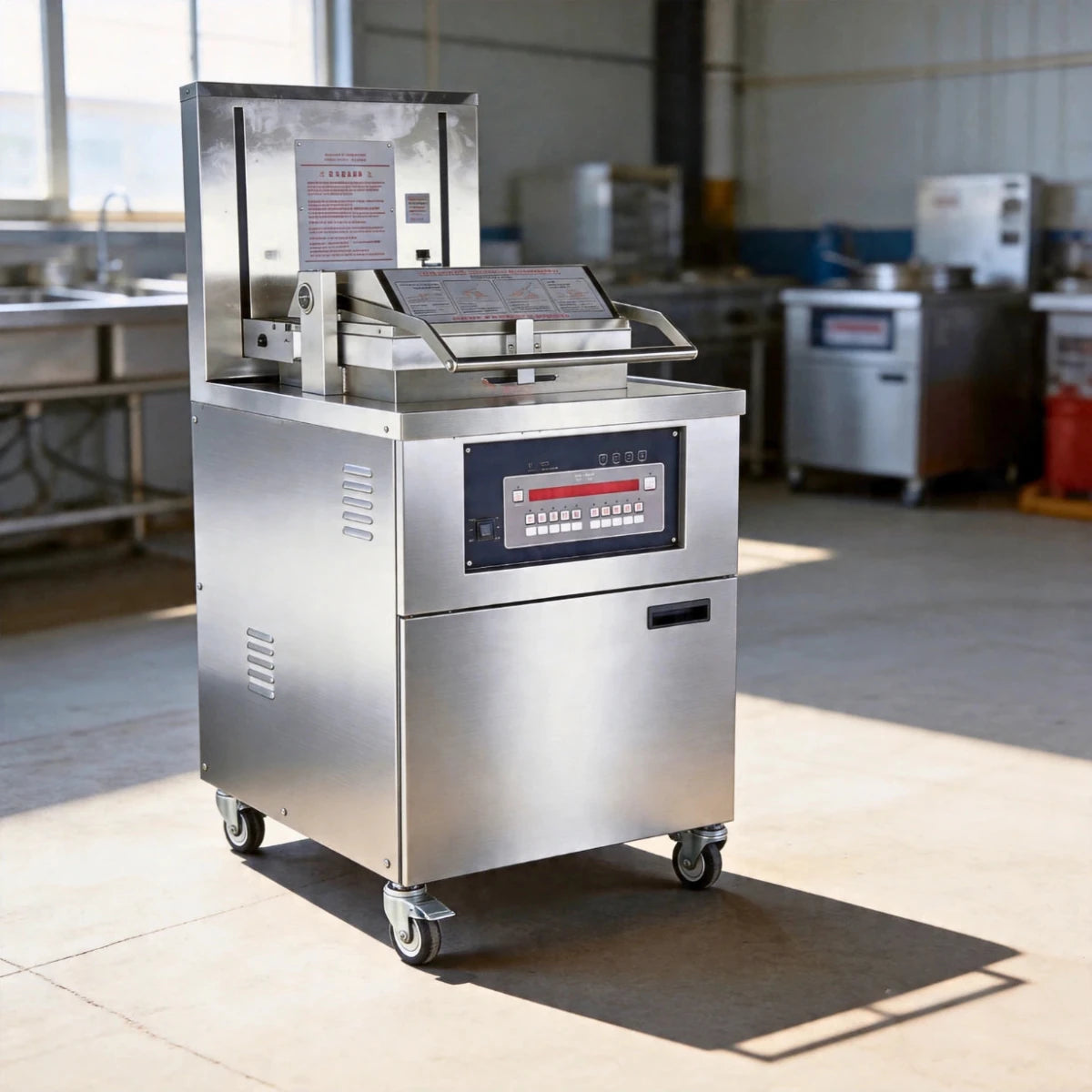

- TS-EP800 Electric Pressure Fryer: Our 13.5 kW 3-phase electric version of the GP800 for kitchens where open gas flames are restricted. Need double the batch output? Step up to our 8-head TS-GP5910 Auto-Lift Gas Pressure Fryer, or explore our full Commercial Pressure Fryers & Chicken Fryers collection.
🌎 Resumen en Español (Para LATAM y España)
¿Busca una freidora a presión comercial a gas de 4 a 6 cabezas con bomba de filtración de aceite integrada y panel computarizado de 10 memorias? La Tenshine TS-GP800 funciona con Gas Licuado (GLP/Propano) o Gas Natural (GN, consumo económico de 0.48 kg/h a 2.8 kPa) y solo requiere corriente monofásica estándar de 110V o 220V (0.75 kW) para el control digital, encendido electrónico y bomba de filtrado. Con una cuba de acero inoxidable 304 de 6.3 galones (24L / 55 lbs de aceite) en un gabinete ultracompacto de 17.7" (450 mm) de ancho, produce hasta 55 lbs/hora de pollo estilo sureño a 12 PSI (0.085 MPa).
