The Ultimate Plug-and-Play Pressure Frying Workhorse
Stop losing money on slow ticket times and bulky floor equipment that drains your electrical capacity. The Tenshine MDXZ-16 Commercial Countertop Pressure Fryer is built for relentless daily rushes in environments where simplicity and reliability are paramount. Whether you are running a high-volume mobile food truck in North America, a bustling street food stall in Asia, or a fast-paced diner kitchen, this compact unit delivers restaurant-quality pressurized frying without sacrificing valuable countertop space. By cooking food under a sealed 7.1 PSI (49.5 kPa) environment, it seals in natural moisture and reduces cook times by up to 30% compared to traditional open fryers.
🏆 Why Choose the MDXZ-16 Mechanical Control Model?
1.Dual-Voltage 110V / 220V Versatility (True Plug & Play)
Power your frying station anywhere. Unlike massive floor fryers that mandate expensive three-phase wiring, the MDXZ-16 is available in both 110V-120V (North America Standard) and 220V-240V (Global Commercial Standard) configurations. With its efficient 3000W (3kW) heating element, mobile food trucks and small kitchens can plug directly into standard high-amp circuits or generators to achieve rapid heat recovery and continuous high-yield frying.
2. Bulletproof Mechanical Dial Controls (Built for Hard Abuse)
Eliminate kitchen downtime caused by fragile digital electronics. Designed for high-heat, grease-heavy commercial environments, the MDXZ-16 relies on ultra-reliable mechanical dials. Chefs can intuitively adjust temperatures from 122°F to 392°F (50°C–200°C) and set the mechanical timer up to 30 minutes. No software glitches, no sensitive touchscreens—just pure, continuous operational reliability.
3. Generous 4.2 Gal (16L) High-Yield Vat Capacity
Fry larger batches with fewer refills. The optimized 4.2 Gallon (16L) working oil tank easily accommodates up to 3.3–4.0 lbs of food per load, allowing you to fry whole chickens, large orders of buffalo wings, potato wedges, or fish fillets. Its horizontal desktop footprint measures 20.5" x 15.6" x 19.7" (520 x 397 x 500 mm), perfectly sizing into tight prep lines.
4. Patented Flexible Beam Supporting Device & Safety Systems
Commercial kitchen safety engineered into the core superstructure. The MDXZ-16 incorporates an advanced mechanical pressure management system to protect operators during rapid service:
- Flexible Beam Safety System: If the primary working exhaust valve ever becomes obstructed by food particles, the heavy-duty overhead supporting beam automatically flexes to safely release excess steam pressure, guaranteeing 100% explosion-proof operation.
- Over-Temperature Protection Limiter: A built-in manual reset thermostat automatically interrupts power to the heating element if oil temperatures ever exceed safe thresholds (392°F / 200°C).
- Self-Weight Regulation: Keeps normal working pressure balanced consistently between 6.8–7.2 PSI for standardized crispiness.
5. 100% Food-Grade 304 Stainless Steel Construction
Sanitary, durable, and exceptionally easy to maintain. The exterior casing, pot lid, inner tank, and frying basket are fabricated from heavy-gauge 304 stainless steel to resist corrosion and meet strict health department codes. Features an easily accessible front drain valve with a safety latch for fast, mess-free end-of-shift oil filtration and disposal.

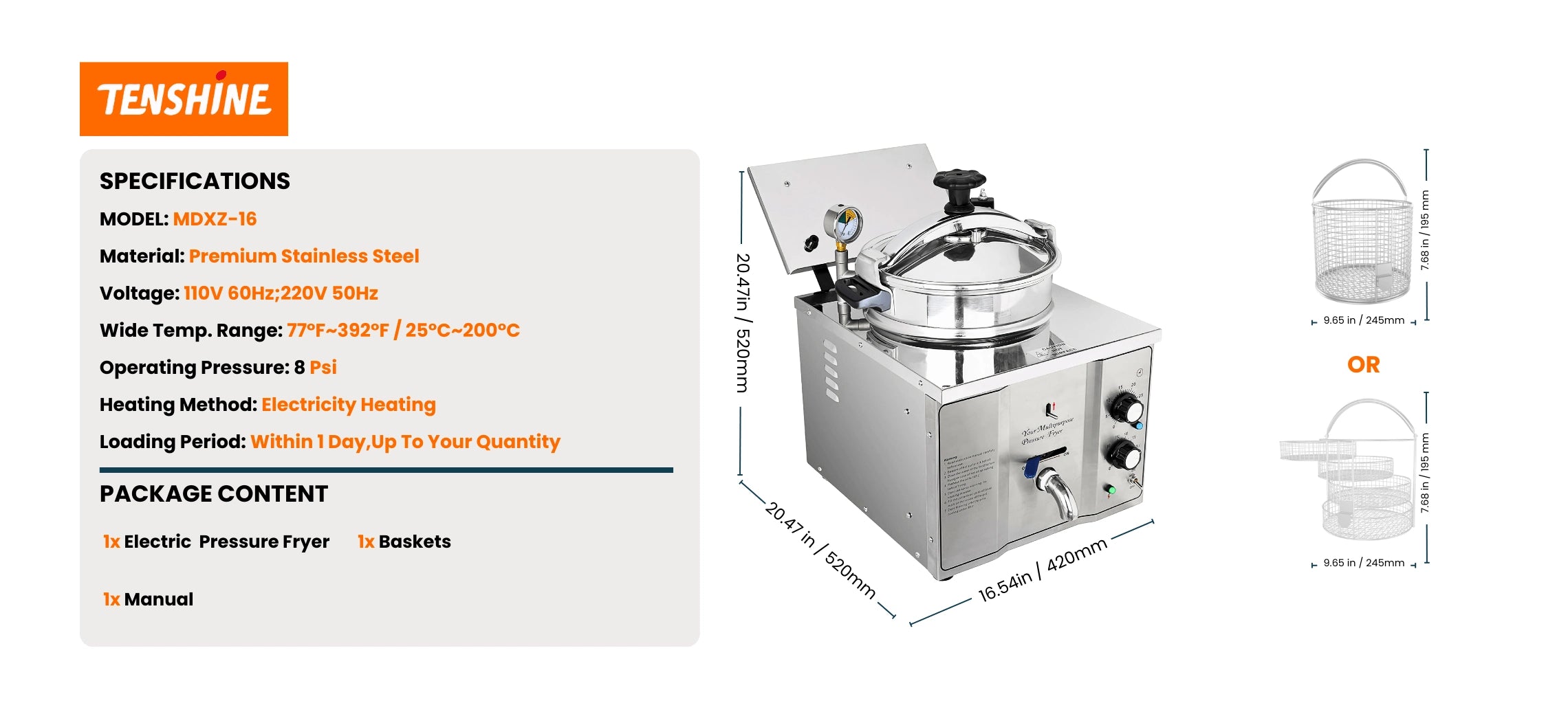

📊 Technical Specifications
- Model: Tenshine MDXZ-16 (Mechanical Dial Countertop Pressure Fryer)
- Target Application: Fried Chicken, Wings, Wedges, Fish Fillets & Tenders
- Voltage Options: 110V-120V / 60Hz OR 220V-240V / 50-60Hz (Select upon order)
- Rated Heating Power: 3000W (3 kW Commercial Element)
- Total Pot Volume: 4.2 Gallons (16 Liters / ~31.7 lbs Oil Capacity)
- Working Pressure: 6.8–7.2 PSI (49–49.5 kPa)
- Temperature Control Range: 122°F to 392°F (50°C to 200°C)
- Mechanical Timer Range: 0 to 30 Minutes
- Exterior Dimensions (W x D x H): 20.5" x 15.6" x 19.7" (520 x 397 x 500 mm)
- Frying Basket Dimensions: 9.6" x 8.3" (245 x 210 mm)
- Construction Material: Food-Grade 304 Stainless Steel
📦 What's in the Box?
- 1 x MDXZ-16 Mechanical Tabletop Pressure Fryer Main Unit
- 1 x Heavy-Duty 304 Stainless Steel Frying Basket with Ergonomic Handle & Hook
- 1 x Heavy-Duty Explosion-Proof Pot Lid with Sealing Ring & Pressure Gauge
- 1 x Commercial Operation Manual & Frying Time Guide
❓ Frequently Asked Questions (Q&A)
Q: Should I choose the 110V or 220V version for my food truck?
A: If your food truck is operating in North America with standard 110V-120V generator outlets or campground shore power, select the 110V version. It is specifically designed for plug-and-play convenience without requiring a 220V step-up transformer. If you are operating in Southeast Asia, Europe, or have a dedicated 220V commercial generator, select the 220V version for maximum electrical efficiency.
Q: Why choose mechanical dials over digital controls?
A: Mechanical dials offer unmatched durability in high-heat, grease-heavy environments where electronic motherboards or digital touchscreens might fail. They allow chefs to make instant, tactile temperature and timing adjustments on the fly without navigating digital menus—making the MDXZ-16 the preferred choice for fast-paced street food vendors and diners.
Q: How does the flexible beam safety system protect my staff?
A: Unlike standard pressure cookers, the MDXZ-16 features a patented elastic overhead crossbar. During normal operation, it seals the lid tightly. However, if excess pressure ever builds up due to a clogged vent, the beam physically flexes upwards to let trapped steam escape safely around the rim, preventing dangerous pressure spikes.
Q: How do I drain and clean the unit at the end of the day?
A: Ensure the unit is unplugged and wait for the oil to cool completely. Simply release the safety insurance latch on the front mechanical drain valve and turn the handle to empty the used oil into a filter container. Wash the interior stainless steel vat with warm water and degreaser, taking care not to submerge the external electrical dial unit in water.
