The Highest ROI Gas Workhorse: Built-in Filtration Meets Simple 10-Key Preset Automation
Deliver authentic, juicy, original-recipe Southern fried chicken while slashing your equipment overhead and eliminating the need for expensive electrical panel upgrades with the Tenshine TS-GP600 Commercial Gas Pressure Fryer. Purpose-built as a budget-friendly, industrial floor model for high-volume quick-service restaurants (QSRs), grocery deli counters, and brick-and-mortar fried chicken franchises lacking 3-phase electrical infrastructure, this gas frying system solves the biggest operational bottlenecks in stationary foodservice. It achieves massive batch output and fast heat recovery without the premium price tag of a complex computer interface or the thousands of dollars required to bring high-amp commercial power into your building.
While standard open deep fryers produce greasy, dried-out proteins and waste expensive cooking oil, the TS-GP600 utilizes 12 Psi (0.085 MPa) sealed pressure frying technology. By raising the oil boiling point and sealing natural moisture inside the meat, it cooks poultry up to 30% faster while keeping shortening from soaking into the breading. Furthermore, with our integrated push-button oil filtration pump, your staff can purify hot shortening safely in minutes—while the streamlined 10-Key Programmable Panel ensures 100% menu repeatability across every shift.
🏆 ENTERPRISE QSR STOREFRONT VERIFIED:
Heavy-duty 304 stainless steel commercial gas pressure fryer engineered to standardize fried chicken output with exceptional budget efficiency for locations lacking 3-phase grids.
🔥 MULTI-GAS COMPATIBLE (LPG / NG):
Advanced cross-burner tubes deliver explosive thermal output. Configured at the factory for your choice of Liquid Propane (LPG) or Natural Gas (NG). (Requires a standard low-draw ~220V 50/60Hz 0.75kW plug for controls and filter pump).
🔄 BUILT-IN RAPID OIL FILTRATION PUMP:
Integrated recirculation filter pump purifies hot shortening in minutes, extending oil lifespan by up to 50% and eliminating manual grease handling.
⚙️ 10-KEY PROGRAMMABLE PRESET PANEL:
Intuitive digital controller stores up to 10 distinct cooking menus (Keys 1–0), allowing staff to fry different proteins with zero manual time or temperature guesswork.
🚀 Key Features & Operational Benefits:
1.High-Efficiency LPG / NG Burner Matrix (Zero 3-Phase Power Needed)
Never let limited electrical wiring restrict your menu volume. The TS-GP600 utilizes Liquid Propane (LPG) or Natural Gas (NG) as its primary heating source, consuming an economical 1.05 lbs/hr (approx. 0.48 kg/h) of fuel. Its advanced cross-burner system delivers explosive heat recovery the moment cold proteins are dropped into the vat. A low-draw ~220V 50/60Hz (0.75 kW) electrical connection powers the digital motherboard, automated ignition, solenoid exhaust valves, and filter pump—allowing you to operate a high-output industrial pressure fryer from a standard wall receptacle.
2. Intuitive 10-Key Programmable Preset Controller (Zero Staff Guesswork)
Standardize your menu quality regardless of kitchen staff turn-over. The TS-GP600 features an intuitive electronic controller equipped with 10 dedicated preset buttons (Keys 1 through 0). Kitchen managers can easily program and lock customized time and temperature profiles for ten different menu items (e.g., Key 1 for 8-Head Chicken at 329°F / 165°C for 10 minutes; Key 2 for Wings). Front-line cooks simply load the basket, press the corresponding product key, and let the machine automate the cook cycle.
3. Built-in Rapid Oil Filtration Pump (Slashes Shortening Costs by 50%)
Cooking oil represents one of your highest ongoing operational expenses. The TS-GP600 features an integrated recirculation filtration pump system. Simply open the front drain valve, empty the shortening into the lower filter caddy, and toggle the power switch to "PUMP". The internal 0.75 kW motor forces shortening through heavy-duty filter envelopes, trapping carbonized breading crumbs and returning clean, purified oil back into the vat in under 5 minutes.
4. 0.085 MPa Sealed Pressure Frying (Crispier, Juicier Chicken)
Built to the exact durability standards required by world-leading fried chicken franchises, the cooking vessel operates under a controlled 12 Psi (0.085 MPa) working pressure. This pressurized environment forces thermal energy directly to the bone while locking natural juices and signature spices inside the meat. The result is golden, restaurant-quality chicken holding significantly less grease than open-fried chicken.
5. Multi-Layer Mechanical & Gas Safety Interlocks
Operator safety is our absolute priority. The TS-GP600 protects your team with redundant safety systems:
- Automatic Electronic Ignition & Flame Failure Protection: Ensures open flame reliability; automatically alarms and cuts gas flow if the burner flame extinguishes.
- Automatic Overflow Release Valve: Regulates and maintains working pressure invariant between 10–12 Psi (0.07–0.085 MPa).
- Emergency Safety Relief Valve: An independent spring-loaded valve that automatically opens if vat pressure exceeds safe operating limits.
- Ergonomic Crossbeam Lid Lock: Heavy-duty threaded screw spindle and crossbeam hook mechanically clamp the lid.

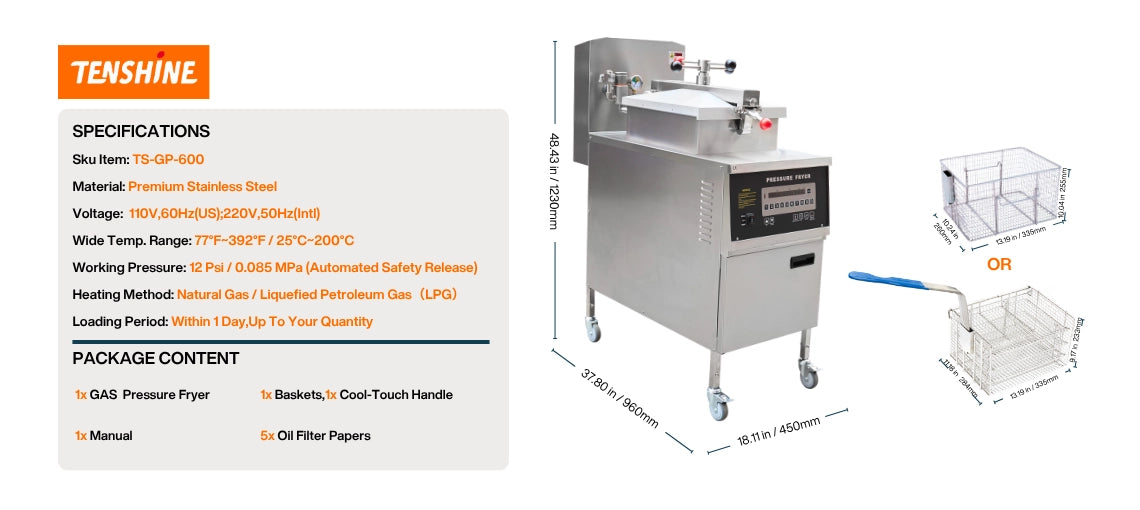

⚙️ Technical Specifications (Industrial Standard)
- SKU Item: Tenshine TS-GP600 (Heavy-Duty 10-Key Preset Gas Filter Series )
- Equipment Category: Commercial Gas Pressure Fryer / Fried Chicken Machine with Built-in Pump
- Control Panel Architecture: 10-Key Programmable Preset Controller (Keys 1–0) with digital LED display
- Primary Fuel & Energy Source: Liquid Propane (LPG) or Natural Gas (NG) (Please specify gas type upon ordering).
- Fuel Consumption Rate: Approx. 1.05 lbs/hr (0.48 kg/h) economical gas consumption
- Specified Gas Working Pressure: 2.8 KPa (Equipped with commercial low-pressure regulating valve)
- Electrical Control Requirement: ~220V / 50-60Hz Single-Phase (Rated Input Power: 0.75 kW)
- Oil Vat Capacity: 6.6 Gallons / 24 Liters (approx. 55 lbs of commercial shortening)
- Hourly Production Output: Approx. 55 lbs/hr (25 kg/hr) — cooks 4 to 6 whole chickens per 10-minute batch
- Rated Working Pressure: 12 Psi / 0.085 MPa (85 KPa) with automatic solenoid exhaust regulation
- Operating Temperature Range: 68°F – 392°F (Room Temp – 200°C) adjustable thermostat
- Electronic Timing Range: 0 – 90 Minutes programmable countdown with audible completion alarm
- Unit Exterior Dimensions: 17.7" W x 37.8" D x 48.4" H (450mm W x 960mm D x 1230mm H)
- Unit Net Weight: 330.7 lbs (150 kg) — heavy-duty 304 stainless steel floor model with locking swivel casters
- Filtration Architecture: Built-in Automatic Oil Filtration Pump System with lower oil caddy and filter screens.
❓ Frequently Asked Questions (FAQ)
Q: What is the main difference between the TS-GP600 and the TS-GP800 models?
A: Both models share the exact same industrial gas performance: a high-efficiency LPG/NG burner matrix, a 24L vat, an output of 4 to 6 whole chickens per batch, and a built-in oil filtration pump. The difference lies in the controller: the TS-GP600 features a streamlined 10-Key Programmable Panel (Keys 1–0) designed for straightforward, push-button preset simplicity and a lower initial purchase price, whereas the TS-GP800 features a more advanced, multi-menu computer interface.
Q: Why choose the TS-GP600 gas pressure fryer instead of an electric model like the TS-EP600?
A: Electric pressure fryers require high-amp 3-phase electrical grids (e.g., 13.5 kW), which cost thousands of dollars to install in older commercial buildings or storefront locations. The Tenshine TS-GP600 uses Liquid Propane (LPG) or Natural Gas (NG) for explosive heating power, requiring only a standard low-draw ~220V (0.75 kW) electrical connection to run the control board and filter pump. It is the ultimate solution for stationary kitchens with restricted electrical capacity.
Q: How do I specify whether I need Natural Gas (NG) or Liquid Propane (LPG)?
A: When adding the item to your cart or speaking with your dedicated account manager, simply select or state your required gas configuration. We custom-build and configure the internal gas manifold, burner nozzles, and 2.8 KPa low-pressure regulating valves at our factory so that your unit arrives 100% plug-and-play ready for your specific fuel source.
Q: How does the automatic ignition and flame safety system work?
A: The TS-GP600 features digital electronic ignition. When you press a programmed recipe button (e.g., Key 1), the controller automatically opens the gas solenoid and ignites the burner. If the open flame is accidentally extinguished, the integrated flame failure sensor immediately triggers an audible alarm and shuts off the main gas valve to prevent dangerous gas leaks.
Q: How do I safely release pressure before opening the fryer lid?
A: The machine is designed with automatic exhaust logic. When the countdown timer reaches zero, the burner cuts off and the exhaust solenoid valve opens automatically to release steam from the pot. Once the steam is completely exhausted and the pressure gauge drops to "0" Mpa (wait 30 seconds), loosen the threaded screw spindle, press the crossbeam down slightly, unhook the front lock, and swing the lid open safely from the side.
🌎 Resumen en Español (Ideal para LATAM y España)
¿Busca la freidora a presión comercial a gas con el mayor retorno de inversión (ROI) para su pollería o cadena de comida rápida sin gastar miles de dólares en instalaciones eléctricas trifásicas? La Freidora a Presión a Gas Comercial Tenshine TS-GP600 (LPG / NG) combina un sistema de filtración de aceite integrado con un panel de control programable simplificado de 10 teclas (Teclas 1–0), ofreciendo una solución de grado industrial a un precio mucho más accesible. Equipada con quemadores de alta eficiencia para Gas Licuado de Petróleo (GLP) o Gas Natural (GN) y un bajo consumo eléctrico de control (~220V / 0.75 kW), produce hasta 55 libras (25 kg) de pollo frito por hora. Al operar bajo un ambiente sellado a presión de 12 Psi (0.085 MPa), eleva el punto de ebullición para sellar los jugos naturales de la carne. Su panel de 10 teclas permite a su personal freír con presionar un solo botón, mientras que su sistema de filtración por bomba integrado limpia el aceite en menos de 5 minutos, reduciendo sus costos de aceite hasta en un 50%. ¡Aumente la rentabilidad de su local hoy mismo! Contáctenos por WhatsApp para cotizaciones de envío directo de fábrica.
Does your kitchen only support electric power? Explore our TS-EP600 Commercial Electric Pressure Fryer.
