Heavy-Duty Commercial 6-Row Automatic Mini Donut Machine & Digital Fryer (LBD-6, 2,500+ Pcs/Hr)

Preço de venda
$899.00
Preço regular
$1,300.00
Você salva
$401.00 (31%)

The Tenshine LBD-6 (Flagship 6-Row Digital Edition) is an industrial-grade commercial 6-row automatic mini donut machine engineered specifically for high-traffic state fairs, amusement parks, stadium concessions, and large-scale catering. Powered by a high-recovery 2.0 kW–3.0 kW (110V/220V) heating system, a massive 10.0-quart (9.5L) swing-away batter hopper, and a 4.5-gallon (17L) oil vat, it effortlessly produces 2,500 to 2,700+ bite-sized mini donuts (0.8"–2.0" / 20–50 mm) per hour. By combining an upgraded anti-jam pull-out flipping track and digital PLC batch counter with 5-level thickness control, it maximizes hourly profit margins while eliminating manual labor, serving as an enterprise-grade alternative to traditional Western foodservice brands.

Manuals, Wiring & Spec Sheets (PDF)

📄 Download Official Tenshine LBD-6 & LBD-4 Commercial 6-Row Mini Donut Machine Operator & Service Manual (PDF)

  • Flagship 6-Lane Engineering Specs: Covers the LBD-6 6-Row Electronic flagship (41.9 lbs / 19 kg net weight, 19.7" x 21.7" x 17.7" / 500 x 550 x 450 mm footprint) alongside LBD-4 4-row models on AC 110V/60Hz or 220V/50-60Hz power.
  • Digital Touchpad & 5-Gear Plunger Calibration: Details manual Drop/Flip test switches vs. 100% Auto conveyor mode, TEMP-C oil temperature calibration (356°F–392°F / 180°C–200°C), 6-digit LED counter reset, and the 5-position mechanical batter weight dial.
  • Main V1.0 Motherboard Wiring Schematic: Full-color PCB layout illustrating the J4 Hopper Drop Limit Switch socket, J5 Flip Track Limit Switch socket, and J22 Thermocouple sensor terminals.
  • E1 / E2 / E3 Self-Diagnostic Troubleshooting: Step-by-step field service protocol for resolving E1 (Flip linkage/J5 switch contact), E2 (Plunger drop linkage/J4 switch contact), and E3 (J22 thermocouple circuit inspection) to guarantee zero festival downtime.
Voltage:
110V–120V / 60Hz (US Standard)

Product variant with selected options does not exist!

Em estoque e pronto para envio
🌍 Global Orders: $99 Freight Deposit (Final shipping balance quoted & billed separately before dispatch.)

Frequently Bought Together

American Express
Apple Pay
Bancontact
Google Pay
iDEAL Wero
Mastercard
MB WAY
Shop Pay
Union Pay
Visa
Email or WhatsApp Us Now

🛡️ Risk-Free: Protected by Tenshine's 1-Year Commercial Parts Warranty.
💬 Enterprise Support: Need a proforma invoice, wire transfer instructions, or volume pricing? Chat with our B2B specialists instantly.

First image of detail page
    High-volume commercial donut maker machine delivering 2500 pieces per hour for professional bakery display cases
Product Highlights
    Key features of the LBD-6 commercial automatic donut making machine including heavy-duty design and 2500 per hour capacity
Brand banner
    Freshly fried donuts produced by the Tenshine desktop automatic donut maker machine for high-traffic bakeries
Tenshine foodservice solutions for QSR & restaurants. Factory-direct commercial pressure fryers, griddles, prep tables & soft serve machines with US free DDP!
First image of detail page
    High-volume commercial donut maker machine delivering 2500 pieces per hour for professional bakery display cases
second sheet of detail
    The ultimate donut making solution featuring intelligent control and large 9.5L capacity on the heavy-duty donut maker machine
Product Diagram 1
    Tenshine LBD-6 commercial automatic donut making machine frying high-volume batches of mini donuts
Product Diagram 2
    Zero jam elevated guide rails and smart digital control on the 6-row commercial automatic donut making machine
Product Diagram 3

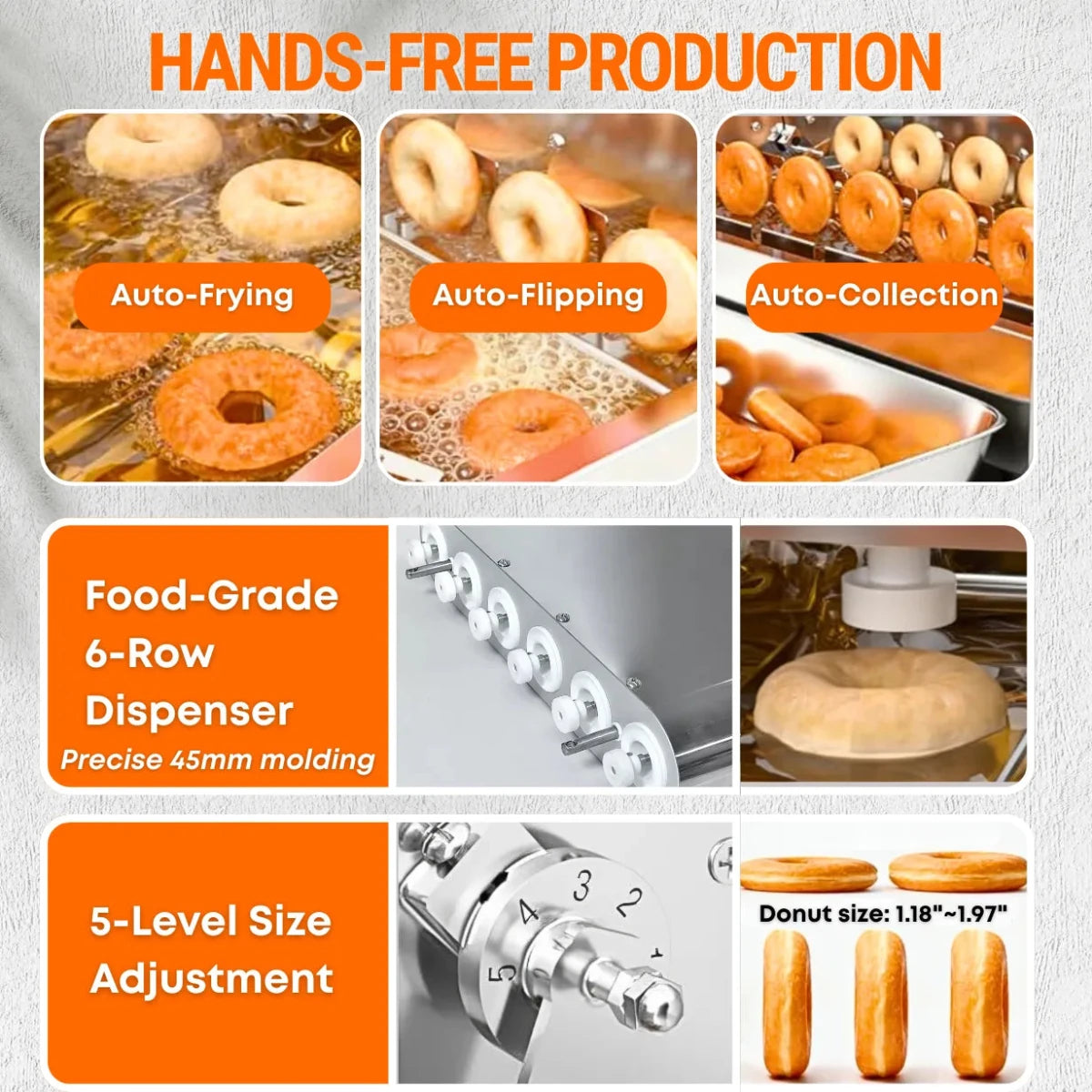

    Hands-free production and 5-level size adjustment on the fully automatic commercial donut maker machine
Product Diagram 4
    Chef using the LBD-6 commercial automatic donut making machine delivering 2500 pieces per hour for busy kitchens
Product Diagram 5

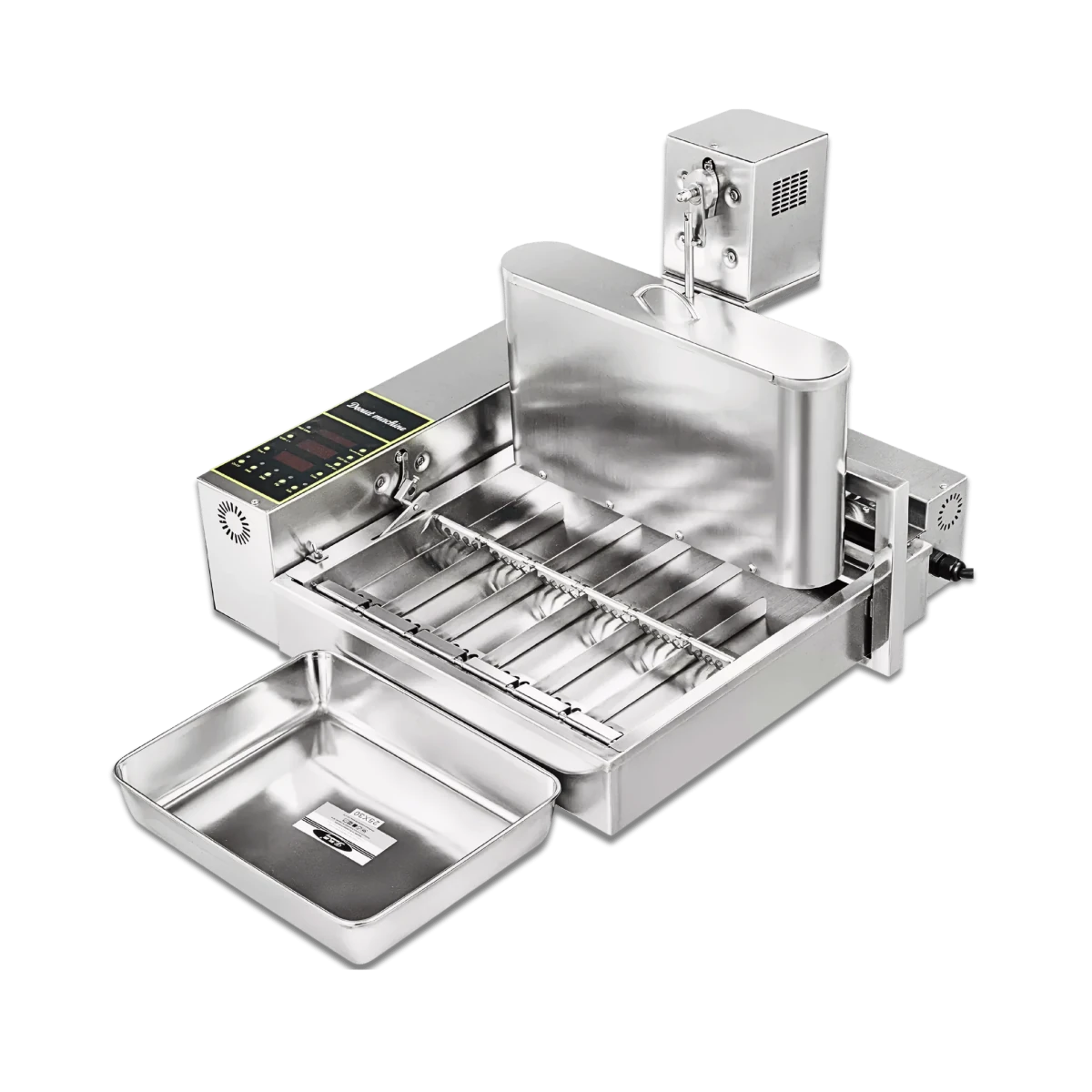

    Front view of the Tenshine LBD-6 commercial automatic donut making machine showing the robust 6-row dispensing system
Product Diagram 6
    Factory-direct Tenshine commercial 6-row donut maker machine built for high-volume kitchen demand

    🏆 ENTERPRISE VERIFIED: Heavy-gauge 100% food-grade 304 stainless steel construction built for non-stop amusement park, carnival, and festival rushes.

    🚀 FLAGSHIP 6-LANE OUTPUT: 6 synchronized 1.0" (25 mm) stainless steel plungers churn out 2,500 to 2,700+ golden mini donuts per hour.

    🛤️ ANTI-JAM ELEVATED GUIDE RAILS: Upgraded pull-out flipping rack and high-clearance lane dividers eliminate ring overlapping and conveyor jams.

    Dominate High-Traffic Festivals & Concessions with 2,500+ Mini Donuts Per Hour When festival queues stretch down the block, a single-lane or 4-lane fryer can quickly become a bottleneck. Engineered specifically for high-volume state fairs, amusement parks, stadium concessions, and large-scale catering, the Tenshine LBD-6 (6-Row Digital Flagship) is our highest-output countertop mini donut machine. Integrating 6 parallel plunger molds with an expanded 4.5-gallon (17L) frying vat and intelligent digital PLC controls, this powerhouse automates 100% of the forming, dropping, conveying, flipping, and outfeed collection—turning pennies of batter into massive hourly profits without manual labor.

    🚀 Why the LBD-6 is the Ultimate High-Capacity Upgrade

    • Unmatched 6-Row Parallel Productivity (2,500+ Pcs/Hr) Multiply your revenue per square foot. While standard units process 1 or 4 lanes, the LBD-6 utilizes 6 synchronized 1.0" (25 mm) stainless steel plungers to drop six rows of batter simultaneously. It delivers 2,500 to 2,700+ bite-sized mini donuts (0.8" to 2.0" / 20–50 mm finished diameter) every single hour—50% more output than 4-row models in a footprint just 5.9 inches (150 mm) wider!
    • Upgraded Anti-Jam Pull-Out Flipping Track & Elevated Rails Tired of mini donuts drifting across lanes or sticking together mid-fry? The LBD-6 features newly engineered elevated lane guide rails and a precision pull-out mechanical flipping rack. Every ring stays strictly aligned in its dedicated oil channel for a uniform flip and smooth outfeed discharge.
    • Expanded 10.0 Qt Hopper & 4.5 Gal Oil Vat (Less Refilling Downtime) Sustain continuous peak-hour output without constant interruptions. The oversized 10.0-quart (9.5L) swing-away batter hopper and deep 4.5-gallon / 18.0-quart (17L) stainless steel frying tank hold nearly 70% more batter and oil than standard 4-row units, stabilizing oil temperature recovery when dropping six rings at once.
    1. Smart Digital E-Box with 6-Digit Counter & E1/E2/E3 Diagnostics Take full command of your production line:
    2. Digital PID Thermostat & TEMP-C Calibration: Locks in exact frying temperatures between 356°F and 392°F (180°C–200°C) for crispy outsides and fluffy centers.
    3. 6-Digit LED Batch Counter: Tracks every mini donut produced for airtight cash and inventory control.
    4. Onboard Self-Diagnostics: Real-time Main V1.0 controller displays instant E1, E2, or E3 alerts if a limit switch or thermocouple ever loosens during transport.
    • 5-Gear Mechanical Batter Thickness Dial & Swing-Away Cleaning Turn the 5-level mechanical weight adjuster on the drive head to customize ring thickness from light and airy to rich and cakey. At closing time, simply swing the rotating hopper head aside and slide out the conveyor track for rapid, code-compliant sanitation.

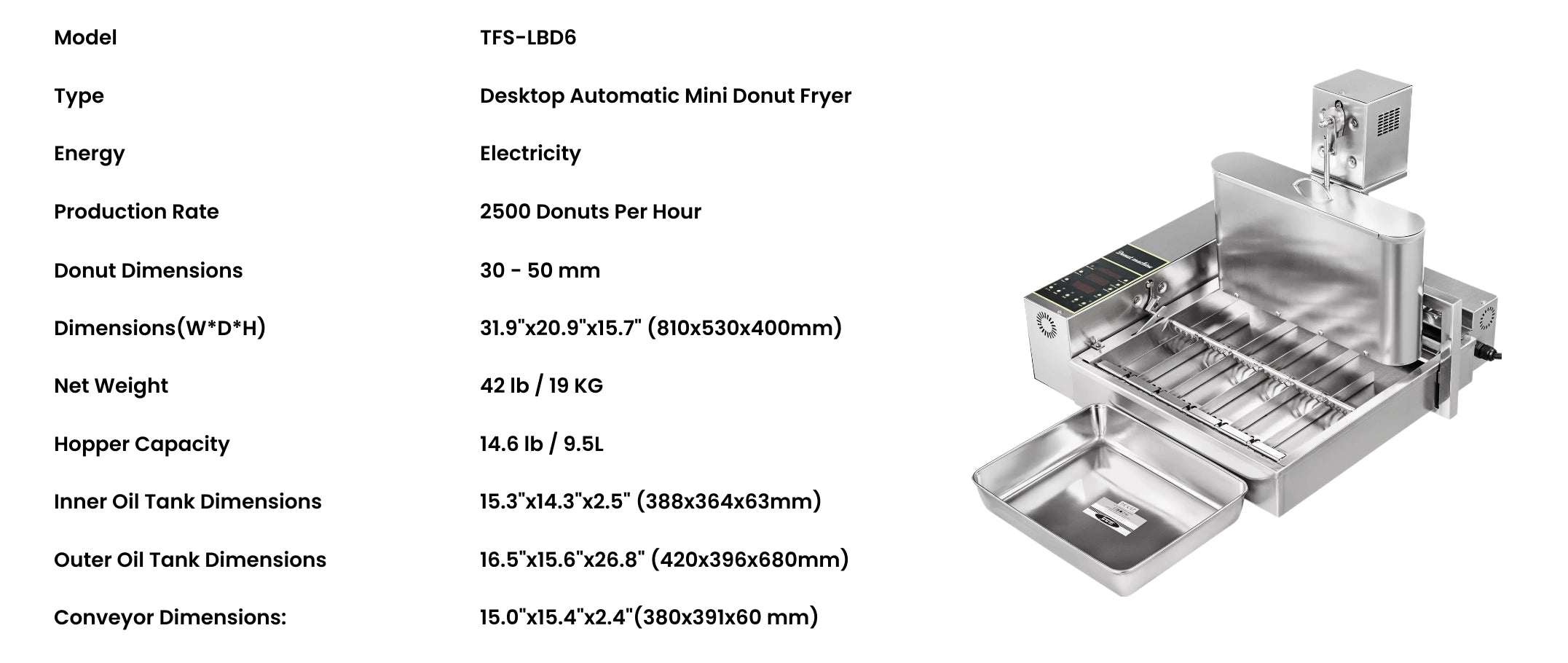

    ⚙️ Technical Specifications

    • Model: Tenshine LBD-6 (Flagship 6-Row Electronic Digital Version)
    • Hourly Production Yield: 2,500 to 2,700+ pcs/hr
    • Finished Donut Diameter: 0.8" to 2.0" (20–50 mm Mini Donuts via 5-Gear Dial)
    • Plunger Mold Configuration: 6 x 1.0" (25 mm) Fixed Stainless Steel Plungers
    • Batter Hopper Capacity: 10.0 Quarts / 2.5 Gallons (9.5 Liters)
    • Frying Oil Tank Capacity: 4.5 Gallons / 18.0 Quarts (17 Liters)
    • Electrical Configuration: 110V–120V/60Hz or 220V–240V/50-60Hz, 1-Phase
    • Heating Power: 2.0 kW to 3.0 kW High-Efficiency Immersion Elements
    • Recommended Frying Temp: 356°F to 392°F (180°C to 200°C)
    • Construction Material: 100% Food-Grade 304 Stainless Steel
    • Net Machine Dimensions: 19.7" x 21.7" x 17.7" (500 x 550 x 450 mm)
    • Net Weight: 41.9 lbs (19 kg)

    ❓ Frequently Asked Questions (B2B Concession Guide)

    Q1: How does the LBD-6 compare to the LBD-4 4-Row model?

    A: The LBD-6 increases your production lanes from 4 to 6—boosting output from 1,800 pcs/hr to 2,500+ pcs/hr—while expanding the batter hopper from 5.8 Qt (5.5L) to 10.0 Qt (9.5L) and the oil vat from 2.85 Gal (10.8L) to 4.5 Gal (17L). Yet it weighs only 6.6 lbs (3 kg) more than the LBD-4, making it the ultimate high-ROI upgrade for busy venues. If your space is ultra-tight, view our LBD-4 4-Row Automatic Mini Donut Machine.

    Q2: Can the LBD-6 produce standard 3-inch full-size donuts?

    A: No. Like the LBD-4, the LBD-6 is strictly engineered with 6 parallel 1.0" (25 mm) plungers to produce high-margin bite-sized mini donuts (0.8"–2.0" / 20–50 mm). For standard 2.8"–3.5" bakery rings, explore our Double-Row Full-Size Automatic Donut Machines.

    Q3: Does this 6-row machine require manual flipping or constant supervision?

    A: Zero manual frying is required. Once you preheat the oil, load the 10.0-quart hopper, and press Auto on the digital touchpad, the LBD-6 autonomously drops six rings per cycle, conveys them through the oil, flips them at the midpoint, and discharges them into your collection tray.

    Q4: How fast can my crew clean the 6-lane conveyor after an event?

    A: In minutes. The rotating overhead hopper swings out of the way, and the pull-out flipping track lifts straight out of the 4.5-gallon 304 stainless steel vat for effortless draining and wipe-down. Explore our 4-Row & 6-Row Commercial Mini Donut Machines or our full lineup of Commercial Donut Machines, Automatic Doughnut Makers & Fryers.

Product Parameters

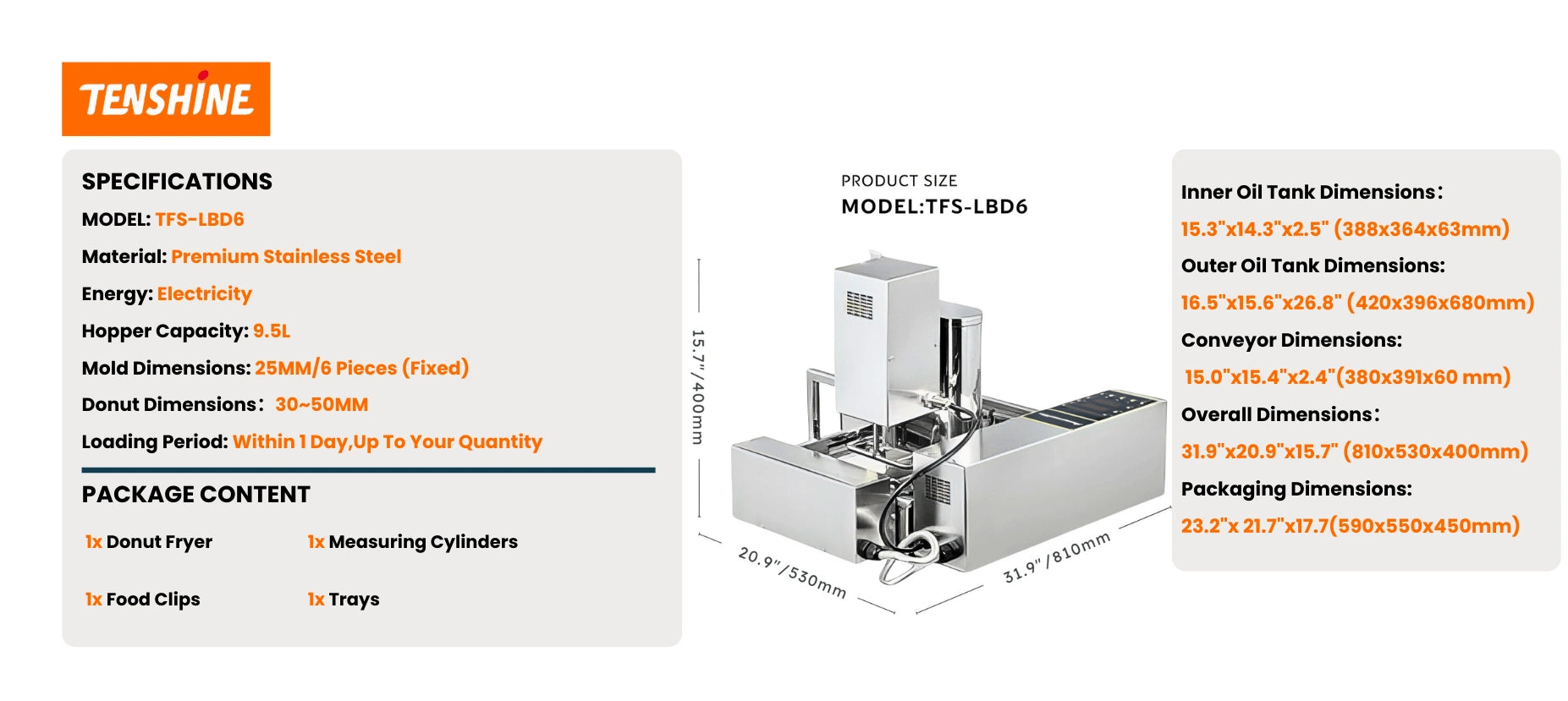

    Detailed dimensions and packaging content for the LBD-6 6-row commercial automatic donut making machine
