Heavy-Duty Commercial 4-Row Automatic Mini Donut Machine & Digital Maker (LBD-4, 1,800 Pcs/Hr)

Preço de venda
$749.00
Preço regular
$1,099.00
Você salva
$350.00 (32%)

The Tenshine LBD-4 (Electronic Digital Edition) is a heavy-duty commercial 4-row automatic mini donut machine engineered specifically for high-traffic food trucks, concession trailers, cafes, and amusement parks requiring standardized output with minimal labor. Powered by a 2.0 kW (110V/220V) heating system, a 5.8-quart (5.5L) rotating batter hopper, and a 2.85-gallon (10.8L) oil tank, it effortlessly produces up to 1,800 bite-sized mini donuts (0.8"–2.0" / 20–50 mm) per hour. By combining an intelligent digital PLC control panel and 6-digit batch counter with dual-button safety start, it standardizes menu repeatability while slashing back-of-house labor costs, serving as an enterprise-grade alternative to traditional Western foodservice brands.

Manuals, Wiring & Spec Sheets (PDF)

📄 Download Official Tenshine LBD-4 & LBD-6 Commercial Mini Donut Machine Operator & Service Manual (PDF)

  • Multi-Model Engineering Specs: Covers LBD-4 Mechanical (15 kg / 33.1 lbs), LBD-4 Electronic (16 kg / 35.3 lbs), and LBD-6 6-Row Electronic (19 kg / 41.9 lbs) running on AC 110V/60Hz or 220V/50-60Hz (2.0 kW heating power, 0.8"–1.6" / 20–40 mm ring extrusion).
  • Dual-Mode Operation & 5-Gear Weight Adjuster: Details manual test mode (independent Drop, Flip, and Heat controls) vs. 100% Auto conveyor mode, optimal 356°F–392°F (180°C–200°C) frying parameters, and 5-level mechanical plunger weight calibration.
  • Main V1.0 PCB Circuit & Limit Switch Architecture: Includes full-color motherboard schematics detailing the J4 Drop Limit Switch socket, J5 Flip Limit Switch socket, and J22 Thermocouple terminal block.
  • Onboard E1 / E2 / E3 Diagnostic Troubleshooting: Step-by-step field maintenance guide for resolving E1 (Flip linkage/J5 limit switch fault), E2 (Hopper drop linkage/J4 limit switch fault), and E3 (Temperature sensor/J22 circuit abnormality) plus dry-burn restart protection.
Electrical Configuration:
110V–120V / 60Hz (US Standard Plug)

Product variant with selected options does not exist!

Em estoque e pronto para envio
🌍 Global Orders: $99 Freight Deposit (Final shipping balance quoted & billed separately before dispatch.)

Frequently Bought Together

American Express
Apple Pay
Bancontact
Google Pay
iDEAL Wero
Mastercard
MB WAY
Shop Pay
Union Pay
Visa
Email or WhatsApp Us Now

🛡️ Risk-Free: Protected by Tenshine's 1-Year Commercial Parts Warranty.
💬 Enterprise Support: Need a proforma invoice, wire transfer instructions, or volume pricing? Chat with our B2B specialists instantly.

First image of detail page

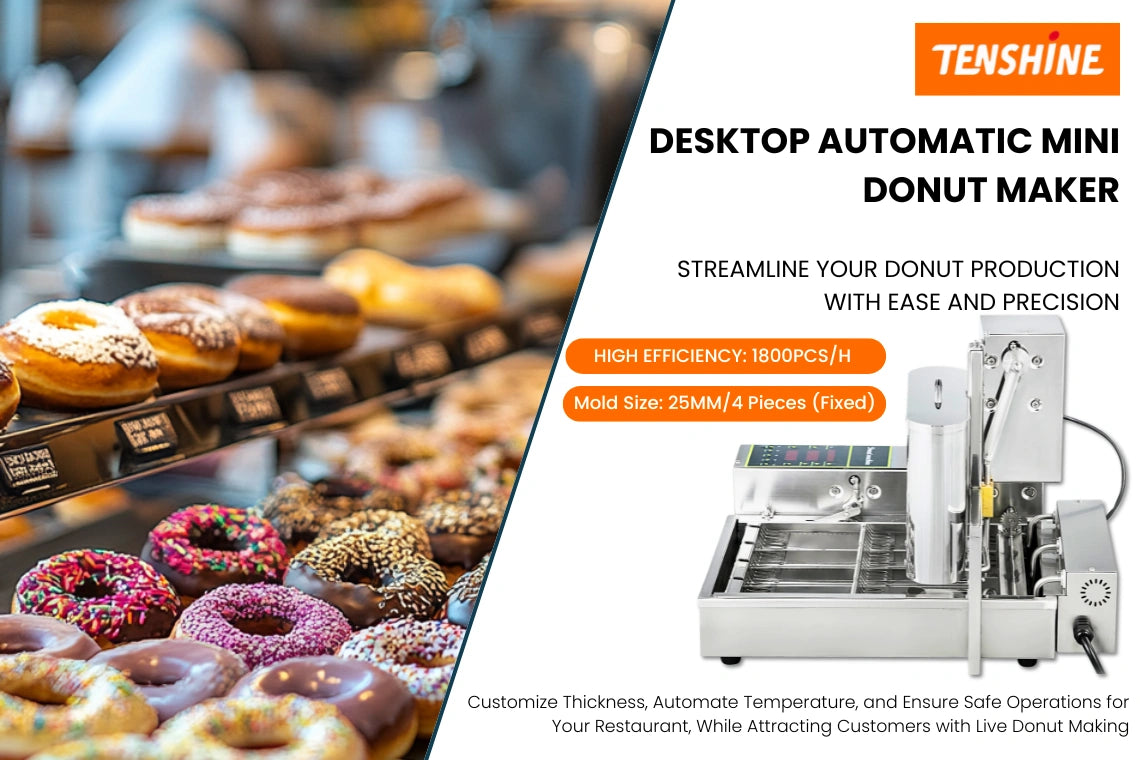

    Desktop automatic mini donut maker delivering 1800 pieces per hour for professional bakery display cases
Product Highlights
    Key features of the LBD-4 commercial mini donut maker including high production capacity and durable stainless steel
Brand banner
    Boost profits with the LBD-4 commercial mini donut maker. This fully automatic 4-row donut robot produces 1,800 pcs/hr
Tenshine foodservice solutions for QSR & restaurants. Factory-direct commercial pressure fryers, griddles, prep tables & soft serve machines with US free DDP!
First image of detail page
    Desktop automatic mini donut maker delivering 1800 pieces per hour for professional bakery display cases
second sheet of detail
    The ultimate donut making solution featuring intelligent control and large capacity on the commercial donut maker robot
Product Diagram 1

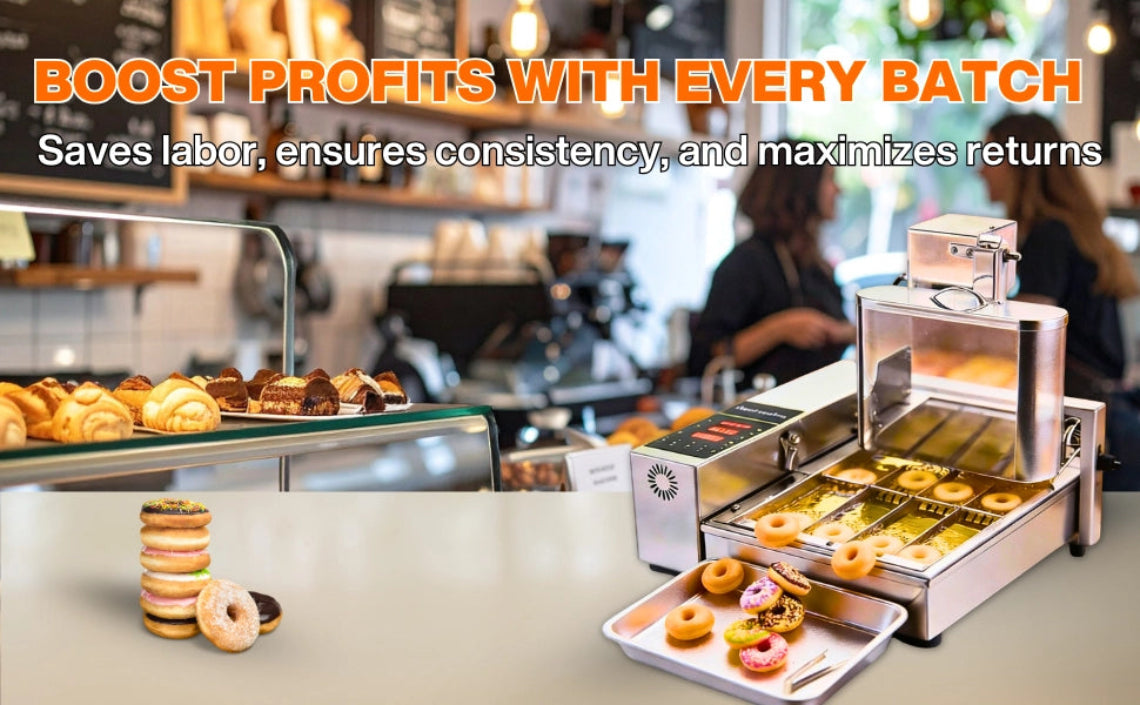

    Boost profits in your cafe with the LBD-4 commercial mini donut maker ensuring consistent batches
Product Diagram 2

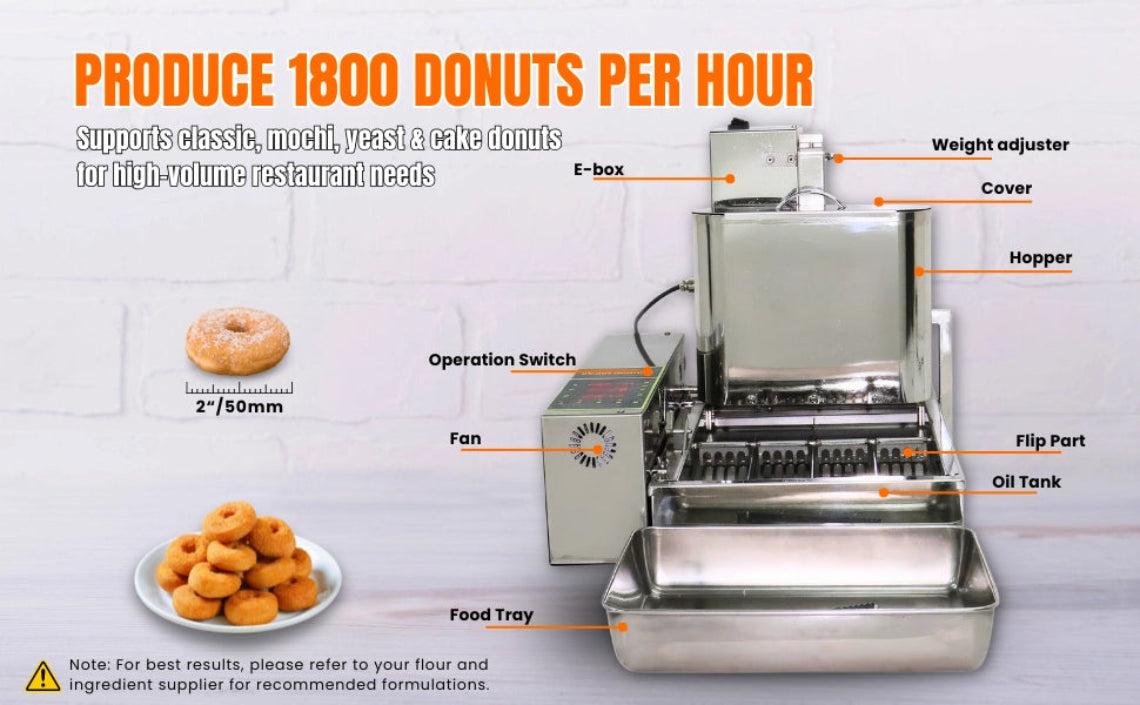

    Produce 1800 classic or mochi donuts per hour with this versatile commercial mini donut maker machine
Product Diagram 3
    Compact LBD-4 commercial mini donut maker maximizing space and profits for food truck businesses
Product Diagram 4

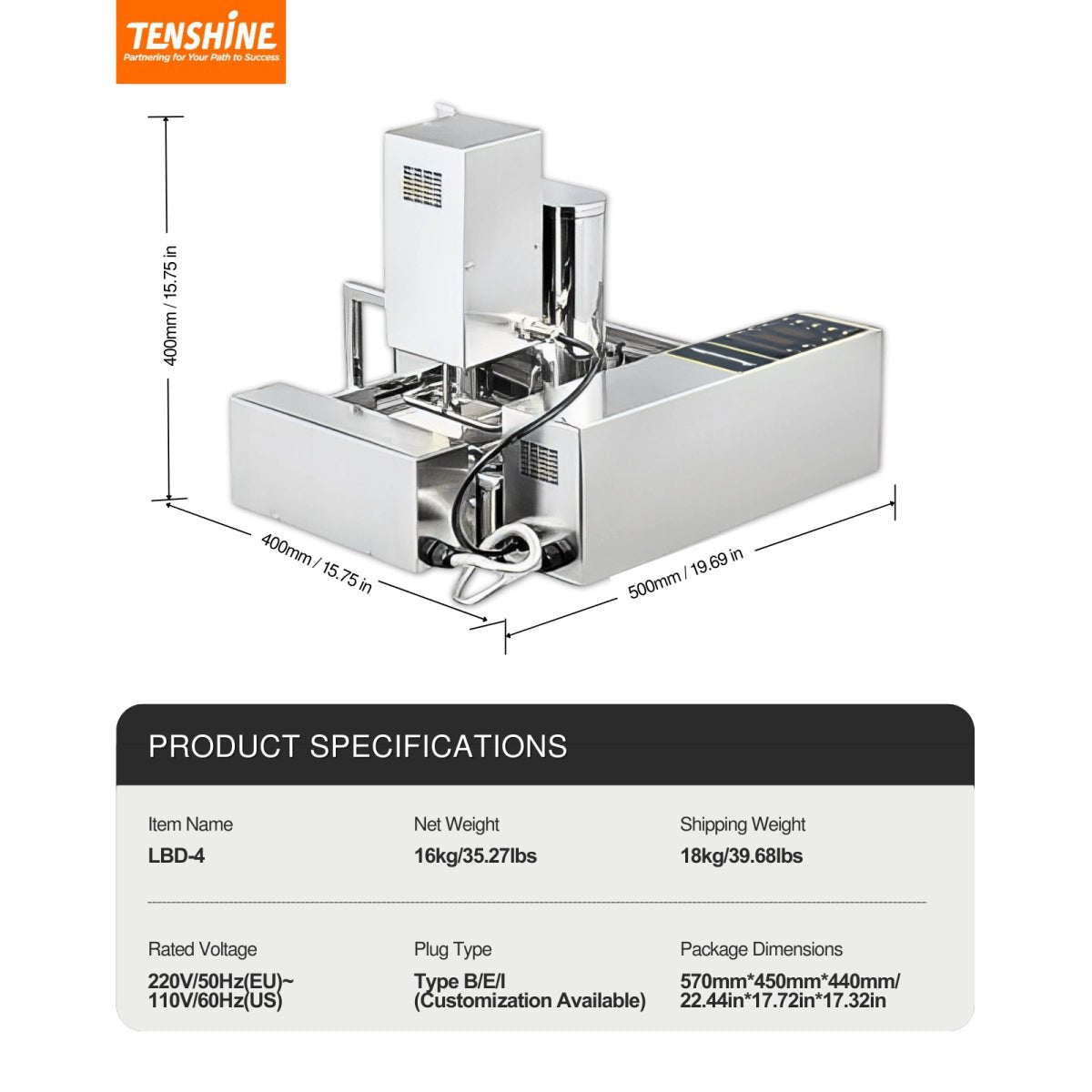

    Technical specifications and physical dimensions for the LBD-4 commercial mini donut maker
Product Diagram 5
    Produce 1800 classic or mochi donuts per hour with this versatile commercial mini donut maker machine
Product Diagram 6
    Wide application of the Tenshine commercial donut maker for cafes, bakeries, and commercial catering events

    🏆 ENTERPRISE VERIFIED: Heavy-gauge food-grade 304 stainless steel construction built for continuous QSR, carnival, and mobile food truck environments.

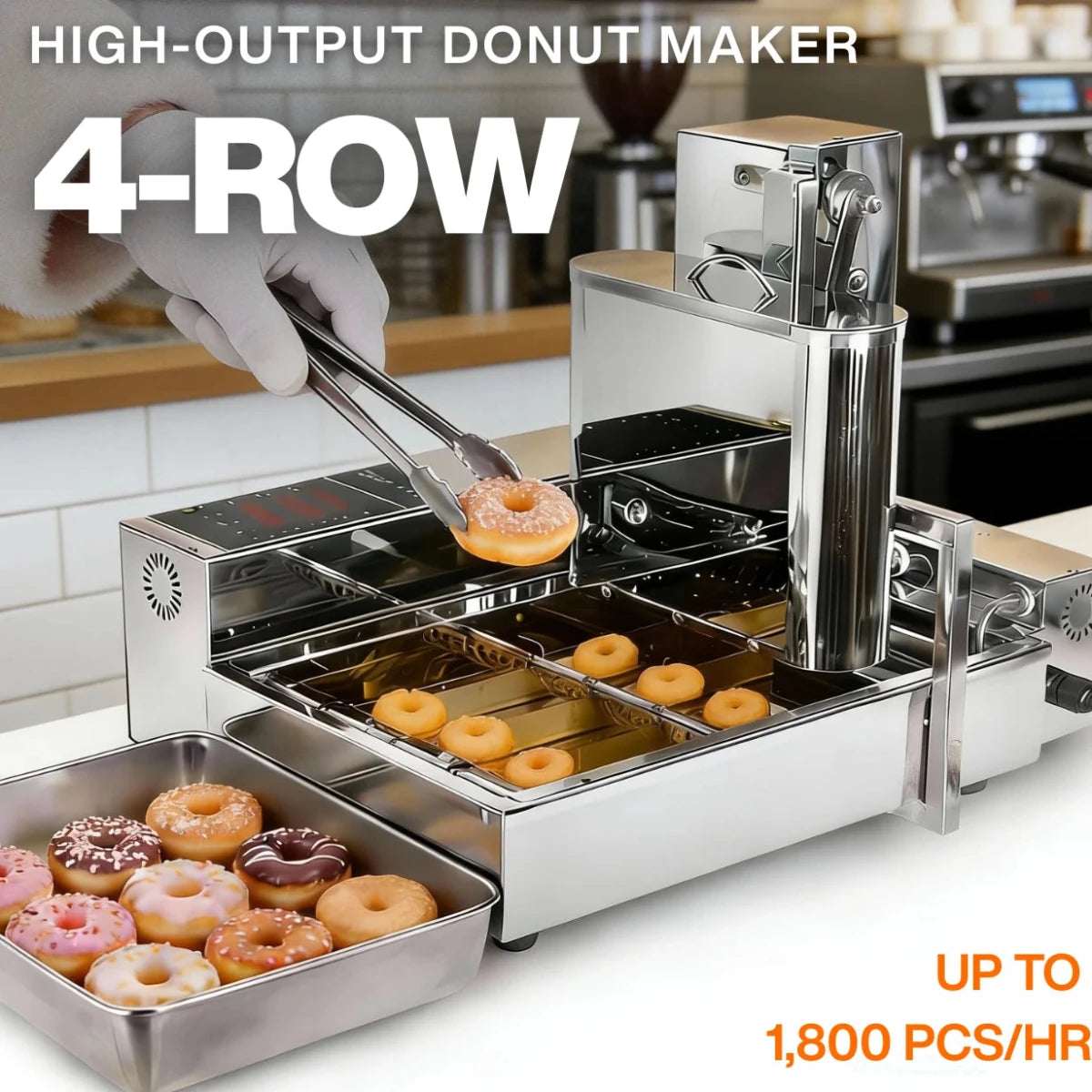

    🔥 4-LANE HIGH-VOLUME OUTPUT: 4 synchronized 1.0" (25 mm) stainless steel plungers churn out 1,800 golden mini donuts per hour.

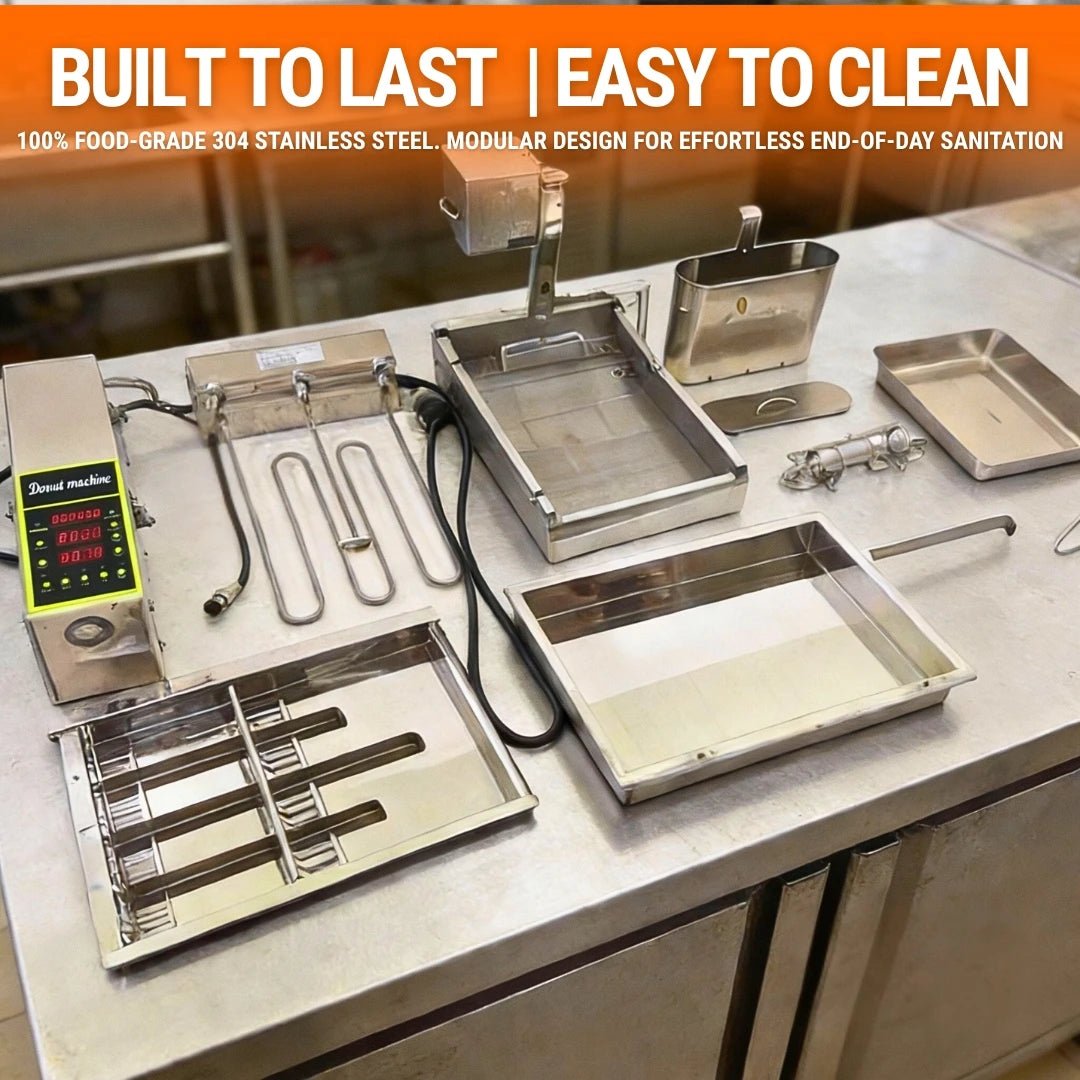

    🔄 SWING-AWAY ROTATING HEAD: Patented multi-directional rotating hopper assembly swings aside for 60-second unobstructed oil tank sanitation.

    Turn Low-Cost Batter into 1,800 Mini Donuts Per Hour with Zero Manual Frying Engineered for high-foot-traffic food trucks, state fair concession stands, busy cafes, and catering operations, the Tenshine LBD-4 (Electronic Digital Edition) is a fully automatic commercial 4-row mini donut maker that eliminates manual frying bottlenecks. Instead of paying skilled kitchen staff to hand-cut and flip rings, this 4-lane conveyor workhorse automates 100% of the batter extrusion, oil-channel conveying, mechanical mid-fry flipping, and outfeed collection—delivering hot, freshly fried mini donuts with pinpoint consistency.

    🚀 Key Features & Engineering Advantages

    • Massive 4-Row Parallel Output (1,800 Pcs/Hr) Crush your peak-hour queues. Unlike single-lane machines, the LBD-4 utilizes 4 parallel 1.0" (25 mm) fixed stainless steel plungers to drop four rows of batter simultaneously. It delivers a relentless output of 1,800 pieces per hour, producing high-margin bite-sized mini donuts measuring 0.8" to 2.0" (20–50 mm) in finished diameter.

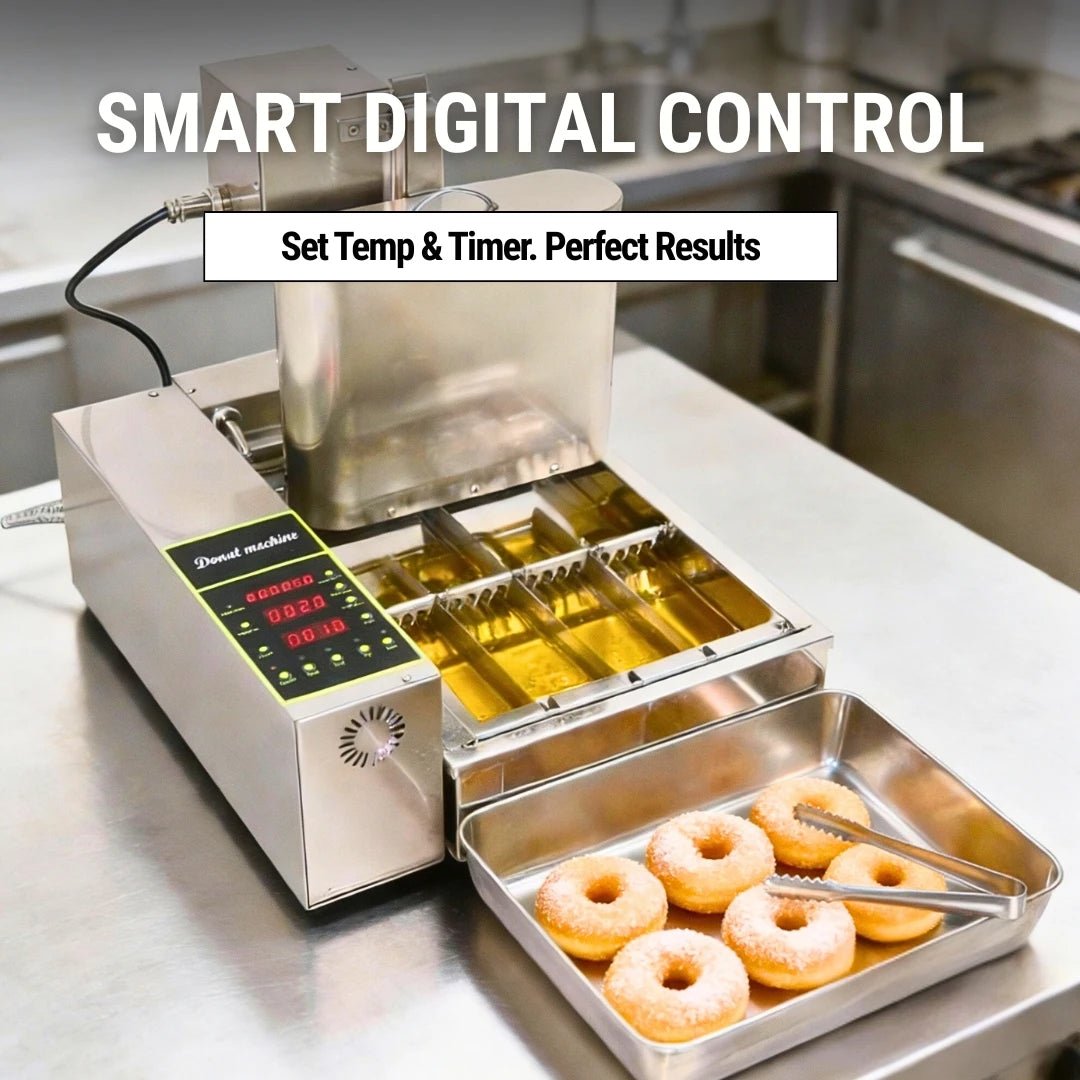

    • Intelligent Digital E-Box & 6-Digit Batch Counter Take total command of your frying line via the upgraded electronic control panel:
    1. Digital PID Thermostat & TEMP-C Calibration: Maintains constant oil temperature up to 356°F–392°F (180°C–200°C) with built-in TEMP-C sensor calibration for uniform golden-brown crusts.
    2. Adjustable Frying Time & Manual/Auto Modes: Fine-tune your exact frying cycle via dedicated Time+ / Time- controls, test individual Drop and Flip actions manually, or press Auto for 100% hands-free continuous operation.
    3. Integrated 6-Digit LED Counter (With Reset): Automatically tracks every batch dropped so shop owners can audit daily sales, control batter inventory, and prevent staff shrinkage.
    • Patented Swing-Away Rotating Hopper Head End-of-shift breakdown has never been faster. Rather than lifting a heavy overhead assembly in cramped food truck interiors, operators simply swing the 5.8-quart (5.5L) batter hopper aside on its multi-directional pivot. This exposes 100% of the 2.85-gallon (10.8L) frying vat for effortless draining and code-compliant daily cleaning.
    • 5-Gear Mechanical Batter Weight & Thickness Dial Customize your donut texture on the fly. Rotate the 5-position mechanical weight adjuster on the drive head to control plunger stroke depth—switching seamlessly between light, crispy carnival rings and dense, cakey mini donuts.
    • Commercial Dual-Button Start & Overheat Protection Built with CE-certified electrical safeguards, including dual-button activation to prevent accidental dry-starts, an internal cooling fan for the E-box, and an automatic high-limit thermal cut-off switch.

    ⚙️ Technical Specifications

    • Model: Tenshine LBD-4 (Electronic Digital 4-Row Version)
    • Hourly Production Yield: Up to 1,800 pcs/hr
    • Finished Donut Diameter: 0.8" to 2.0" (20–50 mm Mini Donuts)
    • Plunger Mold Configuration: 4 x 1.0" (25 mm) Fixed Stainless Steel Plungers
    • Batter Hopper Capacity: 5.8 Quarts (5.5 Liters)
    • Frying Oil Tank Capacity: 2.85 Gallons / 11.4 Quarts (10.8 Liters)
    • Inner Oil Tank Dimensions: 15.3" x 9.8" x 2.5" (388 x 248 x 63 mm)
    • Electrical Configuration: 110V/60Hz or 220V–240V/50-60Hz, 1-Phase
    • Heating Power: 2.0 kW (2,000W) High-Recovery Immersion Element
    • Recommended Frying Temp: 356°F to 374°F (180°C to 190°C)
    • Construction Material: 100% Food-Grade 304 Stainless Steel
    • Net Unit Dimensions: 19.7" x 15.7" x 17.7" (500 x 400 x 450 mm; length extends by 9.4" / 240 mm with outfeed tray attached)
    • Shipping Carton Dimensions: 22.4" x 17.7" x 17.3" (570 x 450 x 440 mm)
    • Net / Shipping Weight: 35.3 lbs (16 kg) / 38.6 lbs (17.5 kg)

    ❓ Frequently Asked Questions (B2B Operator Guide)

    Q1: Can the LBD-4 make full-size 3-inch bakery donuts?

    A: No. The LBD-4 is strictly engineered with 4 parallel 1.0" (25 mm) plungers to maximize mini donut speed (1,800 pcs/hr, finished size 0.8"–2.0" / 20–50 mm). If your menu requires full-size 2.8"–3.5" standard rings or interchangeable Mochi/Ball shapes, view our Double-Row Automatic Donut Machines or Single-Row 3-Mold Series.

    Q2: What is the difference between the LBD-4 Electronic Digital version and the LBD-4 Mechanical version?

    A: This Electronic Digital version features an LED touchpad with Time+/Time- adjustment, TEMP-C temperature calibration, manual Drop/Flip test buttons, and E1/E2/E3 self-diagnostic fault codes. If you operate in rugged outdoor carnival environments and prefer simple rotary dials and toggle switches, check out our LBD-4 Mechanical 4-Row Mini Donut Machine.

    Q3: Is a 2.0 kW rating suitable for mobile food trucks and generators?

    A: Yes! At just 2.0 kW (2,000W) and a portable 35.3 lbs (16 kg) net weight, the LBD-4 runs effortlessly on standard commercial circuits or mobile food truck generators without tripping breakers.

    Q4: What do error codes E1, E2, or E3 mean on the digital display?

    A: The onboard Main V1.0 controller monitors all mechanical linkages in real time: E1 indicates a flip-plate limit switch (J5) looseness, E2 signals a batter-drop limit switch (J4) issue, and E3 alerts you to a thermocouple sensor (J22) abnormality. Full step-by-step wiring diagrams are included in our downloadable PDF manual above. Need even higher 6-lane output? Explore our 4-Row & 6-Row Commercial Mini Donut Machines or our complete range of Commercial Donut Machines, Automatic Doughnut Makers & Fryers.

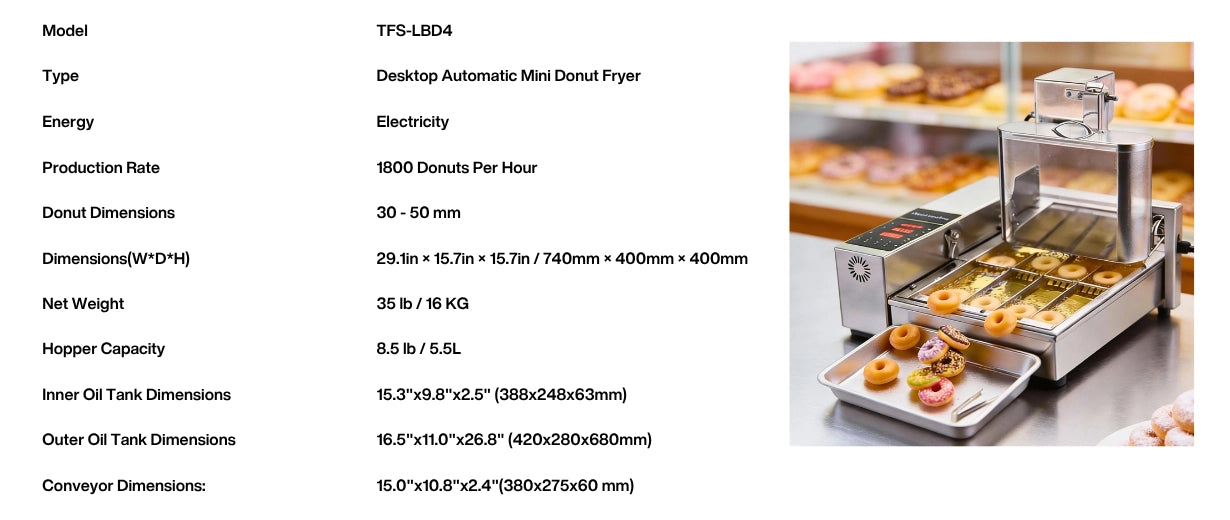

Product Parameters

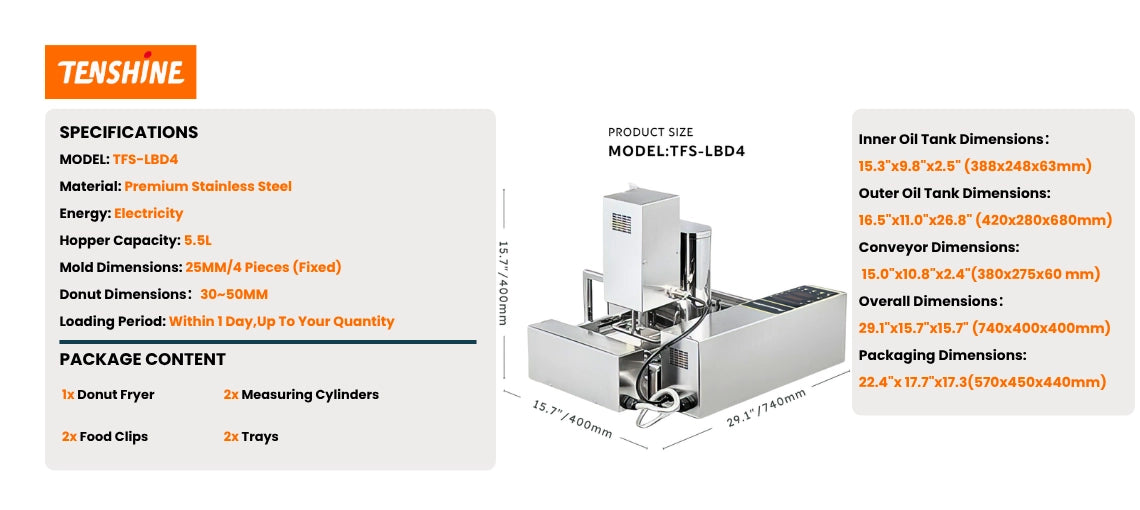

    Detailed dimensions and packaging content for the LBD-4 commercial mini donut maker
