The Highest ROI Pressure Fryer: Built-in Filtration Meets Simple 10-Key Preset Automation

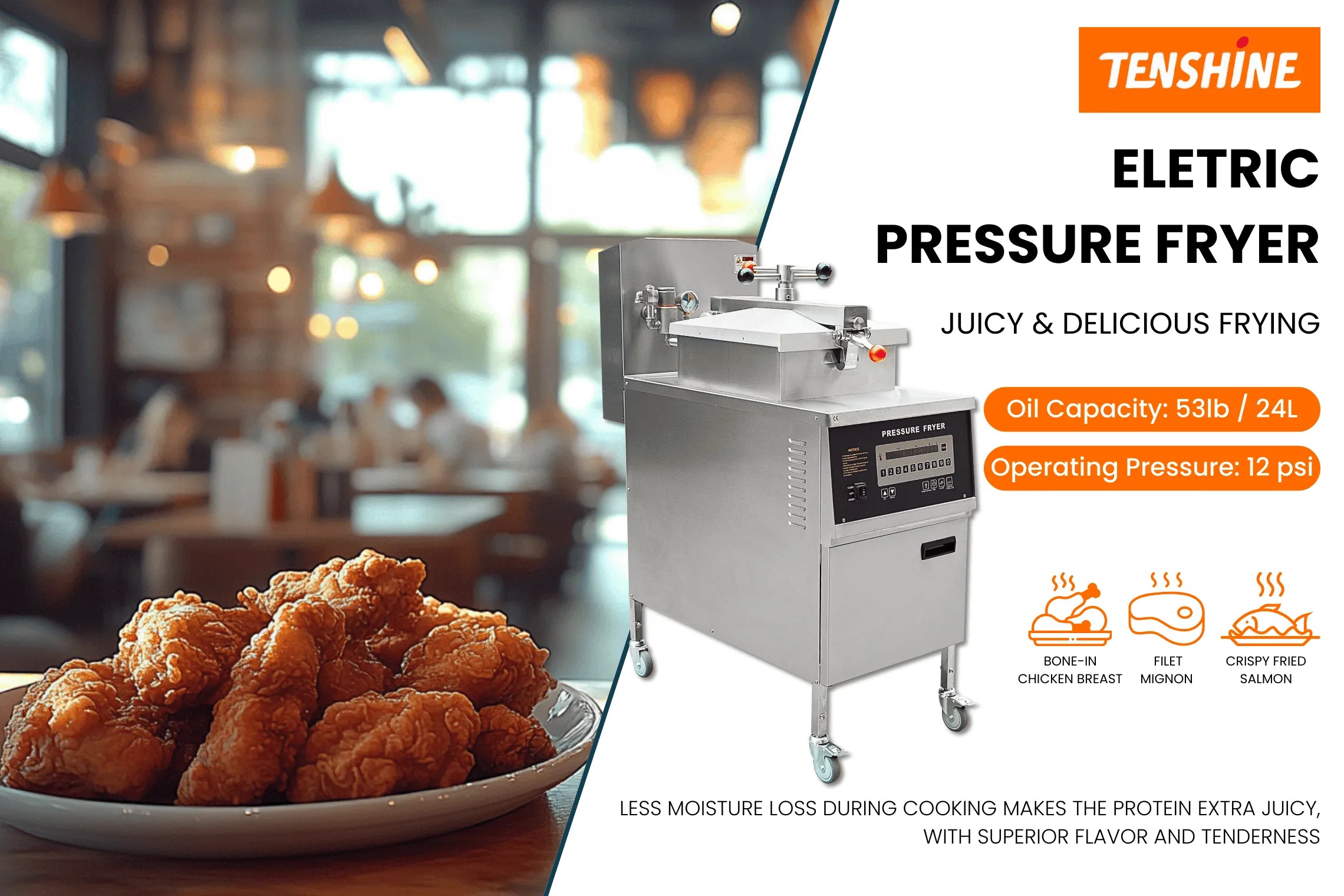

Deliver authentic, juicy, original-recipe Southern fried chicken while slashing your monthly shortening overhead with the Tenshine TS-EP600 Commercial Electric Pressure Fryer. Engineered as a budget-friendly, heavy-duty workhorse for growing fast-food chains, grocery deli counters, and busy catering commissaries, this equipment delivers the exact same pressurized frying performance as premium Western brands without the inflated price tag.
While standard open deep fryers dry out proteins and waste expensive cooking oil, the TS-EP600 utilizes 12 Psi (0.085 MPa) sealed pressure frying technology. This superheated environment raises the boiling point of moisture, locking natural juices inside the poultry while preventing shortening from soaking into the breading. Furthermore, with our integrated push-button oil filtration pump, kitchen staff can clean hot oil safely in minutes without lifting heavy grease pots—while the streamlined 10-Key Programmable Panel ensures 100% menu repeatability across every shift.
🏆 ENTERPRISE QSR VERIFIED:
Heavy-duty 304 stainless steel commercial electric pressure fryer engineered to standardize fried chicken output with exceptional budget efficiency.
🔄 BUILT-IN RAPID OIL FILTRATION PUMP:
Integrated recirculation filter pump purifies hot shortening in minutes, extending oil lifespan by up to 50% and eliminating manual grease handling.
⚙️ 10-KEY PROGRAMMABLE PRESET PANEL:
Intuitive digital controller stores up to 10 distinct cooking menus (Keys 1–0), allowing staff to fry different proteins with zero manual time or temperature guesswork.
⚡ 13.5 KW 3-PHASE HEATING MATRIX:
Powerful immersion heating elements deliver instant heat recovery. Requires standard 380V–400V 50/60Hz 3-Phase hardwired connection by a certified commercial electrician.
🚀 Key Features & Operational Benefits:
1. Enterprise-Verified 0.085 MPa Pressure Frying (Original Recipe Quality)
Built to survive rigorous commercial frying schedules, the TS-EP600 operates under a sealed 12 Psi (0.085 MPa) working pressure. This pressurized cooking chamber seals natural moisture and signature spices inside the chicken while cooking up to 30% faster than open vats. The result is signature restaurant-quality chicken that is consistently crispy on the outside, remarkably tender on the inside, and significantly less greasy.
2. Intuitive 10-Key Programmable Preset Controller (Zero Staff Guesswork)
Standardize your menu quality regardless of kitchen staff turn-over. The TS-EP600 features an intuitive electronic controller equipped with 10 dedicated preset buttons (Keys 1 through 0). Kitchen managers can easily program and lock customized time and temperature profiles for ten different menu items (e.g., Key 1 for 8-Head Chicken at 329°F / 165°C for 10 minutes; Key 2 for Wings; Key 3 for Potato Wedges). Front-line cooks simply load the basket, press the corresponding product key, and let the machine automate the cook cycle.
3. Built-in Rapid Oil Filtration Pump (Slashes Shortening Costs by 50%)
Cooking oil represents a massive ongoing operating expense. The TS-EP600 solves this with an integrated recirculation filtration pump system. Simply open the front drain valve to empty the shortening into the lower filter storage basin, then toggle the power switch to "PUMP". The motor pulls the hot shortening through heavy-duty filter envelopes, trapping carbonized breading crumbs and returning clean, purified oil directly into the vat in under 5 minutes. Routine daily filtering doubles your shortening lifespan and saves thousands of dollars annually.
4. 13.5 kW Immersion Heating Matrix & 55 lb/hr High Output
When peak lunch and dinner rushes hit, slow heat recovery ruins kitchen efficiency. Equipped with a heavy-duty 13.5 kW 3-phase electric immersion heating matrix, thermal energy is transferred directly into the 6.6 Gallon (25 Liter / 55 lb oil capacity) vat. This guarantees rapid heat recovery the moment cold or frozen poultry is dropped into the shortening, effortlessly producing 4 whole chickens (approx. 16–20 bone-in pieces) per 10-minute batch (approx. 55 lbs / 25 kg per hour).
5. Redundant Mechanical & Electrical Safety Protocols
Operator safety is paramount in pressurized cooking. The TS-EP600 protects your staff with multi-layered safety barriers:
- Automatic Overflow Release Valve: Regulates and maintains working pressure invariant at 12 Psi (0.085 MPa), automatically venting excess steam during the cook cycle.
- Emergency Safety Relief Valve: Automatically actuates and discharges air if internal vat pressure ever exceeds safe operational limits.
- Ergonomic Crossbeam Lid Lock: Heavy-duty threaded screw spindle and crossbeam hook mechanically clamp the lid, physically preventing accidental opening while under pressure.
- High-Limit Overheat Shutoff: Dedicated safety limiter automatically trips and cuts power to heating elements if shortening exceeds 482°F (250°C).

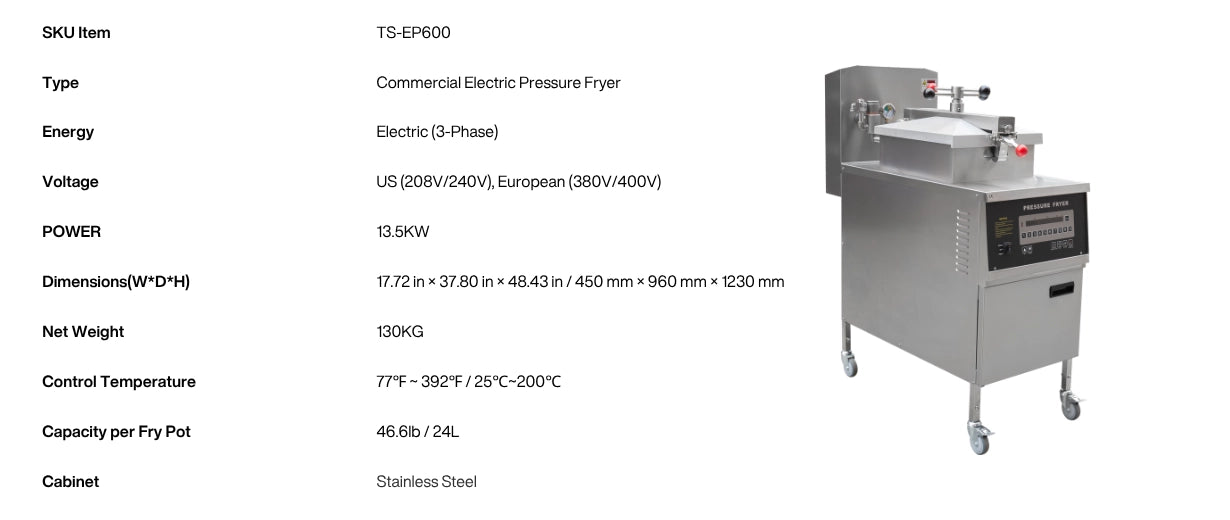

⚙️ Technical Specifications (Industrial Standard)
- SKU Item: Tenshine TS-EP600 (Heavy-Duty 10-Key Preset Filter Series / Equivalent to PFE-600)
- Equipment Category: Commercial Electric Pressure Fryer / Fried Chicken Machine with Built-in Pump
- Control Panel Architecture: 10-Key Programmable Preset Controller (Keys 1–0) with digital LED display
- Oil Vat Capacity: 6.6 Gallons / 25 Liters (approx. 55 lbs of commercial shortening)
- Hourly Production Output: Approx. 55 lbs/hr (25 kg/hr) — cooks 4 whole chickens per 10-minute batch
- Rated Working Pressure: 12 Psi / 0.085 MPa (85 KPa) with automatic solenoid exhaust regulation
- Operating Temperature Range: 68°F – 392°F (Room Temp – 200°C) adjustable thermostat
- Electronic Timing Range: 0 – 90 Minutes programmable countdown with audible completion alarm
- Electrical Power Rating: 13.5 kW High-Efficiency Immersion Heating Elements
- Power Supply & Voltage: 3N~380V–400V / 50-60Hz (3-Phase Commercial Power) (Note: For North American 208V-240V 3-Phase requirements, select the US voltage variant).
- Electrical Installation Requirement: Hardwired connection directly to a commercial breaker box by a certified electrician.
- Unit Exterior Dimensions: 18.9" W x 37.8" D x 47.0" H (480mm W x 960mm D x 1195mm H)
- Unit Net Weight: 286.6 lbs (130 kg) — heavy-duty 304 stainless steel frame with locking swivel casters
- Filtration Architecture: Built-in Automatic Oil Filtration Pump System with lower oil basin and filter screens.
❓ Frequently Asked Questions (FAQ)
Q: What is the main difference between the TS-EP600 and the TS-EP800 models?
A: Both models share the exact same industrial performance: a 13.5 kW 3-phase heating matrix, a 6.6 Gallon (25L) vat, an output of 4 whole chickens per batch, and a built-in oil filtration pump. The difference lies in the controller: the TS-EP600 features a streamlined 10-Key Programmable Panel (Keys 1–0) designed for straightforward, push-button preset simplicity and a lower initial purchase price, whereas the TS-EP800 features a more complex multi-menu computer interface.
Q: How does the 10-Key preset panel standardize fried chicken preparation?
A: The controller stores up to 10 distinct cooking programs. Your kitchen manager sets the specific frying temperature and time for each number key (e.g., Key 1 = 329°F / 10 mins for Bone-in Chicken; Key 2 = Wings; Key 3 = Tenders). During busy shifts, cooks simply drop the basket, close the lid, and press the single numbered preset button—eliminating manual guesswork and burnt food.
Q: How does the built-in oil filtration pump extend shortening life?
A: Breaded chicken releases flour crumbs that carbonize in hot oil, turning it dark and bitter. The TS-EP600 includes an integrated filter pump. After cooling oil below 248°F (120°C), drain the vat into the lower tank and toggle the switch to "PUMP". The motor forces shortening through filter paper, stripping out burnt debris and pumping clean oil back into the vat in minutes, doubling your usable oil lifespan.
Q: Why does this commercial pressure fryer require a 3-phase electrical connection?
A: To maintain rapid temperature recovery when dropping cold or frozen poultry into 55 lbs of cooking oil, the TS-EP600 utilizes a powerful 13.5 kW immersion heating matrix. Drawing this commercial amperage safely requires a stable 3-phase electrical supply (3N~380V–400V or North American 208V-240V 3-Phase) and must be professionally hardwired by a certified commercial electrician.
Q: How do I safely release pressure before opening the fryer lid?
A: The TS-EP600 features automated exhaust logic. When the digital timer reaches zero, the electric solenoid exhaust valve opens automatically to discharge steam from the vat. Once the pressure gauge drops completely to "0" Mpa (wait 30 seconds), loosen the crossbeam screw spindle, press the crossbeam down slightly, unhook the front lock, and lift the lid safely from the side.
🌎 Resumen en Español (Ideal para LATAM y España)
¿Busca la freidora a presión eléctrica con el mayor retorno de inversión (ROI) para su pollería, restaurante o cadena de comida rápida? La Freidora a Presión Eléctrica Comercial Tenshine TS-EP600 (13.5 kW) combina un sistema de filtración de aceite integrado con un panel de control programable simplificado de 10 menús preestablecidos (Teclas 1–0), ofreciendo el mismo rendimiento de las marcas tradicionales estadounidenses a un precio mucho más accesible.
Equipada con una resistencia de inmersión trifásica de 13.5 kW y una tina de acero inoxidable 304 de 6.6 galones (25 litros / aprox. 55 libras de aceite), produce hasta 55 libras (25 kg) de pollo frito por hora (4 pollos enteros por lote de 10 minutos). Al operar bajo un ambiente sellado a presión de 12 Psi (0.085 MPa), eleva el punto de ebullición para sellar los jugos naturales de la carne y evitar que el panizado absorba grasa en exceso. Su panel de 10 teclas permite a su personal freír diferentes productos con presionar un solo botón, mientras que su bomba de filtración integrada limpia el aceite en minutos, ahorrando miles de dólares al año. ¡Aumente su rentabilidad hoy mismo! Contáctenos por WhatsApp para cotizaciones de envío directo de fábrica.
Looking for a gas-powered alternative? Explore our TS-GP600 Commercial Gas Pressure Fryer.
