Heavy-Duty Commercial Countertop Electric Donut Fryer & Auto-Drop Mochi Maker (T-102S, 3.05 kW, 3 Molds)

Sale price
$1,799.00
Regular price
$3,615.00
You save
$1,816.00 (50%)

The Tenshine T-102S is a heavy-duty commercial countertop electric donut fryer and motorized auto-drop pastry maker engineered specifically for high-volume bakeries, mochi donut shops, Greek loukoumades stalls, and QSR chains. Powered by a 3.0 kW serpent heating element plus a 50W IC-timer speed-regulated dropping motor (3,050W total), a 9.5-quart (9L) swing-arm hopper, and a 4.0-gallon (15L) square vat (25 full-size rings per batch), it produces up to 500 ring/mochi donuts or 2,000 donut balls per hour. Equipped with 3 interchangeable stainless steel molds (Ring, Mochi Flower, and Loukoumades Ball) and a side cooling drain board, it eliminates manual lever fatigue as an enterprise-grade alternative to traditional Western foodservice brands.

Manuals, Wiring & Spec Sheets (PDF)

📄 Download Official Tenshine T-102S & T-102 Series Countertop Electric Donut Fryer Service Manual (PDF)

  • T-102S Motorized Auto-Drop Architecture (3,050W): Details the upgraded T-102S configuration featuring a 3.0 kW immersion heating pipe plus a 50W speed-regulation motor box and upper Blanking Switch for hands-free batter extrusion on AC 100V–130V or 200V–240V (50/60Hz).
  • 25 Pcs/Tank Square Vat & R-T-Y-G-S Thermostat Matrix: Covers the 19.7" x 19.7" x 3.9" (500 x 500 x 100 mm) frying tank, S Power Switch, T Rotary Thermostat, G/Y Dual Indicators, and rear R High-Limit Safety Reset Switch (392°F / 200°C automatic cut-off).
  • 3-Shape Molds (Ring, Mochi Flower, Ball) & 3-Degree Weight Screw: Step-by-step assembly diagrams (Steps 1–6) for mounting the H/L-type pivoting hopper arm, speed-regulation motor box, 3 interchangeable stainless steel molds, and 1–3 degree batter weight screw.
  • Side Cooling Drain Board & Flip-Back Heater Sanitation: Instructions for attaching the angled oil-draining board with dual fixed support bars, draining cooled oil via the bottom valve, and rotating the serpent heating tube backward for rapid daily cleaning.
Rated Voltage:
110V–120V / 60Hz (US Commercial 30A Circuit)

Product variant with selected options does not exist!

In stock and ready for shipping
🌍 Global Orders: $99 Freight Deposit (Final shipping balance quoted & billed separately before dispatch.)

Frequently Bought Together

American Express
Apple Pay
Bancontact
Google Pay
iDEAL Wero
Mastercard
MB WAY
Shop Pay
Union Pay
Visa
Email or WhatsApp Us Now

🛡️ Risk-Free: Protected by Tenshine's 1-Year Commercial Parts Warranty.
💬 Enterprise Support: Need a proforma invoice, wire transfer instructions, or volume pricing? Chat with our B2B specialists instantly.

First image of detail page
    Hero banner of the Tenshine TFS-T102S commercial electric donut maker machine, engineered for high-volume bakeries and QSR chains.
Product Highlights
    Six performance capability icons for the electric donut maker machine, including food-grade stainless steel construction and 3 adjustable thickness molds.
Brand banner
    Industrial donut fryer machine operating in a bustling commercial kitchen, delivering golden-brown donuts with absolute menu standardization.
Tenshine foodservice solutions for QSR & restaurants. Factory-direct commercial pressure fryers, griddles, prep tables & soft serve machines with US free DDP!
First image of detail page
    Hero banner of the Tenshine TFS-T102S commercial electric donut maker machine, engineered for high-volume bakeries and QSR chains.
second sheet of detail
    Four core profitability features of the heavy-duty donut making machine, showcasing precise portion control and rapid heat recovery for breakfast rush hours.
Product Diagram 1
    Core performance features of the heavy-duty donut maker, emphasizing its 3050W rapid heat recovery, automated temperature control, and high-yield pastry production capabilities.
Product Diagram 2
    Structural workflow of the semi-automatic donut fryer machine, demonstrating the seamless batter dropping mechanism and efficient BOH oil management system.
Product Diagram 3
    Four-panel detail view of the commercial donut making machine, highlighting the precision control head, 3050W electric heating tube, and heavy-duty oil drain valve.
Product Diagram 4
    Three interchangeable commercial-grade molds for the Tenshine industrial donut machine, allowing strict portion control and various donut sizes for QSR menu standardization.
Product Diagram 5
    The Tenshine TFS-T102S commercial donut machine seamlessly integrated into a bustling restaurant kitchen setup, maximizing prep table space and morning rush output.
Product Diagram 6
    Summary of profitability advantages for the commercial electric donut maker, illustrating how it drastically cuts prep labor and lowers food cost percentages for franchises.

    🏆 ENTERPRISE VERIFIED: Heavy-gauge 100% Food-Grade 304 Stainless Steel construction featuring a 25-donut square vat, side oil-drain cooling board, and bottom drain valve.

    ⚙️ UPGRADED MOTORIZED AUTO-DROP (3,050W): Combines a 3.0 kW serpent heating element with a 50W IC-timer speed-regulated dropping motor and Blanking Switch—eliminating manual lever fatigue!

    🌸 3 INTERCHANGEABLE SHAPE MOLDS (RING, MOCHI FLOWER & LOUKOUMADES BALL): Produce up to 500 classic rings/mochi flowers or 2,000 Greek loukoumades balls per hour from one 9.5 Qt (9L) pivoting hopper.

    Eliminate Manual Lever Fatigue: Motorized Auto-Drop Precision Meets 25-Donut Open-Kettle Frying Transform your bakery, cafe, or specialty dessert shop from a manual labor bottleneck into a high-margin profit center. The Tenshine T-102S Commercial Countertop Electric Donut Fryer is the motorized-extrusion upgrade to our classic T-102 station. Equipped with a dedicated 50W speed-regulation motor box (IC Timer) and an upper Blanking Switch alongside a manual override handle, the T-102S automatically extrudes batter from its 9.5-quart (9L) swing-arm hopper at your exact programmed pace—letting a single operator glide across the 4.0-gallon (15L) vat to fry 25 full-size rings per batch with zero wrist strain.

    🚀 Core Performance & Profitability Advantages

    • Motorized Auto-Drop + Manual Dual-Mode Extrusion Why pull a lever hundreds of times per morning rush? Flip the upper Blanking Switch and dial in your extrusion rhythm on the side-mounted 50W IC-Timer Speed Regulation Box. The overhead plunger automatically cycles up and down to drop uniform pastries while you guide the L-type swing arm across the oil. Prefer manual single-drop control for small test batches? Simply switch off the motor and use the ergonomic hand lever.
    • 3-in-1 Multi-Shape Versatility (Ring, Mochi Flower & Loukoumades Ball) Capture three high-ticket pastry markets from a compact 41.3" x 27.6" countertop footprint. The T-102S includes 3 quick-swap 304 stainless steel plunger molds plus a 3-degree mechanical batter weight screw (Degrees 1 to 3):
    1. Classic Ring Mold: Extrudes traditional American cake and yeast-raised rings (up to 500 pcs/hr).
    2. Flower Mold (Mochi / Pon de Ring): Drops iconic pull-apart bubble rings for viral Japanese mochi donuts.
    3. Multi-Port Ball Mold (Loukoumades / Donut Holes): Extrudes multiple spherical bites per cycle—pumping out up to 2,000 Greek honey puffs or cake donut holes per hour!
    • 3.0 kW Serpent Heating Element & 392°F (200°C) Thermal Cutoff Driven by a 3,000W multi-loop stainless steel immersion heating tube (3,050W total system power), the 19.7" x 19.7" x 3.9" (500 x 500 x 100 mm) vat recovers oil temperature instantly between 25-donut batches. Built-in green and yellow pilot lights monitor thermal cycling, backed by a rear high-limit reset switch (R) that automatically cuts power if oil exceeds 392°F (200°C).
    • Chef-Centric Sanitation (Side Drain Board, Crumb Grid & Oil Valve) Engineered for fast, code-compliant shift turnovers:
    1. Attached Folding Cooling & Drain Plate: Supported by dual fixed bars, fresh donuts cool on the angled side tray while excess shortening drains cleanly back into the tank.
    2. Submerged Crumb Filter Plate & Pressure Screen: Prevents burnt batter sediment on the heating coils and keeps rings evenly submerged.
    3. Rotate-Back Heater & Bottom Oil Valve: Drain cooled oil via the side valve and swing the heating element backward for 60-second vat wipe-downs.

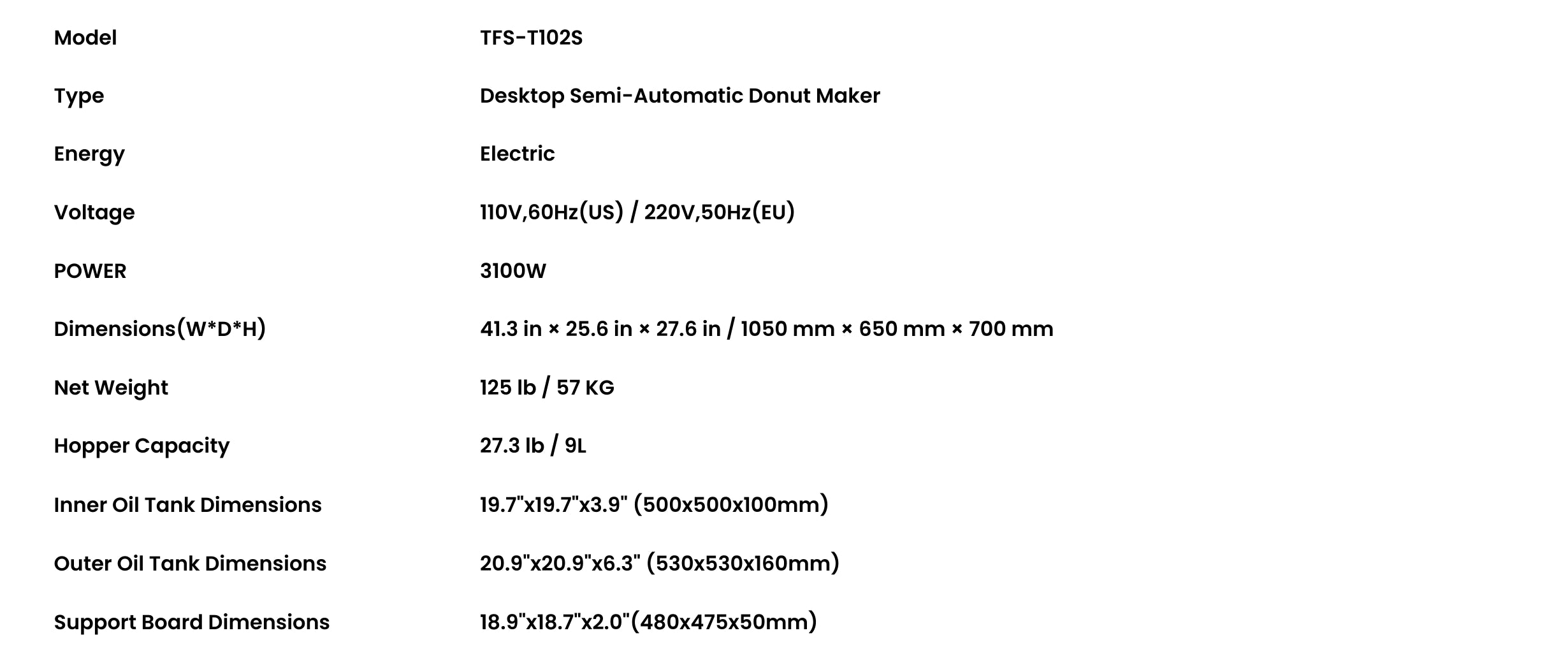

    ⚙️ Technical Specifications

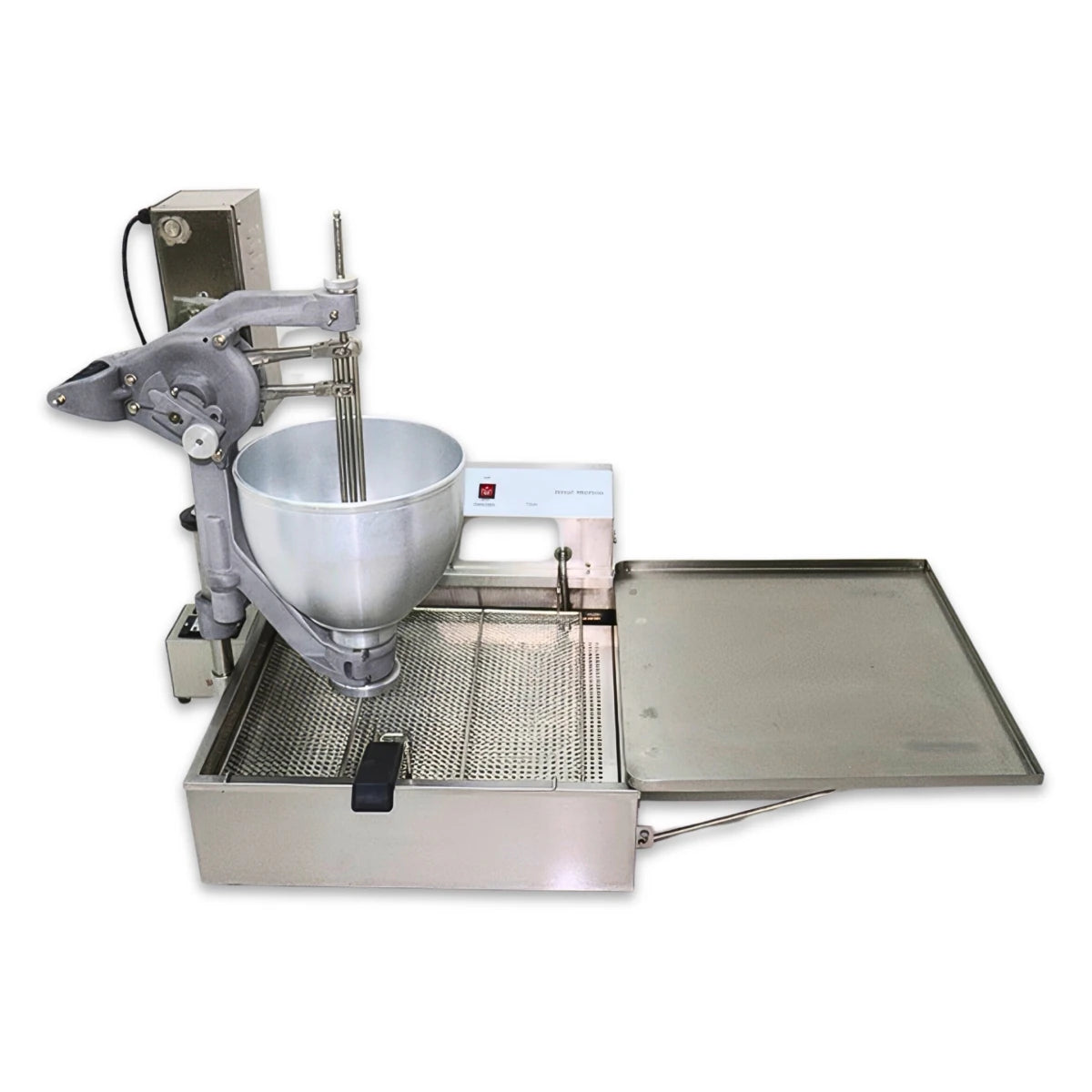

    • Model: Tenshine T-102S (Motorized Semi-Automatic Countertop Electric Donut Fryer)
    • Extrusion Mode: 50W Motorized Auto-Drop (With IC Timer Speed Regulator & Blanking Switch) + Manual Lever Override
    • Hourly Production Yield: Up to 500 pcs/hr (Rings & Mochi Flowers) or 2,000 pcs/hr (Loukoumades / Donut Balls)
    • Batch Tank Capacity: Up to 25 Full-Size Rings per Tank
    • Included Plunger Molds (3 Sets): Classic Ring, Mochi Pon de Ring Flower, and Loukoumades Ball
    • Batter Weight Adjustment: 3-Degree Mechanical Screw (Degree 1 Light to Degree 3 Dense)
    • Batter Hopper Capacity: 9.5 Quarts / 2.4 Gallons (9 Liters) on Pivoting H/L-Arm
    • Frying Oil Tank Capacity: Approx. 4.0 Gallons / 15.9 Quarts (15 Liters) with Built-In Oil Drain Valve
    • Inner Oil Tank Dimensions: 19.7" x 19.7" x 3.9" (500 x 500 x 100 mm)
    • Outer Oil Tank Dimensions: 20.9" x 20.9" x 6.3" (530 x 530 x 160 mm)
    • Side Support Drain Board Dimensions: 18.9" x 21.3" x 2.0" (480 x 540 x 50 mm)
    • Electrical Configuration: AC 110V–130V / 60Hz (Dedicated 30A Circuit) or AC 200V–240V / 50-60Hz (13.8A), 1-Phase
    • Rated Power: 3.05 kW / 3,050W Total (3,000W Heating Element + 50W Auto-Drop Motor)
    • Overheat Safety Limit: 392°F (200°C) Automatic Cut-Off with Rear Manual Reset Switch (R)
    • Construction Material: 100% Food-Grade 304 Stainless Steel
    • Overall Dimensions (W x D x H): 41.3" x 27.6" x 25.6" (1050 x 700 x 650 mm)
    • Net / Crated Shipping Weight: 79.4 lbs (36 kg) / 116.8 lbs (53 kg)

    📦 What’s Included?

    • 1x Tenshine T-102S 304 Stainless Steel Countertop Fryer Main Body (With Oil Drain Valve)
    • 1x 3.0 kW Control Head + 50W IC-Timer Speed Regulation Motor Box
    • 1x 9.5 Qt (9L) Stainless Steel Hopper Funnel with Blanking Switch & H/L-Type Swing Arm
    • 3x Interchangeable Stainless Steel Molds (Ring, Mochi Flower & Loukoumades Ball)
    • 1x Side Folding Cooling & Oil-Draining Board (With 2 Fixed Support Bars)

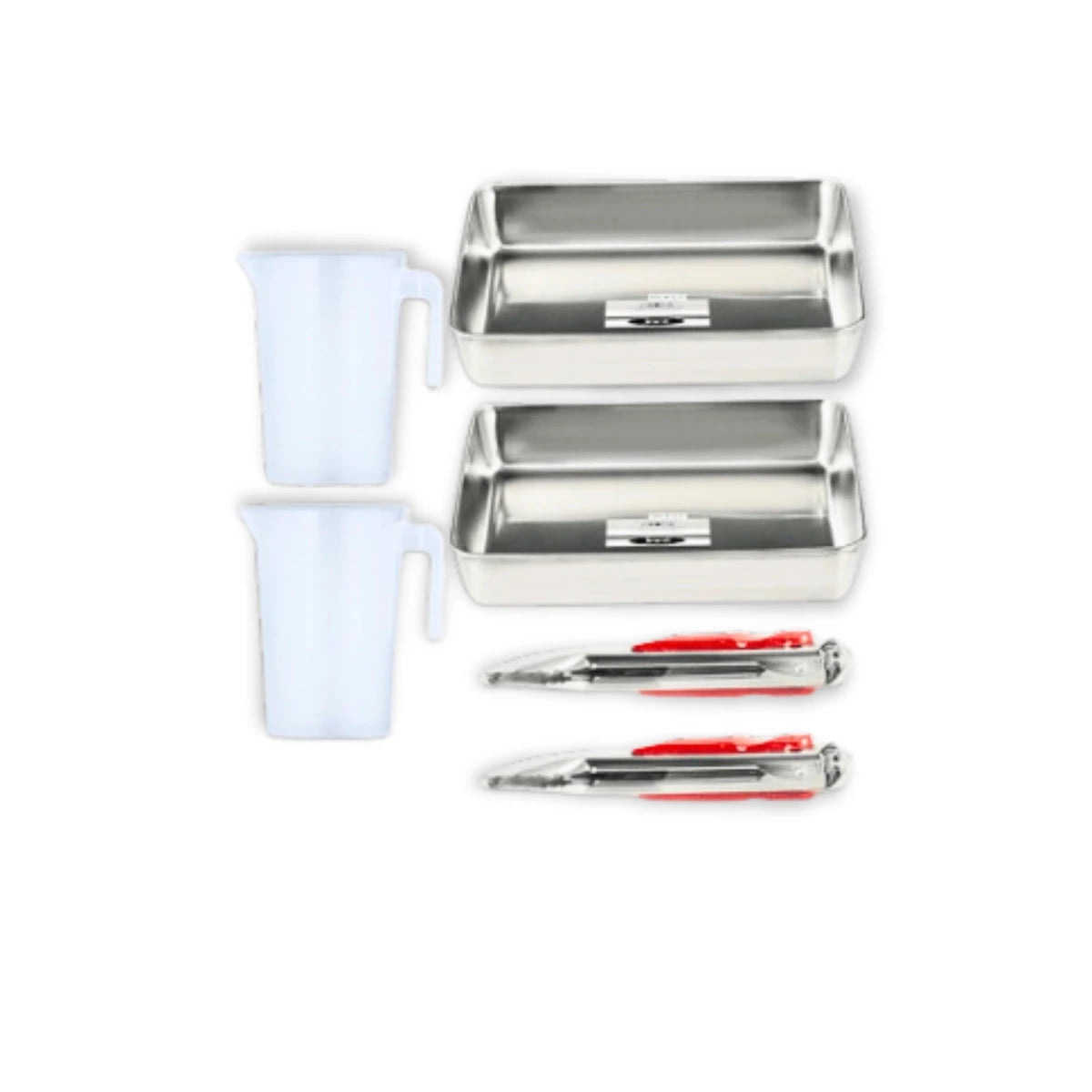

    • 1x Submerged Crumb Filter Plate, 1x Pressure Screen, 2x Measuring Cylinders, 2x Trays & 2x Food Tongs
    • 1x Operator Manual & 1-Year Commercial Parts Warranty

    ❓ Frequently Asked Questions

    Q1: What is the exact difference between this T-102S ($1,799) and the T-102 ($1,699)?

    A: Both models share the exact same 3.0 kW heating element, 19.7" x 19.7" (25 pcs/tank) vat, 9.5 Qt (9L) swing-arm hopper, and 3 shape molds (Ring, Mochi Flower, and Ball). For just $100 more, this T-102S model adds a 50W speed-regulation motor box (IC Timer) and an upper Blanking Switch so the plunger drops batter automatically without manual lever pulling. If you prefer 100% hand-lever operation, view our T-102 Manual Countertop Donut Fryer.

    Q2: Can this machine make both Japanese Mochi Donuts and Greek Loukoumades?

    A: Yes! That is why the T-102S is a top seller for specialty dessert cafes. Install the Flower mold to drop pull-apart Pon de Ring mochi donuts, or swap in the multi-port Ball mold and turn on the auto-drop motor to produce up to 2,000 Greek loukoumades per hour.

    Q3: How does the 1–3 degree thickness adjustment work?

    A: On the upper cast-aluminum control head, rotating the adjustment screw shifts the plunger stroke across 3 calibrated degrees (1 = lightest drop, 3 = heaviest drop), giving you 100% portion control across every shift without batter waste.

    Q4: Do you offer a propane or natural gas version of this motorized T-102S for food trucks?

    A: Yes! If you operate a mobile concession trailer where generator electrical capacity is limited, check out our gas-heated counterparts in our Commercial Countertop & Tabletop Donut Machines collection, or explore our full range of Commercial Donut Machines, Automatic Doughnut Makers & Fryers.
