Heavy-Duty Commercial Countertop Gas Donut Fryer & Auto-Drop Mochi Maker (T-102SRQ, 40,945 BTU + 50W Motor, 3 Molds)

Sale price
$1,799.00
Regular price
$2,400.00
You save
$601.00 (25%)

The Tenshine T-102SRQ is a heavy-duty commercial countertop gas donut fryer and motorized auto-drop pastry maker engineered specifically for high-volume food trucks, festival concession trailers, and bakeries. Combining a massive 40,945 BTU/hr (12 kW) dual-burner Liquid Propane (LPG) or Natural Gas heating system with an ultra-low-draw 50W IC-timer motorized dropping head, it delivers rapid thermal recovery and hands-free batter extrusion without overloading mobile generators. Featuring a 9.5-quart (9L) swing-arm hopper, a 4.0-gallon (15L) square vat, and 3 interchangeable stainless steel molds (Ring, Mochi Flower, and Loukoumades Ball), it serves as an enterprise-grade alternative to traditional Western foodservice brands.

Manuals, Wiring & Spec Sheets (PDF)

📄 Download Official Tenshine T-102SRQ / T-102S Series Motorized Hopper & Donut Fryer Manual (PDF)

  • Hybrid 40,945 BTU/Hr Gas + 50W Auto-Drop Architecture: Combines dual 12.0 kW (40,945 BTU/hr) LPG/Natural Gas burners with the T-102S 50W speed-regulation motor box and upper Blanking Switch on AC 110V/60Hz or 220V/50-60Hz (draws less than 0.5 Amps!).
  • Dual Manual Gas Flame Knobs & Sight Ports: Details independent left/right burner flame regulation, front visual ignition inspection holes, and the 37.4" x 25.6" x 21.7" (950 x 650 x 550 mm) heavy-gauge 304 stainless steel chassis.
  • H/L-Type Swing Arm & 3-Shape Molds (Ring, Mochi Flower, Ball): Step-by-step mechanical assembly diagrams (Steps 1–6) for mounting the pivoting 9.5-quart (9L) batter funnel, 50W IC-timer controller, 1–3 degree batter weight screw, and 3 interchangeable plunger molds.
  • Side Cooling Drain Board, Crumb Basket & Oil Drain Valve: Instructions for installing the angled side oil-draining board with support bars, submerged dual-handle crumb filter basket, and front safety oil drain valve for rapid shift cleanups.
Voltage:
LPG / NG Gas + 110V/60Hz (50W US Plug Auto-Drop Motor)

Product variant with selected options does not exist!

In stock and ready for shipping
🌍 Global Orders: $99 Freight Deposit (Final shipping balance quoted & billed separately before dispatch.)

Frequently Bought Together

American Express
Apple Pay
Bancontact
Google Pay
iDEAL Wero
Mastercard
MB WAY
Shop Pay
Union Pay
Visa
Email or WhatsApp Us Now

🛡️ Risk-Free: Protected by Tenshine's 1-Year Commercial Parts Warranty.
💬 Enterprise Support: Need a proforma invoice, wire transfer instructions, or volume pricing? Chat with our B2B specialists instantly.

First image of detail page
    Hero banner of the Tenshine T-102SRQ commercial gas donut maker machine, designed for high-volume bakeries and food trucks with massive 12kW heating.
Product Highlights
    Six performance capability icons for the gas donut maker machine, including food-grade stainless steel construction and 3 interchangeable molds.
Brand banner
    Industrial gas donut machine operating efficiently in a commercial kitchen setup, utilizing a low 50W electrical draw perfect for mobile catering and QSRs.
Tenshine foodservice solutions for QSR & restaurants. Factory-direct commercial pressure fryers, griddles, prep tables & soft serve machines with US free DDP!
First image of detail page
    Hero banner of the Tenshine T-102SRQ commercial gas donut maker machine, designed for high-volume bakeries and food trucks with massive 12kW heating.
second sheet of detail
    Four core profitability features of the heavy-duty gas donut making machine, highlighting rapid gas heat recovery and precise portion control.
Product Diagram 1
    Core performance highlights of the commercial donut maker, showcasing its 12kW gas thermal power and instant heat recovery for continuous frying.
Product Diagram 2
    The Tenshine T-102SRQ gas donut maker machine operating seamlessly in a mobile food truck setup, utilizing a low 50W electrical draw and standard propane.
Product Diagram 3

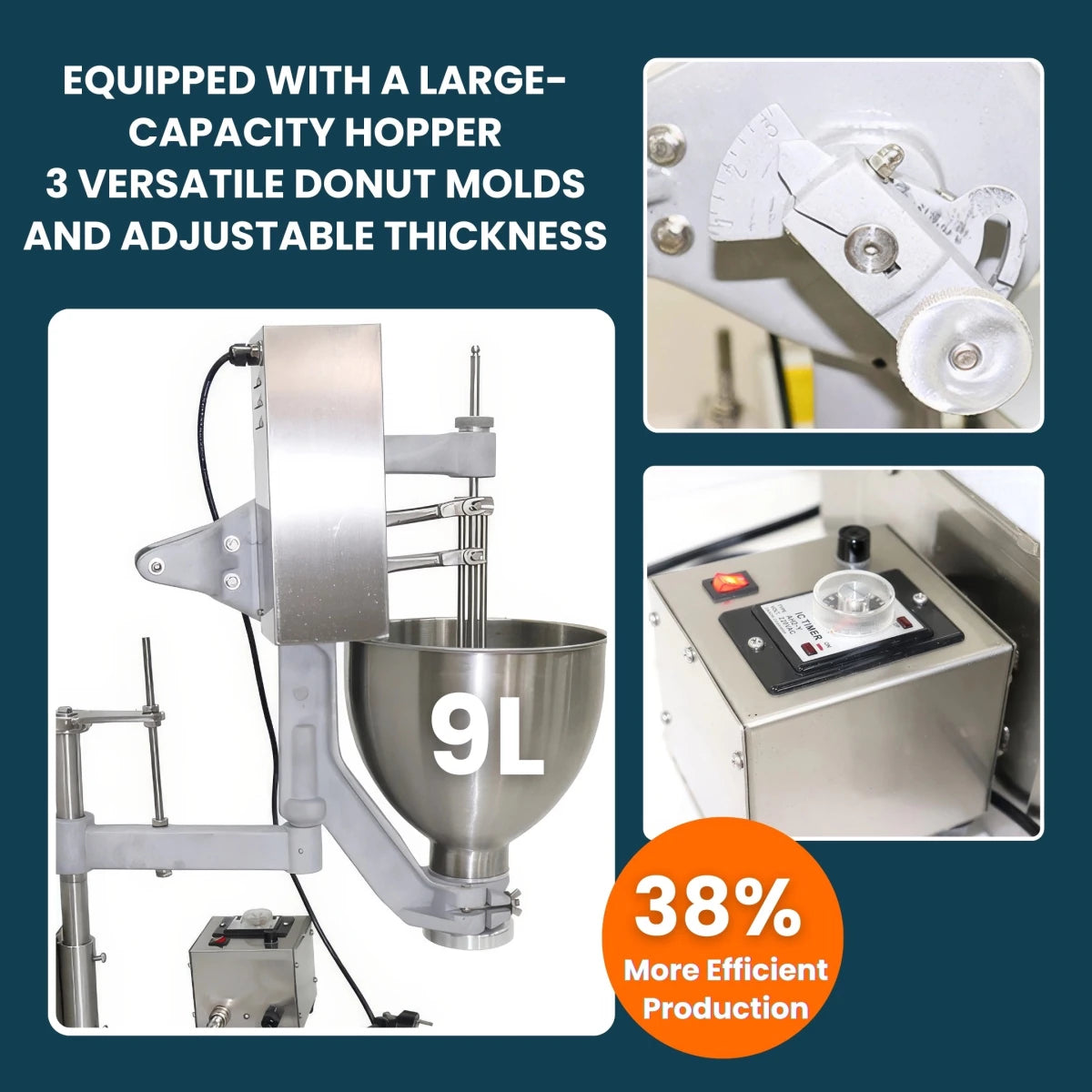

    Three-panel operational workflow of the semi-automatic donut machine, demonstrating the precision gas thermostat and adjustable thickness molds.
Product Diagram 4

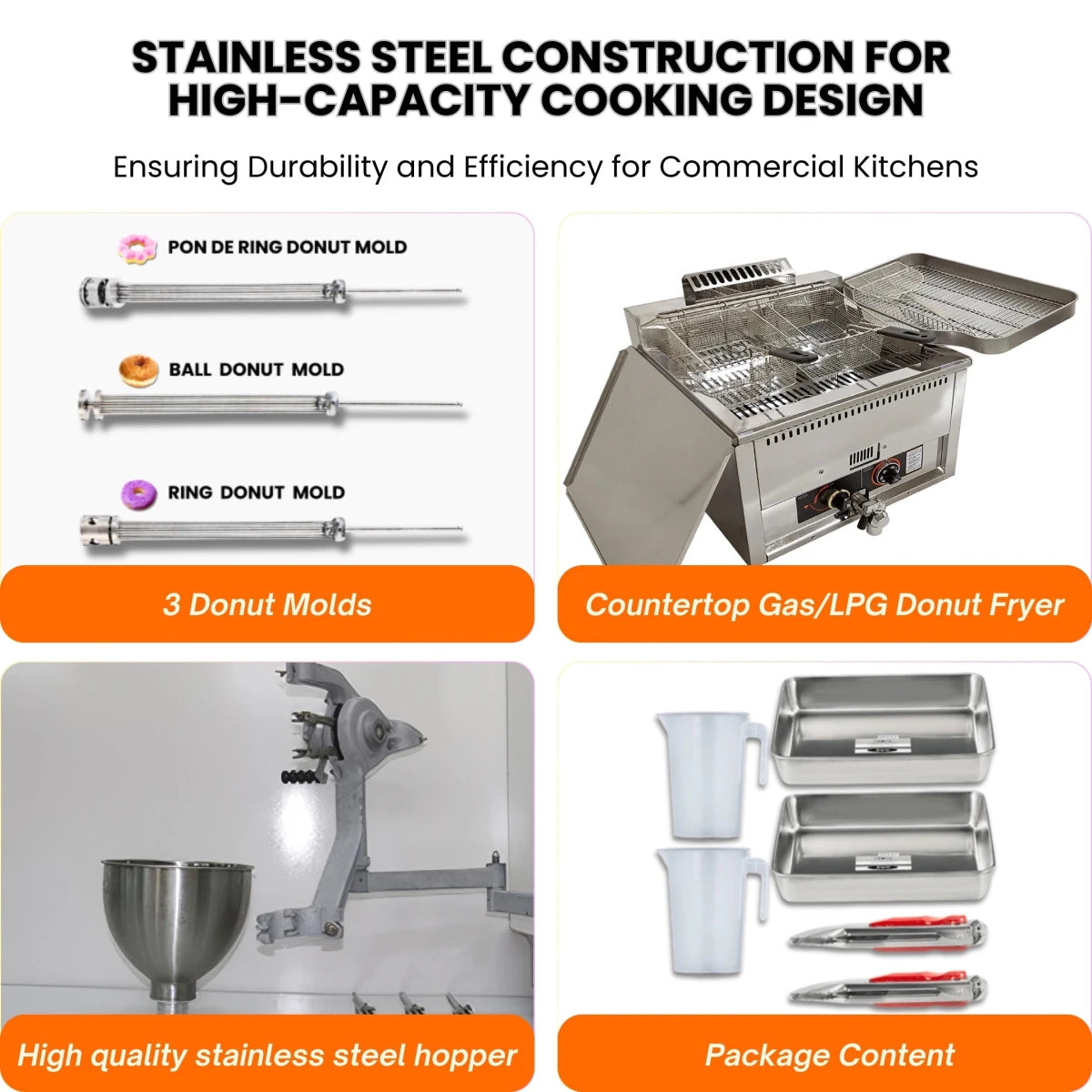

    Four-panel detail view of the industrial gas donut fryer, highlighting the food-grade stainless steel construction and heavy-duty gas burner components.
Product Diagram 5
    Profitability and ROI value proposition of the commercial gas donut making machine, drastically lowering food cost percentages for franchises.
Product Diagram 6
    Summary of value points for the heavy-duty donut maker machine, emphasizing absolute portion control and reduced prep labor hours in the kitchen

    🔥 40,945 BTU/HR GAS HEAT + 50W MOTORIZED AUTO-DROP: The ultimate food truck hybrid! Uses Liquid Propane (LPG) or Natural Gas for heavy heating while drawing just 50W (<0.5 Amps) of electricity to run the automatic batter-dropping motor.

    🌸 3 INTERCHANGEABLE SHAPE MOLDS (RING, MOCHI FLOWER & LOUKOUMADES BALL): Extrude up to 500 classic rings/mochi flowers or 2,000 Greek loukoumades balls per hour from one 9.5 Qt (9L) pivoting hopper.

    🛡️ DUAL FLAME CONTROLS, DRAIN VALVE & COOLING BOARD: Heavy-gauge 304 stainless steel square vat (15 to 25 rings/batch) with dual gas dials, front flame sight holes, safety oil drain valve, and folding drain tray.

    The Ultimate Food Truck Hybrid: 40,945 BTU/Hr Gas Heating Meets Hands-Free 50W Motorized Extrusion Mobile food truck operators and festival caterers face a classic dilemma: electric fryers overload portable generators, while manual lever fryers cause operator wrist fatigue during non-stop queues. The Tenshine T-102SRQ Commercial Countertop Gas Donut Fryer solves both problems at once. By pairing a massive 40,945 BTU/hr (12 kW) dual-burner gas heating base with a 50W IC-timer motorized dropping head, you get instant gas thermal recovery while drawing less electrical power than a single lightbulb (<0.5 Amps) to automate your batter extrusion!

    🚀 Core Performance & Profitability Advantages

    • 50W Motorized Auto-Drop + Manual Dual-Mode Hopper Eliminate manual lever pulling during peak rushes without taxing your generator. Flip the upper Blanking Switch and set your extrusion interval on the side-mounted 50W IC-Timer Speed Regulation Box. The plunger automatically cycles up and down to drop uniform rings while you guide the L-type swing arm across the oil. Want manual single-drop control for small test batches? Simply switch off the motor and use the hand lever.
    • 40,945 BTU/Hr (12 kW) Dual-Burner Gas Recovery Powered by Liquid Propane (LPG) or Natural Gas, two independent front burner dials and visual flame-inspection ports give chefs immediate, responsive heat control. Dropping 15 to 25 cold dough rings into the 4.0-gallon (15L) vat won’t stall your oil temperature—preventing greasy, oil-logged pastries.
    • 3-in-1 Multi-Shape Versatility (Ring, Mochi Flower & Loukoumades Ball) Unlock three high-margin specialty menus from a compact 37.4" x 25.6" footprint. The T-102SRQ includes 3 quick-swap 304 stainless steel plunger molds plus a 3-degree mechanical batter weight screw (Degrees 1 to 3):
    1. Classic Ring Mold: Extrudes traditional American cake and yeast-style rings (up to 500 pcs/hr).
    2. Flower Mold (Mochi / Pon de Ring): Drops iconic pull-apart bubble rings for viral Japanese mochi donuts.
    3. Multi-Port Ball Mold (Loukoumades / Donut Holes): Drops multiple spherical bites per cycle—pumping out up to 2,000 Greek honey puffs or cake donut holes per hour!
    • Chef-Centric Mobile Sanitation (Drain Board, Crumb Basket & Oil Valve) Engineered for fast, code-compliant shift cleanups in tight trailers:
    1. Attached Folding Cooling & Drain Plate: Freshly fried donuts cool on the angled side tray while excess shortening drains cleanly back into the vat.
    2. Dual-Handle Crumb Filter Basket & Pressure Screen: Lifts out burnt batter sediment in seconds and keeps buoyant rings evenly submerged.
    3. Front Safety Oil Drain Valve: Empty and filter cooled frying oil effortlessly without lifting a heavy tank.

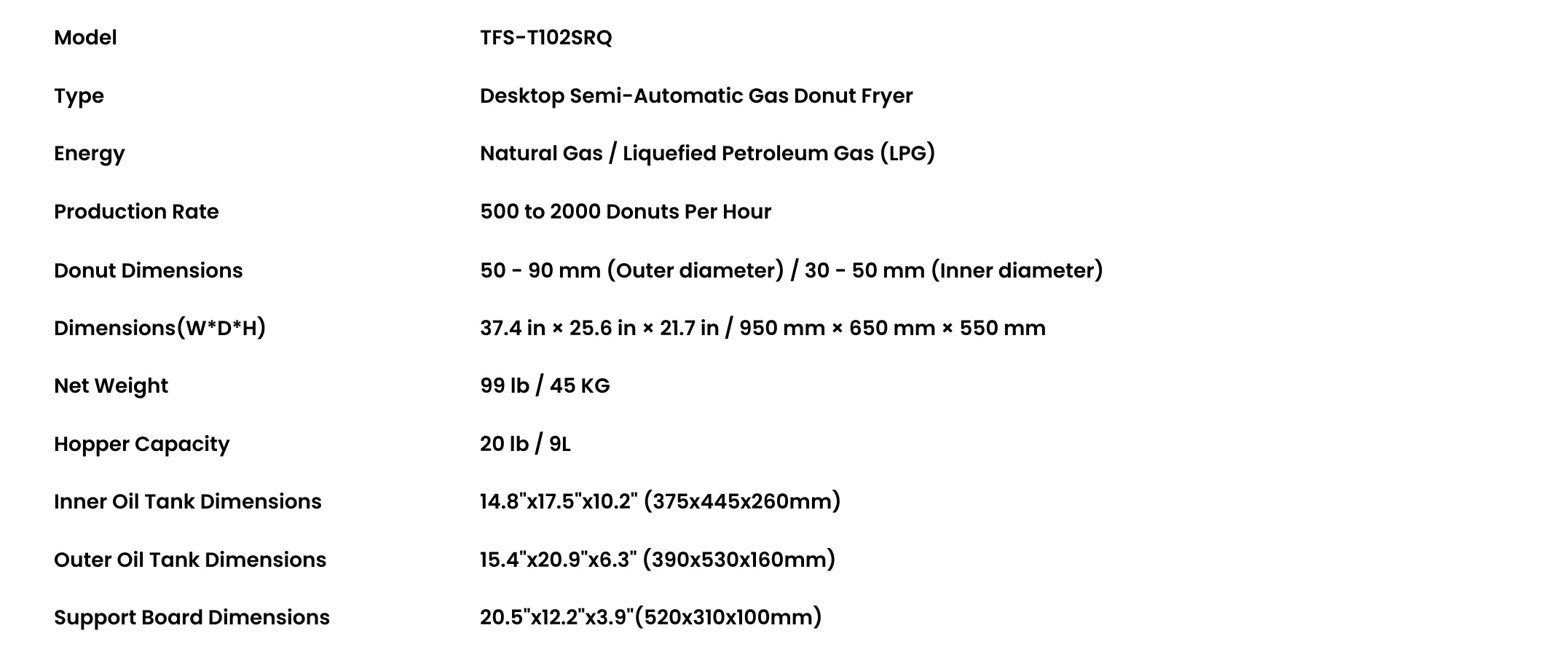

    ⚙️ Technical Specifications

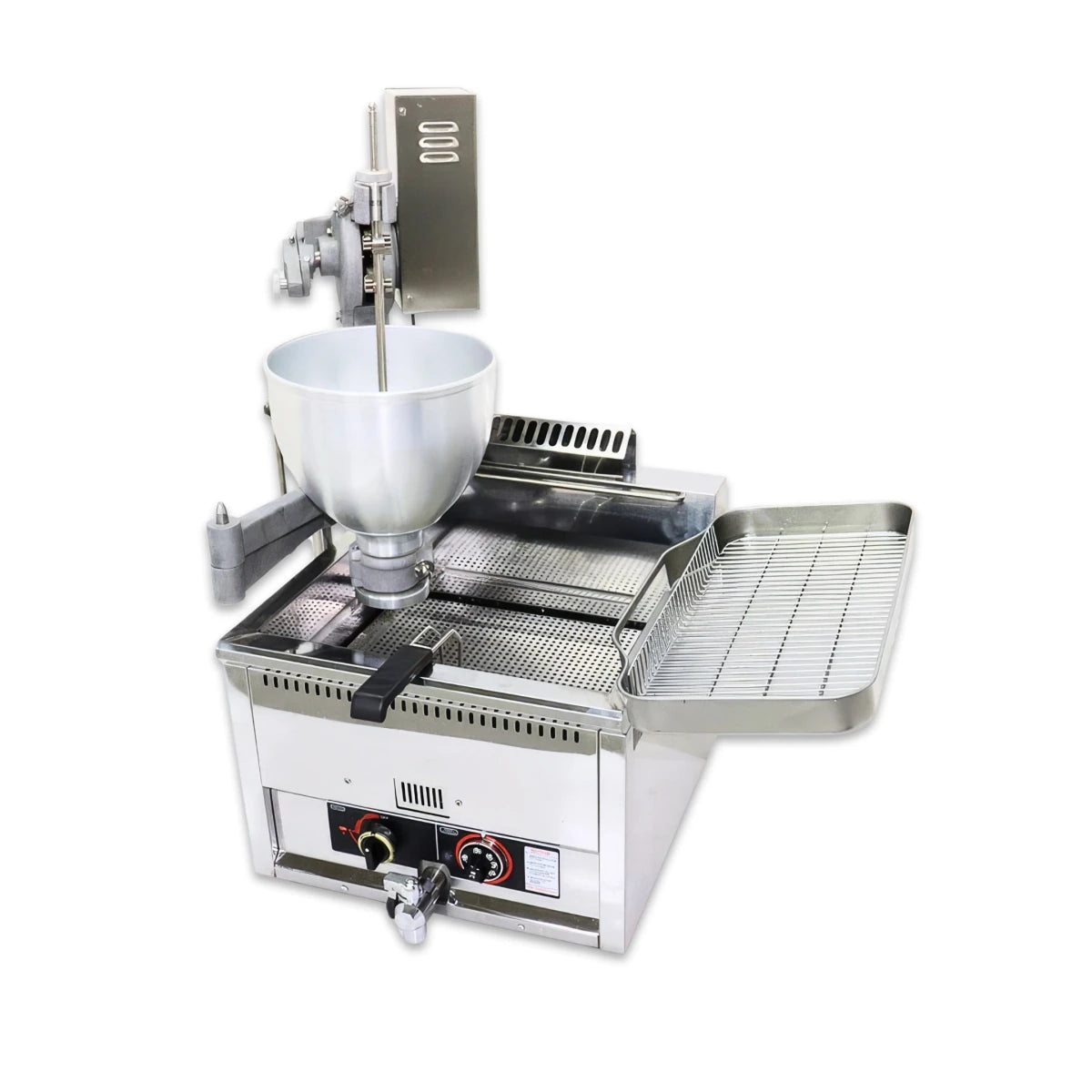

    • Model: Tenshine T-102SRQ (Motorized Semi-Automatic Countertop Gas Donut Fryer)
    • Heating Power Source: Liquid Propane (LPG, 2,800–3,000 Pa Low-Pressure Regulator) or Natural Gas (NG)
    • Gas Thermal Output: 40,945 BTU/hr (12.0 kW) Dual-Burner System with Manual Flame Dials & Sight Holes
    • Extrusion Mode: 50W Motorized Auto-Drop (With IC Timer Speed Regulator & Blanking Switch) + Manual Lever Override
    • Electrical Requirement (For Auto-Drop Motor Only): AC 110V/60Hz or 220V/50-60Hz, 50W (<0.5 Amps — Compatible with small 12V inverters or standard outlets)
    • Batch Tank Capacity: 15 to 25 Full-Size Rings per Tank (Up to 500 Rings/Mochi or 2,000 Balls per Hour)
    • Included Plunger Molds (3 Sets): Classic Ring, Mochi Pon de Ring Flower, and Loukoumades Ball
    • Batter Weight Adjustment: 3-Degree Mechanical Screw (Degree 1 Light to Degree 3 Dense)
    • Batter Hopper Capacity: 9.5 Quarts / 2.4 Gallons (9 Liters) on Pivoting H/L-Arm

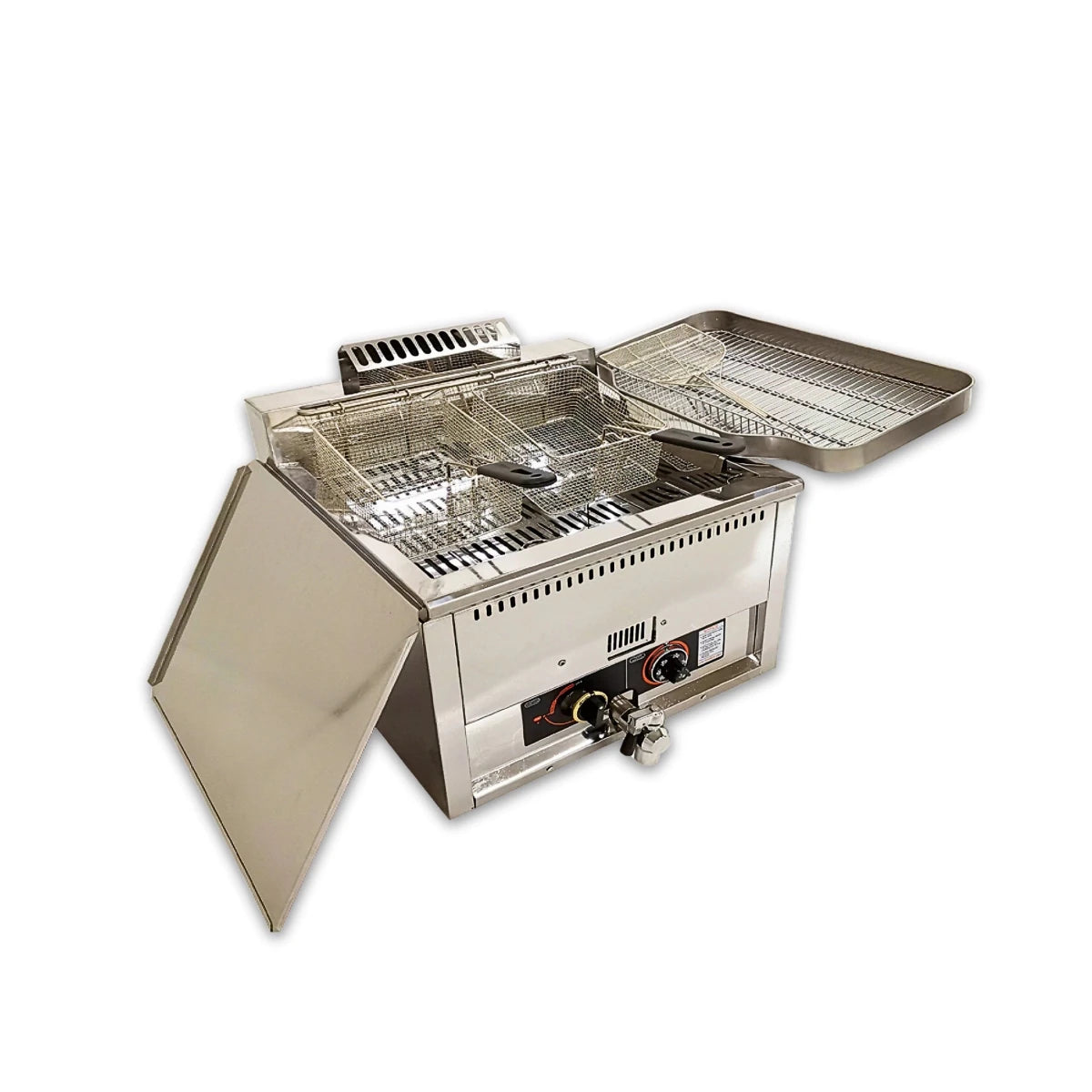

    • Frying Oil Tank Capacity: Approx. 4.0 Gallons / 15.9 Quarts (15 Liters) with Front Oil Drain Valve
    • Construction Material: Heavy-Duty Food-Grade 304 Stainless Steel
    • Net Machine Dimensions (W x D x H): 37.4" x 25.6" x 21.7" (950 x 650 x 550 mm)
    • Shipping Weight: 110.2 lbs (50 kg)

    📦 What’s Included?

    • 1x Tenshine T-102SRQ 304 Stainless Steel Commercial Gas Donut Fryer (With Oil Drain Valve)
    • 1x 50W IC-Timer Speed Regulation Motor Box & Drive Head (With Blanking Switch)
    • 1x 9.5 Qt (9L) Stainless Steel Hopper Funnel with H-Type & L-Type Swing Arm
    • 3x Interchangeable Stainless Steel Molds (Ring, Mochi Flower & Loukoumades Ball)
    • 1x Side Folding Cooling & Oil-Draining Board (With Support Bars)
    • 1x Dual-Handle Submerged Crumb Basket, Pressure Screen, Measuring Pitchers, Trays & Tongs
    • 1x Operator Manual & 1-Year Commercial Warranty

    ❓ Frequently Asked Questions (B2B Food Truck & Bakery Guide)

    Q1: What is the difference between this T-102SRQ ($1,799) and the T-102RQ ($1,599) gas donut fryer?

    A: Both models share the exact same 40,945 BTU/hr (12 kW) dual-burner gas fryer base, 9.5 Qt (9L) swing-arm hopper, and 3 shape molds (Ring, Mochi Flower, and Ball). While the T-102RQ relies 100% on manual hand-lever pulling, this upgraded T-102SRQ adds a 50W speed-regulation motor box (IC Timer) and Blanking Switch that automatically drops batter into the oil at your chosen speed. If you need 100% zero-electricity operation, view our T-102RQ Manual Gas Donut Fryer.

    Q2: Will the 50W auto-drop motor overload my food truck generator?

    A: Not at all! Because 100% of the heavy heating is handled by the 40,945 BTU/hr gas burners, the electric motor only draws 50 watts (less than 0.45 amps on 110V)—the same as a laptop charger. You can even run it off a small portable power station or 12V vehicle inverter.

    Q3: Can I make both Japanese Mochi Donuts and Greek Loukoumades with this machine?

    A: Yes! Install the Flower mold to drop pull-apart Pon de Ring mochi donuts, or swap in the multi-port Ball mold and engage the 50W auto-drop motor to produce up to 2,000 Greek loukoumades per hour with zero wrist strain.

    Q4: Do you offer an all-electric version of this motorized 3-mold fryer for indoor malls?

    A: Yes! If your venue prohibits gas flames, check out our 3,050W all-electric T-102S Motorized Electric Donut Fryer, browse our Commercial Countertop & Tabletop Donut Machines collection, or explore our complete lineup of Commercial Donut Machines, Automatic Doughnut Makers & Fryers.

    🚀 Corporate / Franchise B2B Accounts

    Equipping a new franchise location or upgrading your institutional kitchen? We offer tiered pricing and dedicated support for multi-unit rollouts. [Apply for a Tenshine Wholesale Account Here]

Product Parameters

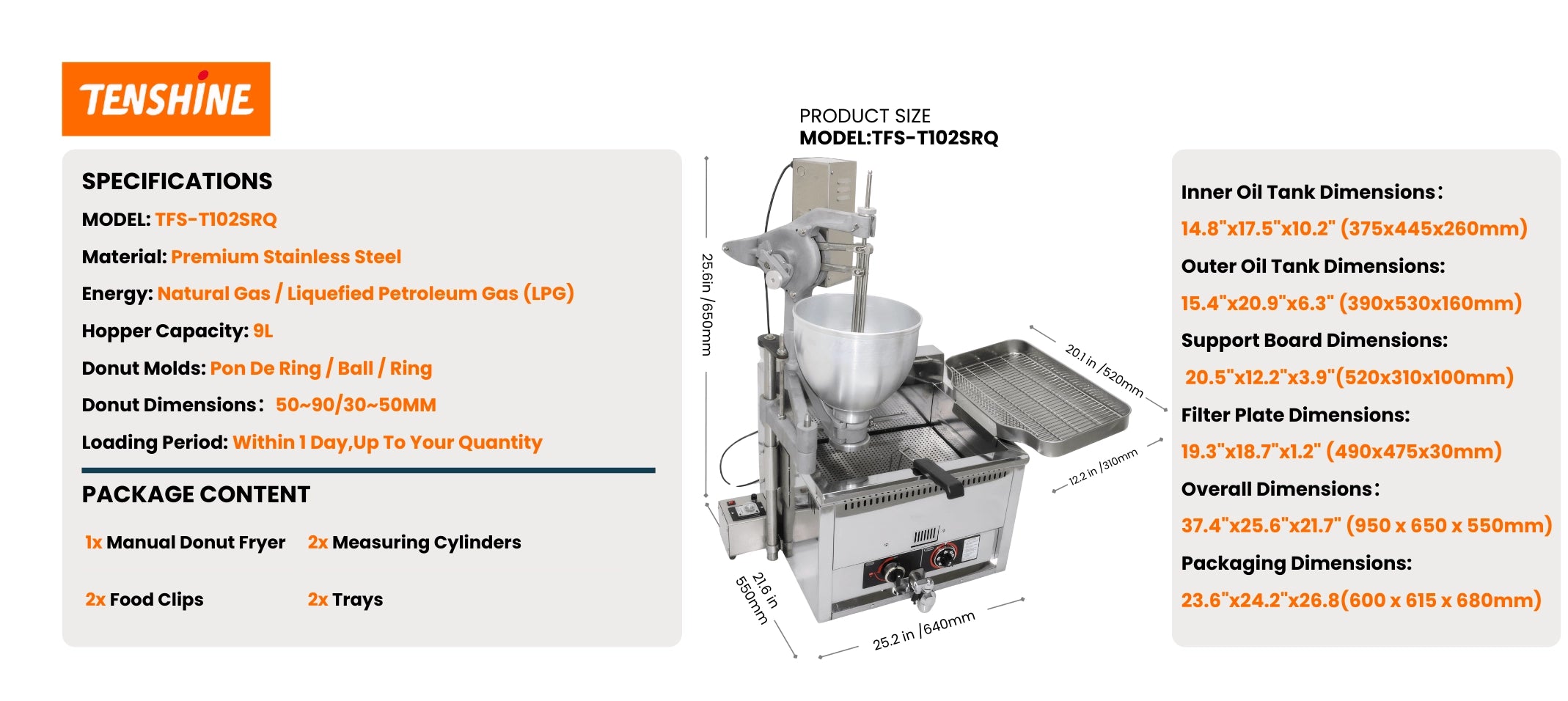

    Detailed dimensions and blueprint of the commercial gas donut fryer, featuring a space-saving 37.4 by 25.6-inch footprint for restaurant prep tables.
