Transform your prep line into a fully automated, high-margin production powerhouse
Elevate your bakery or food truck business with the Tenshine T-101U single-row automatic commercial donut maker. Designed to integrate forming, frying, flipping, and collecting into one seamless hands-free operation, this compact donut robot delivers restaurant-quality consistency with absolute portion control.
🎯 At a Glance: Core Capabilities
- Best for: Mid-volume bakeries, bustling cafes, mobile food trucks, and startup concession stands demanding automated, hands-free production.
- Precision Sizing (Classic Rings): Includes 3 commercial-grade size molds (25mm, 35mm, 45mm) out of the box. Create everything from mini 30mm bites to massive 120mm (4.7") premium donuts.
- Power Output: Driven by a robust 3000W (3kW) commercial electric heating system, ensuring rapid heat recovery for consistent golden-brown results.
🚀 Core Performance & Mechanical Excellence

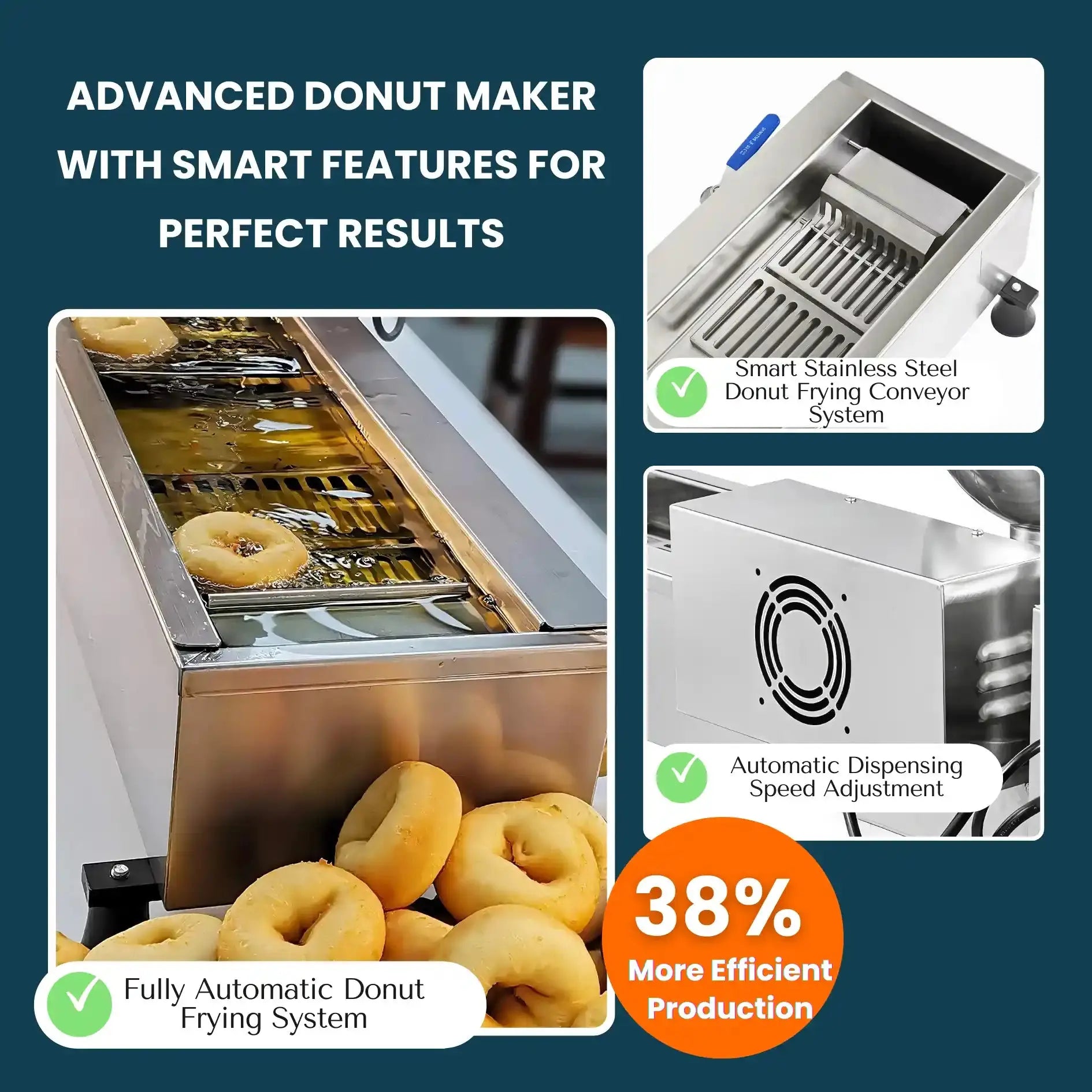

- 100% Fully Automatic Operation: From dough dropping to the final dispense, the T-101U handles the entire process. Powered by an advanced Lever-Start Conveyor System and a Dynamic Wind-Wheel Oil Circulation mechanism, it guarantees a smooth, jam-free workflow.
- High-Volume Yield with Auto-Counter: The single-row conveyor processes up to 500 pieces per hour. A built-in intelligent digital counting system keeps strict track of your inventory, protecting your food cost margins.

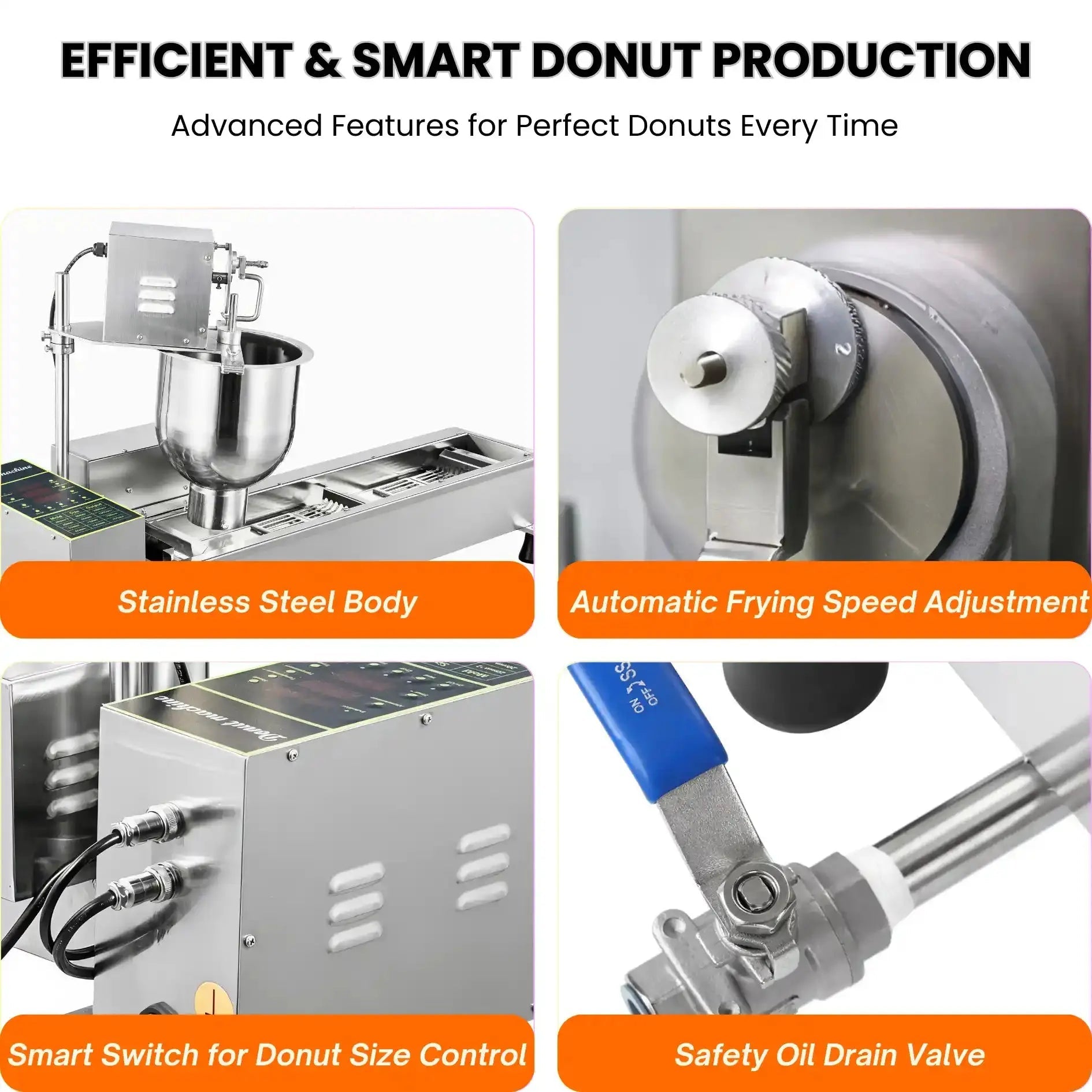

- Speed & Thickness Control: Easily adjust the frying time via the speed regulator, and tweak the plunger depth to control batter drop thickness, catering precisely to your local market preferences.

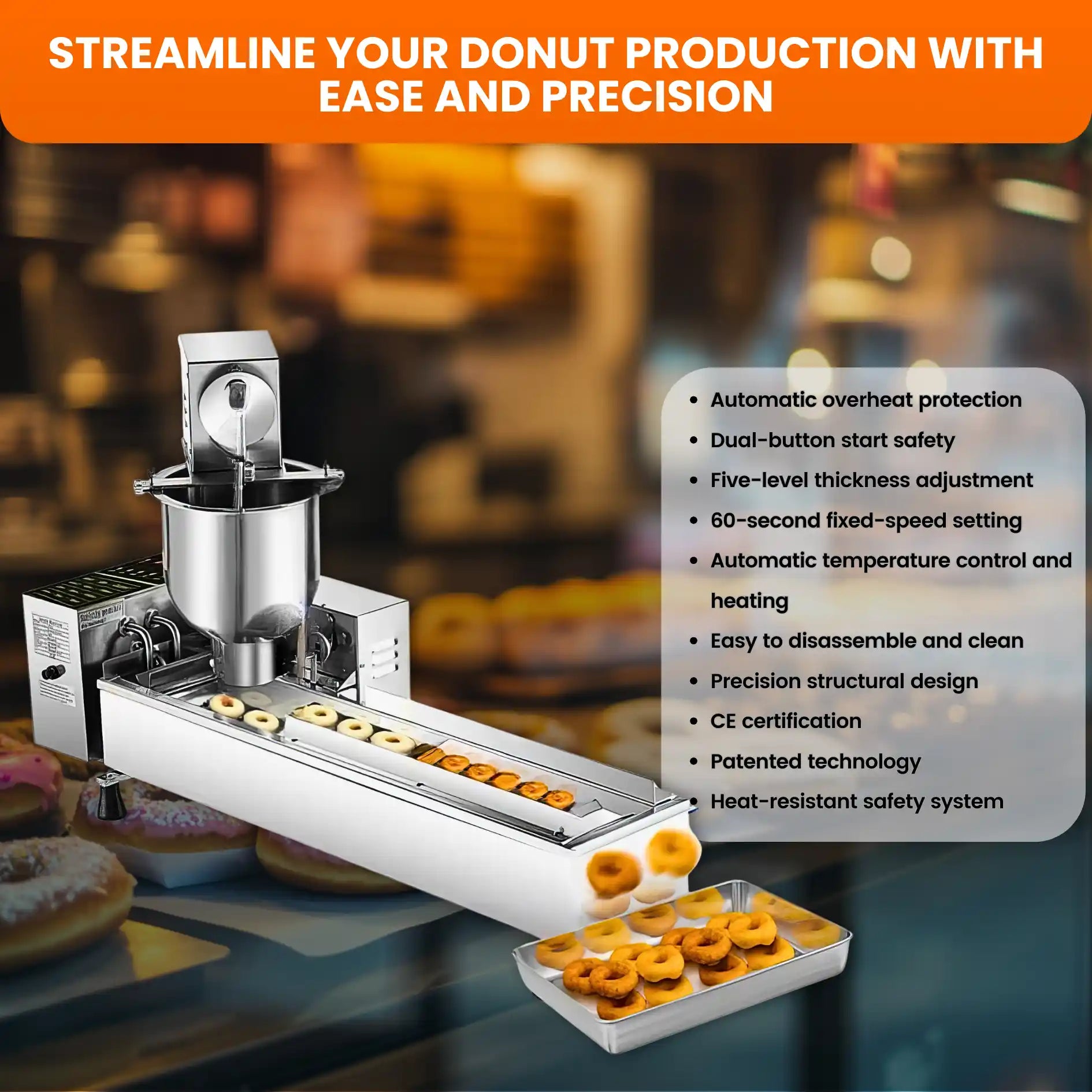

🛡️ Smart Operation & Ultimate Safety
- Dual Temperature Protection System: Built for relentless continuous use. The smart E-Box features automatic precise temperature regulation, backed by an independent over-temperature emergency cutoff (超高温保护系统) to guarantee 100% fire safety.
- End-of-Shift Oil Management: The massive 15-Liter oil tank (815x175x100mm) features an integrated commercial safety oil drain valve, making end-of-day filtering and cleaning fast and code-compliant.
- CE Certified Commercial Build: Holding both utility and appearance patents, the robust machine body and 7L hopper are constructed from heavy-duty food-grade stainless steel.

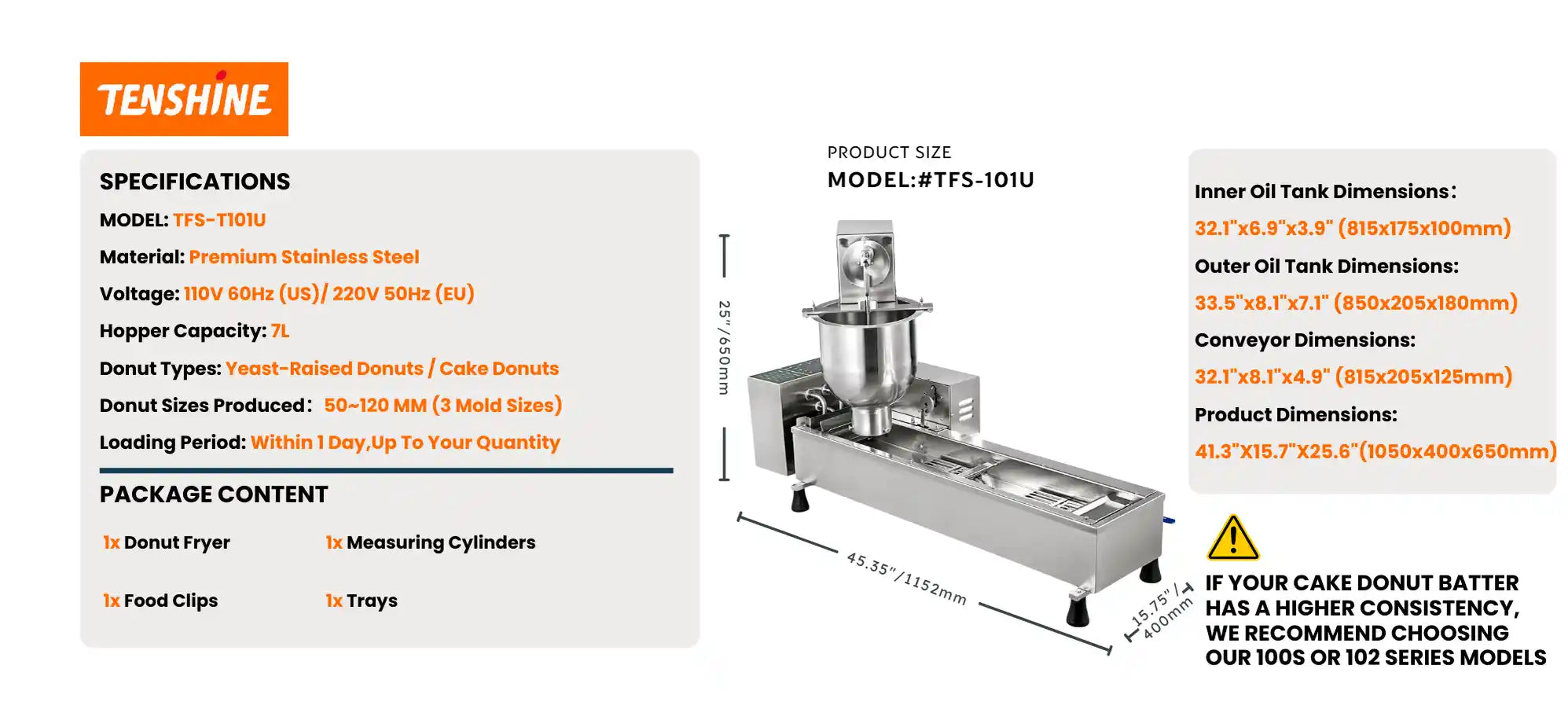

📊 Technical Specifications
- SKU Item: TS-T101U Single Row Automatic Donut Maker (CE Certified)
- Power Source: Commercial Electric (Requires Grounded Connection)
- Thermal Power: 3000W (3kW)
- Voltage: 220V/50-60Hz (110V customization available upon request)
- Production Capacity: 500 Pieces / Hour
- Included Molds (Classic Ring): 3 Sets (25mm, 35mm, 45mm)
- Donut Diameter Range: 1.2" - 4.7" (30mm - 120mm depending on mold)
- Batter Hopper Capacity: 7 Liters (7L)
- Frying Tank Capacity: 15 Liters (15L)
- Oil Tank Dimensions: 32.1" x 6.9" x 3.9" (815 x 175 x 100 mm)
- Conveyor Dimensions: 32.1" x 8.1" x 4.9" (815 x 205 x 125 mm)
- Net Dimensions (L x W x H): 41.3" x 15.7" x 25.6" (1050 x 400 x 650 mm)
- Packing Dimensions: 42.9" x 17.5" x 18.3" (1090 x 445 x 465 mm)
- Weight (Net / Gross): 62 lbs (28 kg) / 75 lbs (34 kg)
📦 What’s in the Box?

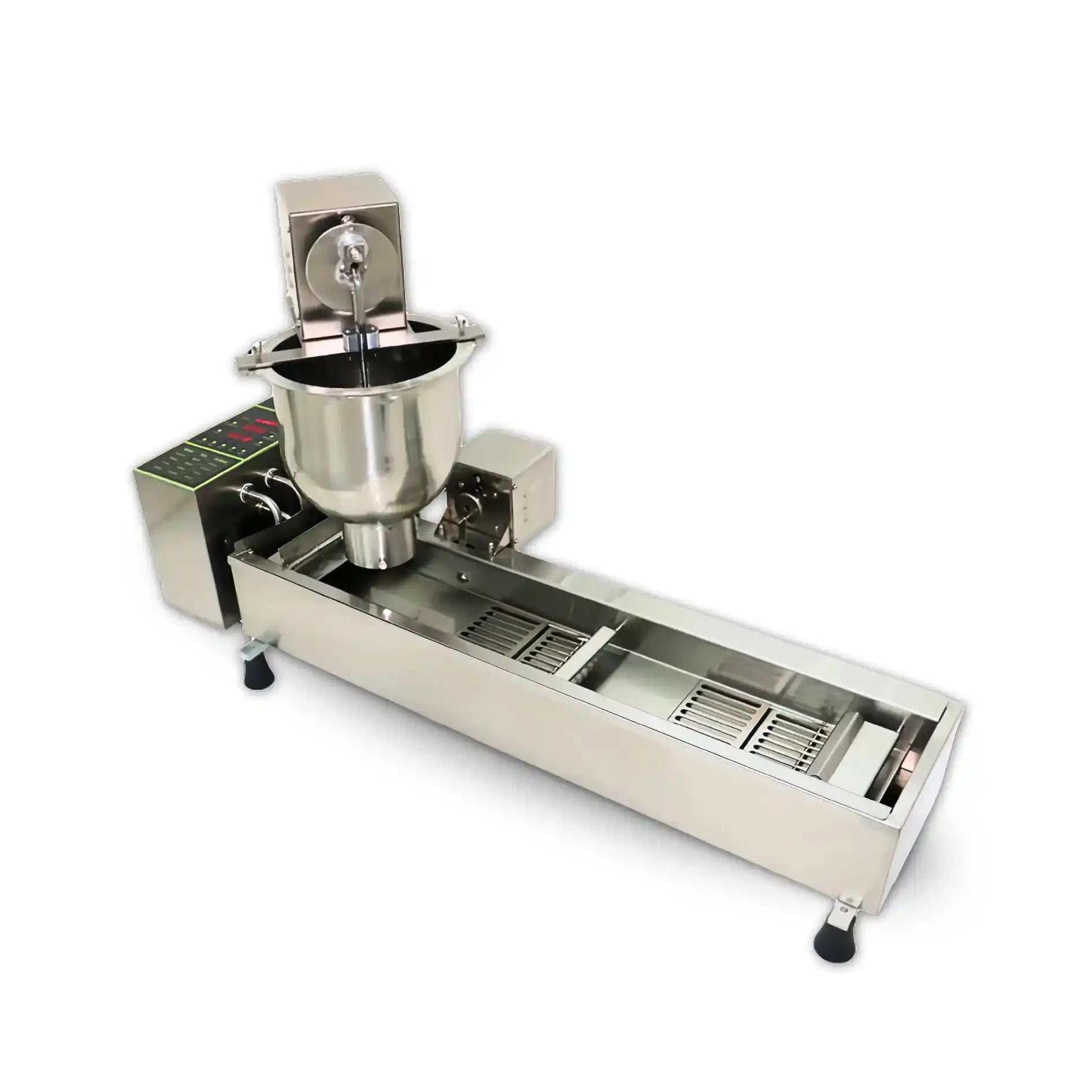

- 1x CE-Certified Fryer Main Body (Stainless Steel)

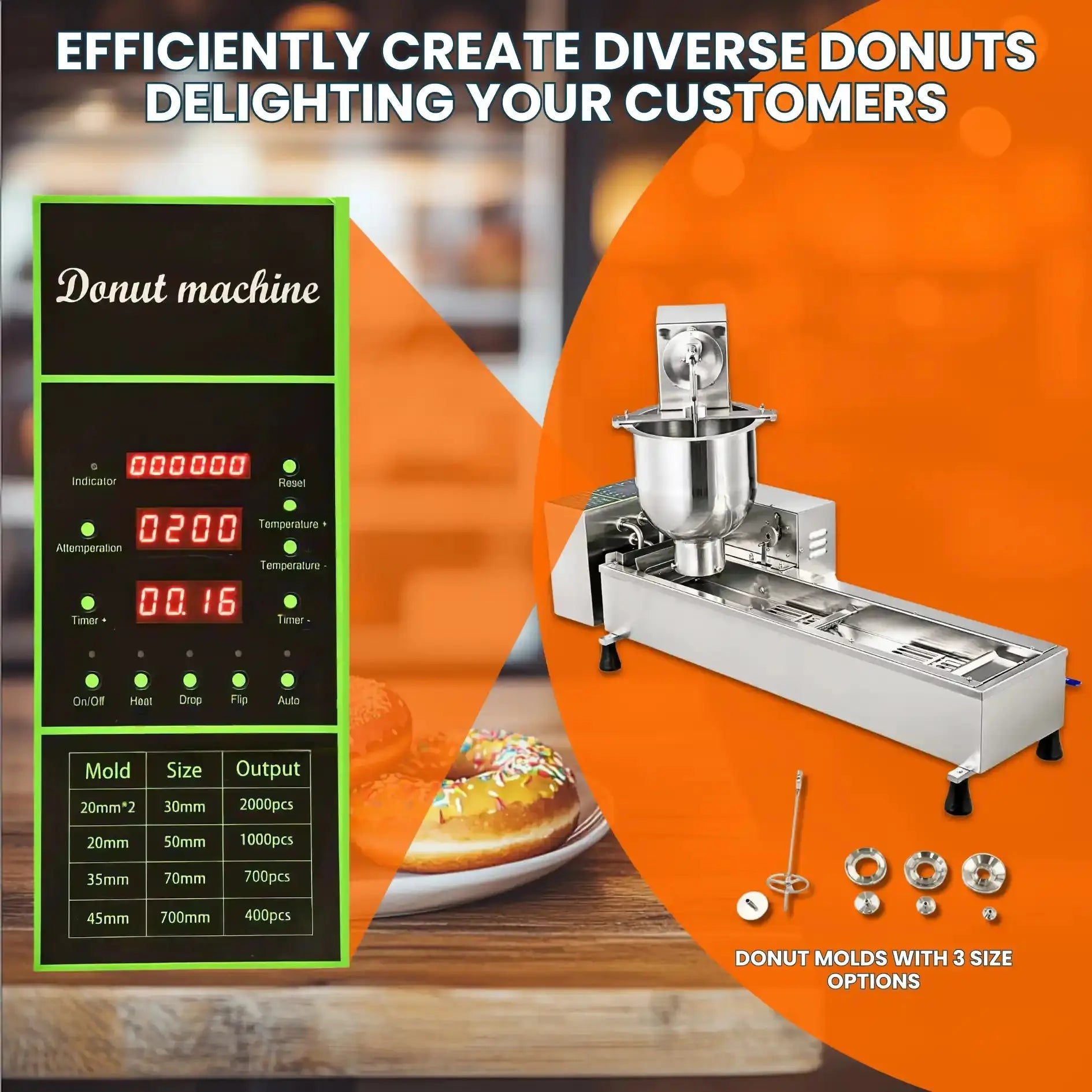

- 1x Precision E-Box (Control Panel with Auto-Counter)
- 1x Automated Lever-Action Transmission Rod
- 1x 7L Batter Funnel / Hopper
- 1x Plunger Assembly with 3 Size Mold Sets (25/35/45mm)
❓ Frequently Asked Questions (Q&A)
Q: Does this machine completely automate the frying process?
A: Yes! Once the batter is loaded and the temperature is set, the T-101U autonomously drops, fries, flips, and dispenses the donuts onto your collection tray.
Q: Can I adjust the size and thickness of the donuts?
A: Absolutely. You can swap between the 3 included molds for different diameters, and use the thickness adjustment dial to control the exact amount of batter dropped per piece.
Q: Does a 3000W machine require special wiring?
A: While 3000W is highly efficient, please ensure your electrical outlet and breaker are rated to handle a continuous high-amp draw. We strongly recommend a dedicated commercial circuit with a proper ground wire connected before use.
