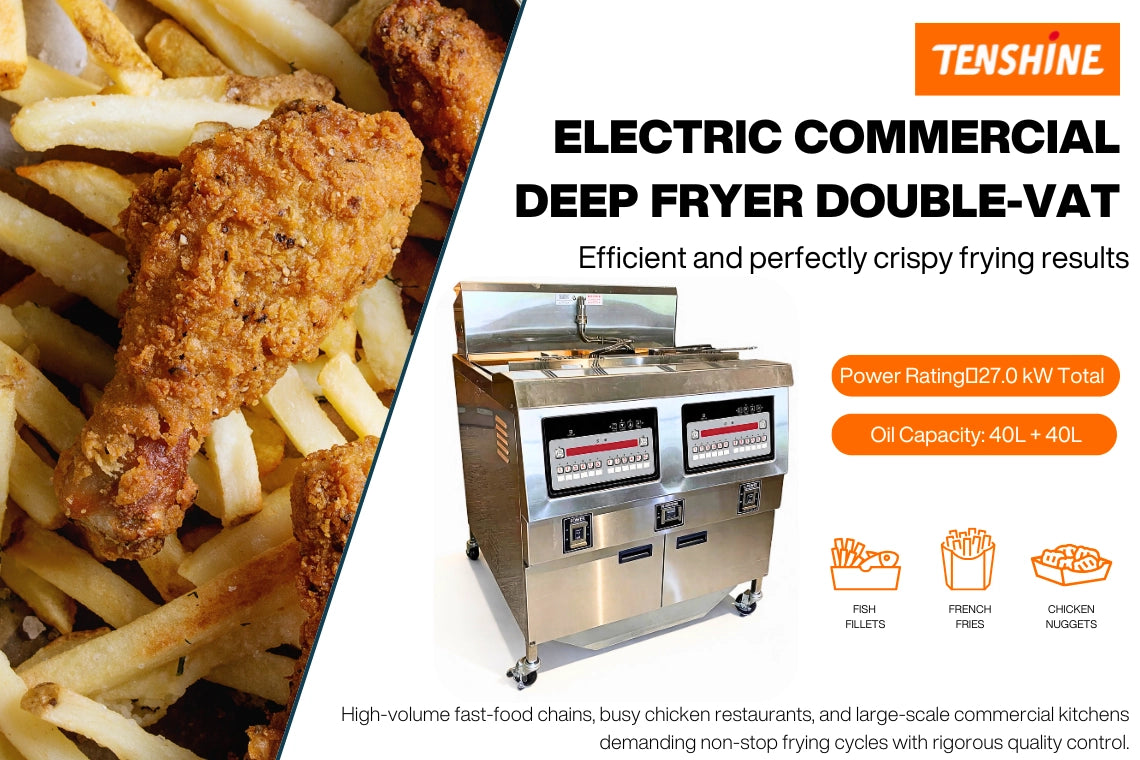

Redefine your kitchen’s output efficiency with the Tenshine TS-EF322. Engineered specifically for high-volume commercial fast-food operations, this heavy-duty dual vat open fryer delivers flawless, continuous recovery times, industrial reliability, and unmatched cost-reduction dynamics to replace overpriced western brand names seamlessly.
🎯 At a Glance: Core Capabilities
- Best for: High-volume fast-food chains, busy chicken restaurants, and large-scale commercial kitchens demanding non-stop frying cycles with rigorous quality control.
- Core Function: High-capacity, multi-product open frying powered by a smart LCD microcomputer processor.
- Power Output: Industrial 27 kW total heating capacity (13.5 kW + 13.5 kW split power grids) for rapid thermal recovery.
🚀 Core Performance & Profitability
- Independent Vat Control & Zero Flavor Transfer: Outfitted with two completely isolated 40L + 40L (Total 80 Liters / 21.1 Gallons / 176 lbs) oil vats. Run entirely different menus side-by-side with localized microcomputer temperature zones, ensuring absolute Zero Flavor Transfer between crisp fries and heavy seafood.
- Heavy Surface Electrical Heating Unit Assembly: Flat, ultra-durable submerged electric elements minimize thermal lag. The system monitors temperature drops instantly and injects massive energy directly into the oil zone, maintaining a golden crust and preventing soggy food.
🛡️ Smart Operation & Labor Savings
- Bottom Built-in Oil Filtration Pump: Features an integrated automated oil filtration subsystem. By utilizing standard oil filtering bags wrapped over the high-vacuum screen, you can rapidly dump, cycle, and clear micro-residuals mid-shift. This extends cooking oil longevity by over 50%, slashing food service operating costs instantly.
- 12-Product Programmable Microcomputer Board: Supports up to 12 distinct product recipes with precision timers, cooking codes, and advanced load compensation grades. Achieve absolute culinary consistency via automated zero-skill operation configurations.
- Smart Idle & Melt Modes: Automated Melt Mode handles liquid or solid shortening step-by-step to prevent grease scorching. The programmable Idle Mode drops oil to holding temperatures during off-peak windows, yielding massive electrical utility savings.

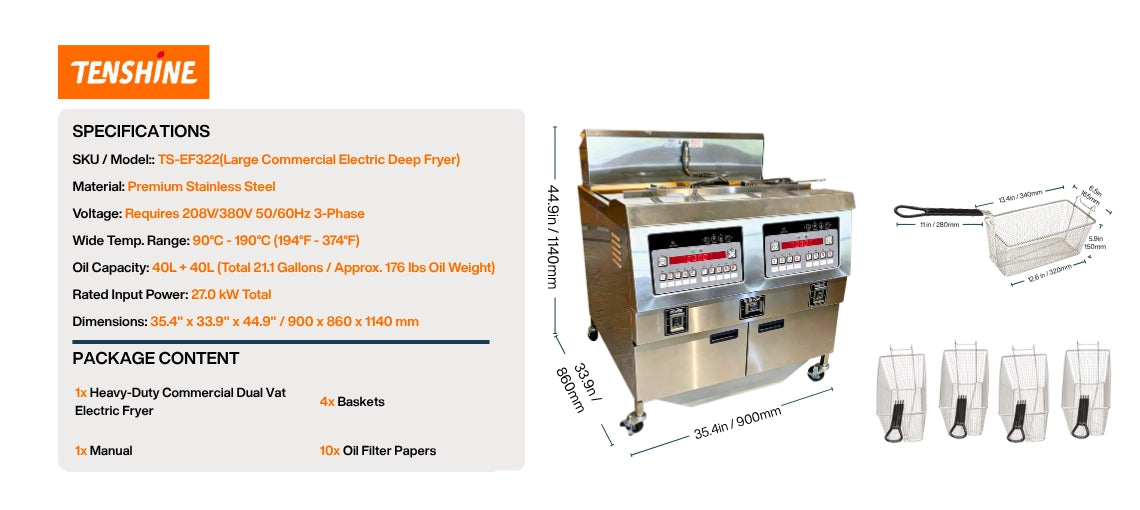

📊 Technical Specifications (Quick Reference)
- SKU Item: TS-EF322 (Premium B2B Heavy-Duty Grade)
- Product Dimensions (W x D x H): 35.4" x 33.9" x 44.9" / 900 x 860 x 1140 mm
- Shipping Dimensions (W x D x H): 34.7" x 37.4" x 46.5" / 882 x 949 x 1180 mm
- Net Weight: 418.9 lbs / 190 kg
- Nominal Voltage Options: ~3N380V-415V 50/60Hz (Global Standard) / 208V-240V 60Hz 3-Phase (US/CA Standard)
- Power Rating: 27.0 kW Total (13.5 kW + 13.5 kW Dual independent systems)
- Oil Capacity Range: 40L + 40L (Total 80 Liters / 21.1 Gallons / Approx. 176 lbs Oil Weight)
- Temperature Control Window: Room Temperature to 200°C / 392°F (Equipped with high-limit manual reset safety switches)
- Waterproof Protection: IPX4 Rated Common Grade Splash-proof Engineering
- Timer Capabilities: Supports 1-basket or 2-basket independent timers simultaneously per vat
⚠️ IMPORTANT: Electrical Requirement
CRITICAL SAFETY WARNING: The Tenshine TS-EF322 is an industrial, high-voltage 3-Phase commercial machine. It CANNOT be connected to standard single-phase residential wall outlets. It must be hardwired directly into a heavy-duty Air Break Switch tailored to match the 27kW power load by a licensed commercial electrician. Verify your kitchen’s power supply infrastructure (Voltage and Phase compatibility) prior to completing checkout.
📦 What's Included?
- 1x Tenshine TS-EF322 Heavy-Duty Commercial Dual Vat Electric Fryer
- 4x Premium Nickel-Plated Wire Fry Baskets with Heavy Heat-Insulated Safety Handles
- 1x Bottom-Integrated Heavy-Duty Oil Pump & Filtration Sump Unit
- 2x Heavy-Gauge Stainless Steel Oil Vat Cover Lids
- 1x Comprehensive HTML-Indexed Instruction Manual & Maintenance Blueprint
- 12-Month B2B Factory Warranty & Lifetime Engineering Parts Support
❓ Frequently Asked Questions (Q&A)
Q: How does the TS-EF322 ensure zero flavor transfer between vats?
A: The fryer features true Independent Vat Control with completely isolated physical oil dividers. Since the oil and heating element loops do not mix, you can fry delicate batters in one side and high-odor proteins in the other without any taste contamination.
Q: Can I run solid fat or shortening blocks in this commercial electric deep fryer?
A: Yes. The microcomputer controller is equipped with a dedicated Smart Melt Mode. Selecting this option ensures the electric components pulse gently, liquefying solid oils safely without burning the shortening or tripping the temperature safety sensors.
Q: How does the built-in filtration lock help restaurant operators?
A: The automated filtration lock prevents staff from running unauthorized frying cycles when the oil wear threshold is reached. It mandates a quick oil purification cycle, instantly ensuring premium food quality and extending your operational ROI by preventing premature oil disposal.
